128 64 TN STN FSTN COB Alphanumeric LCD Display Module
12864 LCD Module feature
Jxl-12864-9D is a graphic dot matrix liquid crystal display module , which is mainly driven by row(NT7107C / NT7108C),
column driver (NT7107C / NT7108C) and 128×64 full dot matrix LCD.
Main technical parameters and performance:
1. power supply (VDD) : 5.0V/ 3.0V / 3.3V
2. working current: about 1.3mA (no backlight 4, no negative pressure) 4mA (no backlight, with negative pressure)
bottom backlight current is less than 200mA (5.6Ω current limit
Resistance)
3. display content: 128×64 dot matrix
4. Operating temperature :-20℃ ~ +70℃, storage temperature :-30℃ ~ +80℃
5. Seven instructions
6. with CPU interface using 8-bit data bus parallel input and
output and 6 control lines
7. DUTY :1/64
Product Details
Name | 128 64 TN STN FSTN COB Alphanumeric LCD Display Module |
Display Content | 128*64 DOTS |
Operating Voltage | 5V |
Driving Method | According to your request |
Viewing Angle | 6 o'clock |
Front Polarizer | Transmissive, Adhesive |
Rear Polarizer | Reflective, Adhesive |
View Area | 59.0x32.0 mm |
Outside Dimensions | 74.9x54.6x9.0 mm |
Voltage Driving | Dynamic or static |
Connector | 20 Pin or according to your request |
Operate Temperature | -20℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
IC | NT7107C / NT7108C |
Drive Method | 1/64Duty, 1/9 Bias, VOP 10.5V |
System Design | Lcd module related system software and hardware design accepted |
Warranty | 12 Month free, payed warranty lifttime |
Backlight | Yellow - Green LED backlight |
LCD Module Type | Analyser Module |
Sample Lead Time | 3-7 working days |
Customize Lead Time | 15-30 working days |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
Cetification | ISO, SGS, CE, Rohs |
Packaging & Delivery
Lead Time
Quantity(Pieces) | 1 - 15 | 16 - 100 | >100 |
Est. Time(days) | 7 | 15 | To be negotiated |
Product Application
Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry
FAQ
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products
are shipped with 100% inspection.
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials
and a small amount of finished goods. Small batch delivery needs
2-3 week, mass delivery takes 3-4 weeks.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product
related information and test reports.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the
warranty period, our company is free to repair, the warranty
period, or the damage caused by improper use is not within the
scope of free maintenance. As long as it is our products, we can
provide technical support services.
Q:The LCD screen can be exported directly? what certification could
provide?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging, small and medium size use knife card
isolation packaging, large size screens are used in aircraft box
packaging, all packages are protected by outer box and strapping to
ensure the safety of material transportation.
Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and
English.
Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the
minimum purchase quantity constraint.Mold fee for all kinds of
products are not the same, the general principle is: LCD mold fee
category: TN was low,STN was high.
Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.

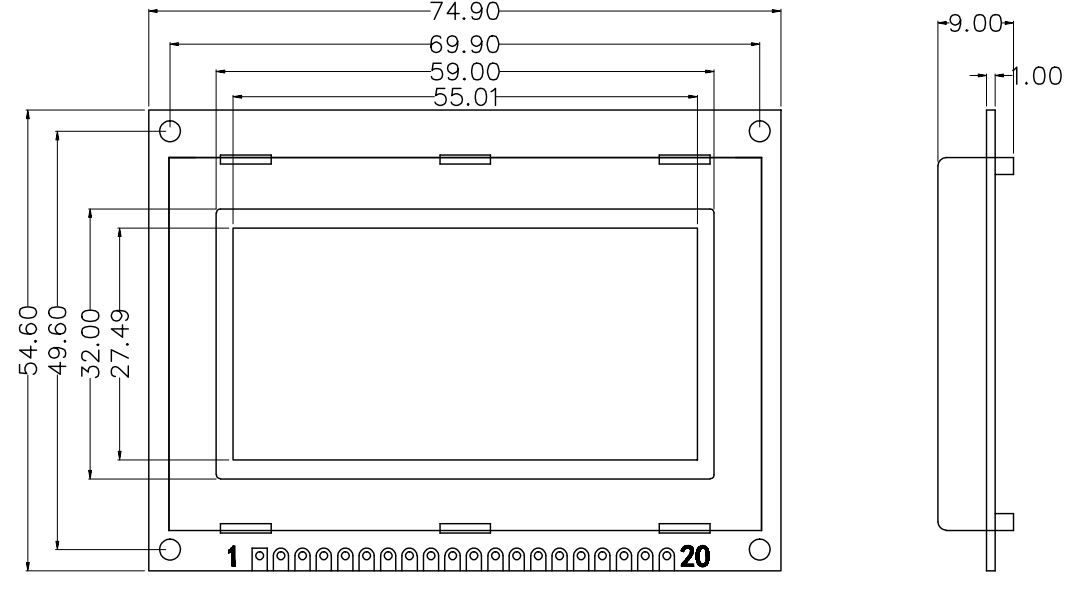

Product drawing
|
