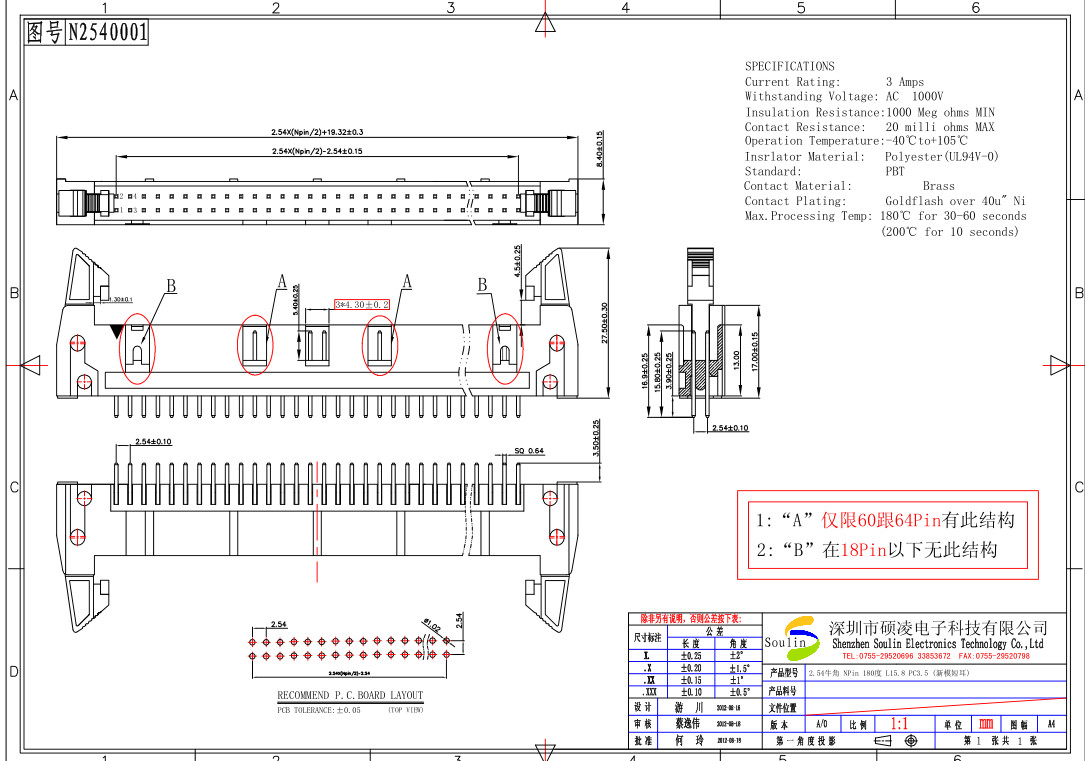

2.54mm Pitch Right Angle Pin Header Gold Plated Dual Row PC3.3

2.54mm Pitch Right Angle Pin Header Gold Plated Dual Row PC3.3

• Y-shaped terminal: it has two contacts with the pin, but the terminal is 0.64mm thick. The pin can be lengthened and the rubber core can be overlaid to realize the secondary heightening of the pin.U-shaped terminal: There are 3 contact points with the row pin, the contact point is on the top of the product, the contact is stable to avoid transient break in the process of signal transmission. U-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is on the top of the product, the contact is stable, avoid transient during signal transmission, prevent tin from leaking into the terminal.
  O-type terminal: there are three contact points with the row pin, the contact point is in the center of the product, the contact is stable to prevent transient interruption during signal transmission.
  O-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is in the center of the product, the contact is stable to prevent the signal transmission transient, prevent tin leakage into the terminal.
• High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
  High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
  The color of insulating plastic can be divided into black, white, blue, natural color and so on.
  Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
  Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.

Shenzhen Soulin Eletronics Technology Co.,Ltd.establish in 2009,is a high -tech enterprise which specializes in the manufacturing and marketing of pin header,female header ,box header,SATA connector,BTOB connector,cable,RJ45,DIN41612,and aviation connector.Since the establish of the company,we have been and remain committed to becoming the industry leader for connectors.

The factory with area of 6000 square meter and has about the total number of employees 200 people and own 32 precision mold processing equipment,35 set high-speed precision punch,110sets of automated assembly machines.

All of products compliant “ROHS” and “REACH”,and also we can offer OEM manufacturing services and can meet customer demands with punctual delivery and perfect,We are looking forward to setting up business partnership with customer worldwide.

1) Your inquiry will be replied within 12 hours.
2) We provide OEM, ODM service, the details of the product can be made as your requirement.
3) Excellent before service and after service.

4) Factory and trade integration,18 years export experience

5) One-stop shopping

Shenzhen Soulin Electronics Technology Co., Ltd. was established in September 2009

Currently, the main products are pin header, female header, box header, aviation connector, board to board connector, SATA connector, DIN41612 connector, RJ45 and other precision connectors.

The factory with area of 6000 square and about the total number of employees 200 people and owns 32 precision mold processing equipment,35 sets high-speed precision punch,110 sets of automated assembly machines.

These products are mainly applied to vehicle monitoring, instruments and apparatus, LED display screen, Computer motherboards,Internet of Things, new energy, mobile storage and other fields.

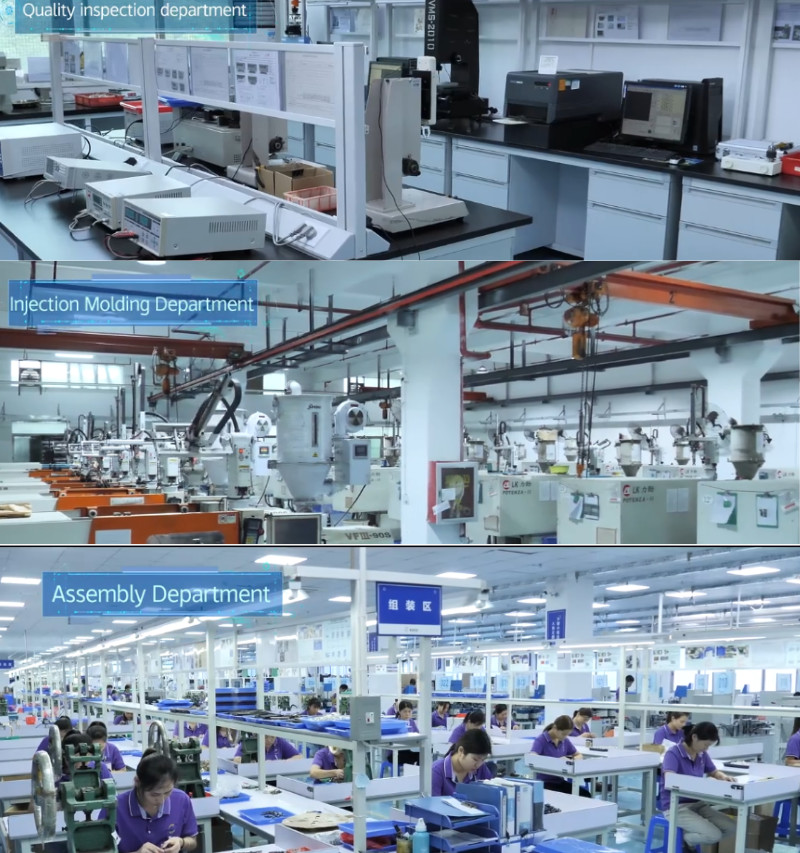

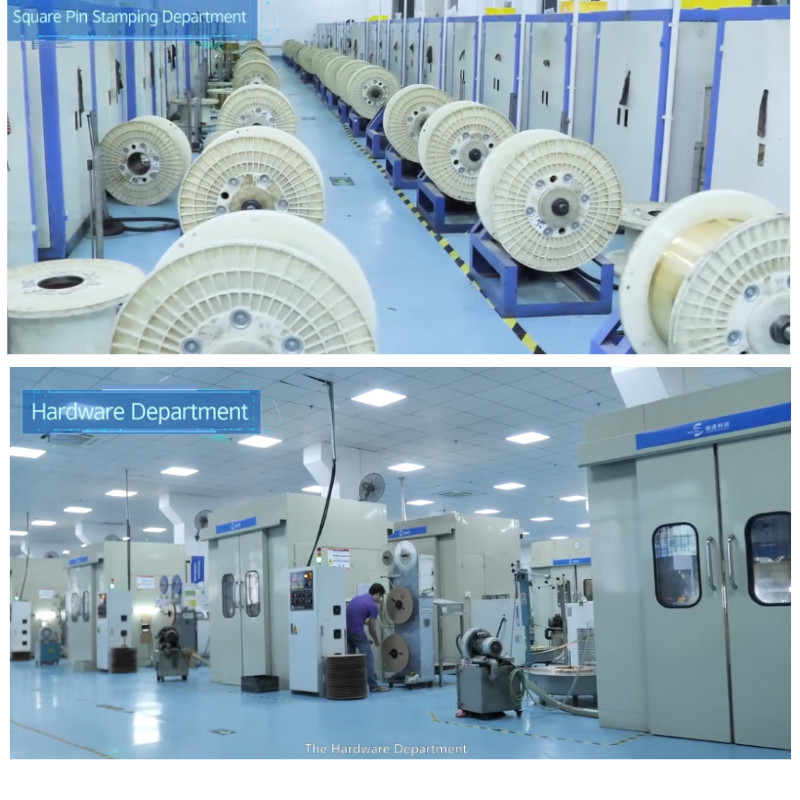

Soulin company realizes the integrated business model of developing, manufacturing, selling and serving connectors.The Hardware Department, Injection Molding Department, Assembly Department and Square Pin Stamping Department are set up in succession.

All of products compliant“ROHS”and“REACH”,and also we can offer OEM manufacturing services and can meet customer’ demands with punctual delivery and perfect service.

Soulin company has established a long-term cooperative relationship with many domestic and foreign famous enterprises and sold products in Asia, Europe and America.

We are looking forward to setting up business partnerships with customers worldwide.

.
