3 Phase AC Alternator Generator High Standard 200KVA 160KW

Categories	Diesel Engine Water Pump
Brand Name:	Kingway Power
Model Number:	KAI150
Certification:	CE,ISO,ROHS
Place of Origin:	China
MOQ:	5 Sets
Price:	3680.00 -4930.00 USD
Payment Terms:	L/C, T/T
Supply Ability:	6000 UNITS PER YEAR
Delivery Time:	15 Working Days
Packaging Details:	Wooden Carton
Product:	AC Alternator
Warranty:	12 Months/1000 Working Hours
Colour:	Customerized
Frequency:	50HZ/60HZ
Volage:	230V/400V

Contact Now

Add to Cart

Company Info.

Qingdao Kingway Industry Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

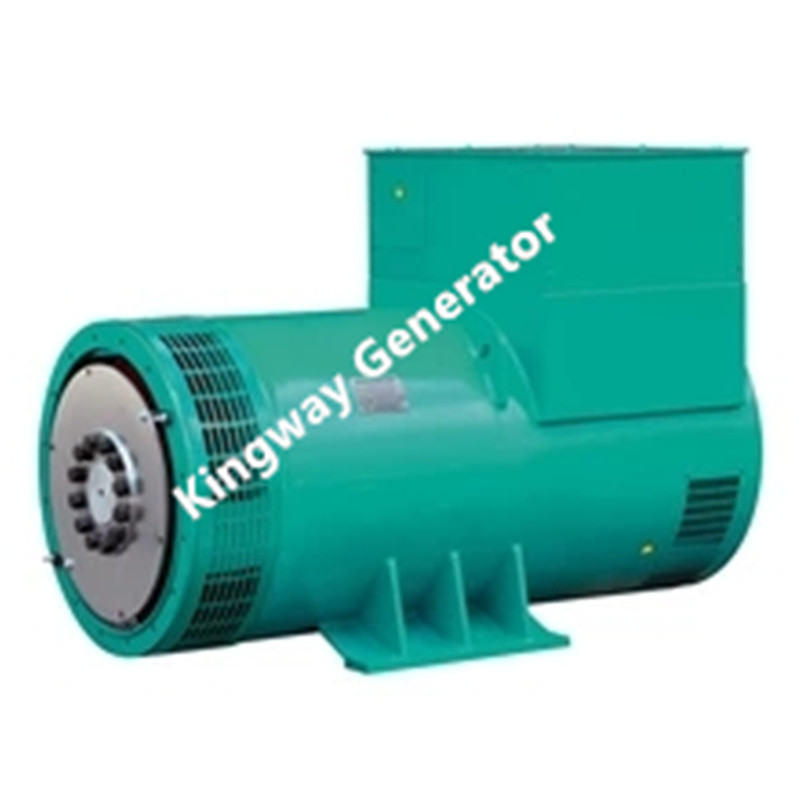

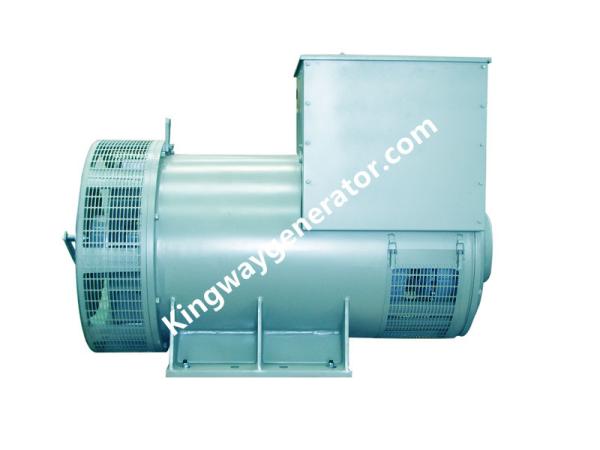

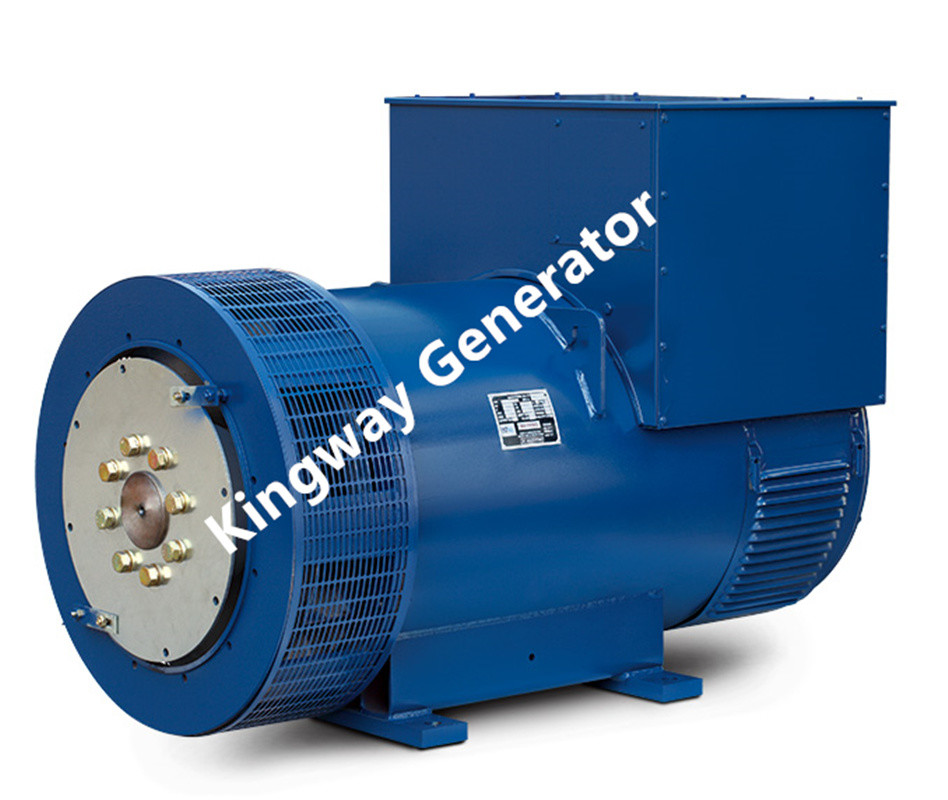

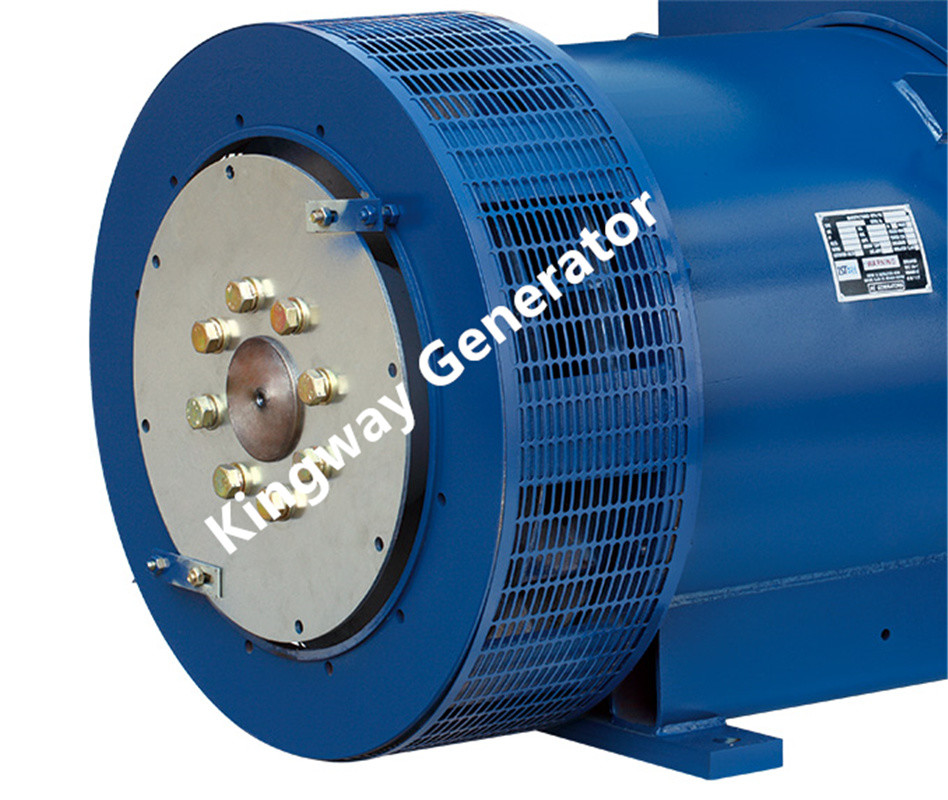

3 Phase AC Alternator Generator High Standard 200KVA 160KW

AC Alternator Generator 3 Phase 200KVA 160KW

All Series Three Brushless Synchroous Alternator are adopted Stamford alternators technology and according to the standards of GB755,BS 500, IEC60034,VDE0530, CSA C22.2 100, NEMA MG122, etc. Its reliable operation,good electrical performance can reach up to the international advanced level.

All alternatorsbefore will be balanced dynamically in accordance with ISO 1940 and NFC 51-112 standards.

Protection class.IP23

Insulation Class H

Rated Voltage: 400V

Three Phase ,Four Wire

Adjusting rate of stable voltage ≤±1%

Transient state voltage≤ -15%~+20%

Wave aberration rate of voltage THD ≤±3%

Telephone harmony wave factor THF ≤2%

Telephone effective factor TIF≤50

Voltage range depends on the costumer’s request.

Genset Model	Characteristic	Prime power		Prime Standby		Insulation Class	THF	Protection class
		Prime power		Prime Standby
		KVA (40°C)	KW (40°C)	KVA (27°C)	KW (27°C)
KAI8	Brushless Synchroous	8.125	6.5	9	7.2	H	≤2%	IP23
KAI11	Brushless Synchroous	11	8.8	12.25	9.8	H	≤2%	IP23
KAI13	Brushless Synchroous	13.5	10.8	14.875	11.9	H	≤2%	IP23
KAI16	Brushless Synchroous	16	12.8	17.625	14.1	H	≤2%	IP23
KAI22	Brushless Synchroous	22.5	18	24.75	19.8	H	≤2%	IP23
KAI27	Brushless Synchroous	27.5	22	30.625	24.5	H	≤2%	IP23
KAI31	Brushless Synchroous	31.25	25	34.375	27.5	H	≤2%	IP23
KAI37	Brushless Synchroous	37.5	30	41.25	33	H	≤2%	IP23
KAI42	Brushless Synchroous	42.5	34	46.25	37	H	≤2%	IP23
KAI50	Brushless Synchroous	50	40	55	44	H	≤2%	IP23
KAI62	Brushless Synchroous	62.5	50	68.75	55	H	≤2%	IP23
KAI72	Brushless Synchroous	72.5	58	80	64	H	≤2%	IP23
KAI87	Brushless Synchroous	87.5	70	93.75	75	H	≤2%	IP23
KAI100	Brushless Synchroous	100	80	110	88	H	≤2%	IP23
KAI120	Brushless Synchroous	120	96	132.5	106	H	≤2%	IP23
KAI140	Brushless Synchroous	140	112	153.75	123	H	≤2%	IP23
KAI160	Brushless Synchroous	160	128	175	140	H	≤2%	IP23
KAI180	Brushless Synchroous	180	144	197.5	158	H	≤2%	IP23
KAI200	Brushless Synchroous	200	160	220	176	H	≤2%	IP23
KAI225	Brushless Synchroous	225	180	247.5	198	H	≤2%	IP23
KAI250	Brushless Synchroous	250	200	275	220	H	≤2%	IP23
KAI250	Brushless Synchroous	250	200	275	220	H	≤2%	IP23
KAI300	Brushless Synchroous	300	240	330	264	H	≤2%	IP23
KAI312	Brushless Synchroous	312.5	250	350	280	H	≤2%	IP23
KAI350	Brushless Synchroous	350	280	385	308	H	≤2%	IP23
KAI375	Brushless Synchroous	375	300	412.5	330	H	≤2%	IP23
KAI400	Brushless Synchroous	400	320	440	352	H	≤2%	IP23
KAI450	Brushless Synchroous	450	360	495	396	H	≤2%	IP23
KAI500	Brushless Synchroous	500	400	550	440	H	≤2%	IP23
KAI562	Brushless Synchroous	562.5	450	618.75	495	H	≤2%	IP23
KAI625	Brushless Synchroous	625	500	687.5	550	H	≤2%	IP23
KAI687	Brushless Synchroous	687.5	550	756.25	605	H	≤2%	IP23
KAI750	Brushless Synchroous	750	600	825	660	H	≤2%	IP23
KAI800	Brushless Synchroous	800	640	880	704	H	≤2%	IP23
KAI910	Brushless Synchroous	910	728	1000	800	H	≤2%	IP23
KAI1000	Brushless Synchroous	1000	800	1100	880	H	≤2%	IP23
KAI1130	Brushless Synchroous	1130	904	1243.75	995	H	≤2%	IP23
KAI1250	Brushless Synchroous	1250	1000	1375	1100	H	≤2%	IP23
KAI1400	Brushless Synchroous	1400	1120	1537.5	1230	H	≤2%	IP23
KAI1550	Brushless Synchroous	1550	1240	1700	1360	H	≤2%	IP23
KAI1650	Brushless Synchroous	1650	1320	1815	1452	H	≤2%	IP23
KAI1900	Brushless Synchroous	1900	1520	2090	1672	H	≤2%	IP23
KAI2080	Brushless Synchroous	2080	1664	2297.5	1838	H	≤2%	IP23
KAI2125	Brushless Synchroous	2125	1700	2337.5	1870	H	≤2%	IP23
KAI2500	Brushless Synchroous	2500	2000	2750	2200	H	≤2%	IP23
