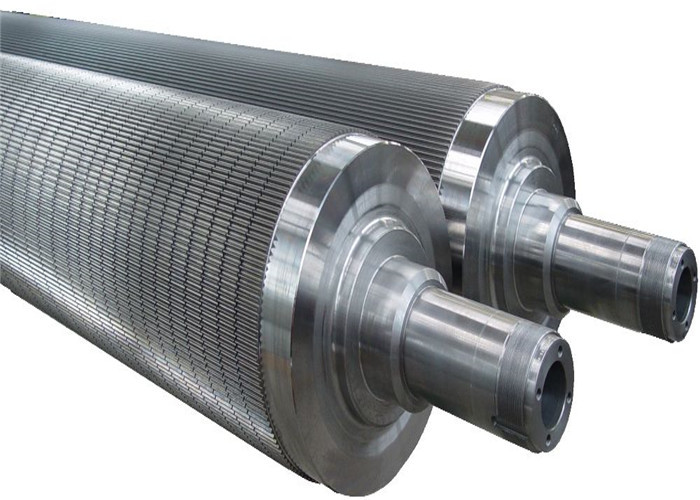

Alloy Steel B Flute Corrugated Roller 600mm Diameter

Corrugating Roll for Bhs Fosber Fuli Isowa Agnati Brand Corrugator Lines

Chrome Plated Corrugating Rollers, as the most important part of corrugated cardboard production line, whose abrasion resistance and service life is the main technical index for measuring quality and economical efficiency, directly influences the economic benefits of manufacturer for corrugated cardboard Chrome corrugating roll is mainly suitable for medium speed single facers and manual Corrugation plants

Corrugated Rollers Specification

1. Material :Special 48CrMo alloy steel fine forgings

2. Hardness:>HRC58 Quenching layer depth :5-7mm

3. Coating Thickness 0.06and 0.07mm Tungsten Coating Thickness

4. Surface plating: Micro hardness HV900-1250

5. Combination hardness >75MPa

6. Visible optical porosity <1%

7. The optimization of economic type design

8. High-speed Corrugating Rolls :twice fine grinding

Corrugating Roll Flute Type

Features

1. Employing advanced heat treatment and plating technology, as well as high quality 48CrMo alloy steel forge piece,we can offer a wide range of rolls featuring high precision ,high hardness and long life.

2. It adopts computer assistant design,and sets allitems parameters scientifically, soitinsures the quality specification economical,reliable and reasonablel

3. It has big CNC corrugated roll precision grinding machine group,and they all work for corrugated roll.l

4. Computer control to grind the concave rolll

5. Select the good quality of 48CrMo, 50CrMo alloy steel forge pieceAdopt Germany advanced process to quenchin super ficialinter mediate frequency,hardened layer>7mm,hardness>HRC58-60(HS73-80),the hardness uniform with no soft zone.l

6. We adopt the most advanced high-efficiency Atotech.Heef-25micro-cracks functional chrome plating technology and equipment,to be morerigid,smoother,more light,more wear-resistant surface hard chrome plating,electroplating longer life than ordinary more than 25 percent.

7. We provide repair service for old corrugated roll at anytime

HUATAO LOVER LTD was born in 2001, always with the philosophy of "respecting the heaven and loving the people, striving for perfection" as the main line of development, and continuously involved in different industries. After more than ten years of development into a group enterprise, the products now involve the following industries:

Paper Making Machine & Spare Parts: Toilet Paper Machine,Tissue machine,Kraft Paper Making Machine，Head Box，Paper Machine Rolls, Dewatering Elements, Dryer Cylinder and Supply all spare parts used for Pulp and paper industry.

Stock Preparation & Pulp Spare Parts： Breaking and Pulping equipment,Screen And Cleaning Equipment,Floatating-Dispersering-Bleaching equipment,Agitator and Pulp pump ect.

Paper making Machine Spare Part - Wire Section renovation, Press Section renovation,Dryer section renovation,Paper machine Cloth,Head Box,Wiper Blade,Press roll and stone rolls,Section roll and Cyliner mould,Calender,Rewinder,Reeler

Geosynthetics series- Geomembrane Pond Liner,Geotextile,Woven Geotextile,Geocell,Geogird,Geomat,Geonet,Geosynthetic Clay Liner,Geocomposite Drain Layer.

Industry Felts series - PBO felts, Kevlar Felt, Polyester Felt,Roller cover,Cement fiber felt,Filter Felt

Industry Belts series - Corrugator belts,battery pasting belts,Polyester conveyor belt,Spin belt,Filter belts

Industry Fabrics series - Paper machine cloth,Filter fabric,Screen printing mesh,Polyester mesh,

Vibrating Screen Mesh used for minng industry

       Our team of senior engineers can organize the best commodity source for you. By supplying the best Chinese products, Professional design and responsible attitude on service,we devote to creating our unique brand "HUATAO" in global. Since the establishment, " HUATAO " products have been supplied to more than 60 countries and set up the agencies. And our products and service have been recognized and trusted by the end users all the way. We believe, once we have the cooperation, "HUATAO" will be your most reliable partners in your road to success. Because of trust , business will be simple.
