Max Dia. 145MM Contitech Air Spring FD 40-10 Continental Double Convolutions Bellow No. 2B 40-10

Categories Contitech Air Spring
Brand Name: AIRSUSTECH
Model Number: 2B4060
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 3 pieces
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 2B4060
Contitech: FD 40-10
Brand: Guomat or Neutral
Damping Force Direction: Bidirectional
N.W.: 1.0 Kg
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Air Inlet: G1/8
Top Plate Hole/Stud: M8
Bottom Plate Hole/Stud: M8
Top Plate Dia: 90 mm
Bottom Plate Dia: 90 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 16*16*15 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Part: Air Spring
Position: Front and Rear
Type: Gas-Filled
Spring Type: Air Spring
Spring Material: Rubber and Iron
Structure: Double Convolutions Cylinder
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Max Dia. 145MM Contitech Air Spring FD 40-10 Continental Double Convolutions Bellow No. 2B 40-10

Contitech Air Spring FD 40-10 Continental Double Convolutions Bellow No. 2B 40-10 MAX Dia. 145MM


OEM Original Equipment Manufacturer:


Contitech Part NumberFD 40-10Contitech Part NumberFD 40-10 CI G1/4 M8
Contitech Part NumberFD 40 10Contitech Part NumberFD 40 10 CI G1/4 M8
Contitech Part NumberFD 4010Contitech Part NumberFD 4010 CI G1/4 M8
Contitech Part NumberFD4010Contitech Part NumberFD4010 CI G1/4 M8
Continental Part NumberFD 40-10Continental Part NumberFD 40-10 CI G1/4 M8
Continental Part NumberFD 40 10Continental Part NumberFD 40 10 CI G1/4 M8
Continental Part NumberFD 4010Continental Part NumberFD 4010 CI G1/4 M8
Continental Part NumberFD4010Continental Part NumberFD4010 CI G1/4 M8

2B4060 Technical SIZE:


Nut / Blind Nut


Top plate screw (nut) teeth: 1 x M8X1.25


The screw center distance of the top cover plate: 20 mm
Screw (nut) teeth of the bottom cover plate: 2 x M8X1.25
Screw center distance of bottom cover plate: 20 mm


Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/8

Screw Center Distance Between Gas Hole and Nut : single


Cover Plate

Top Cover Plate Diameter: 90 mm

Bottom Cover Plate Diameter: 90 mm


Rubber Bellows

Rubber Bellows MAX Diameter: 145 mm

Rubber Bellows Natural Diameter : 125 mm

The Working Stroke : MIN 70 mm to MAX 170 mm

Maximum Height : 170 mm

Minimum Height :70mm

Stroke Height : 100mm


Bumper block / Buffer block

Without Bumper Block


Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


Technical data
Min. pressure0 bar
Return force to min. height≤ 120 N
Overall weight with clamped plates0.9 kg

2B4060 Vibration isolation - dynamic characteristic values
Design height H: recommended 90mm, minimum 70mm
Pressure p [bar]345678Vol. V[l]
Force (Load) [KN]1.72.32.83.43.84.40.5
Spring rate [N/cm]7609901220148016101820
Natural frequency [Hz]3.53.33.33.33.23.2

2B4060 Pneumatic application - static characteristic values
Force F [kN]
Pressure p [bar]345678Vol. V[l]
Height H [mm] 602.63.54.35.26.16.90.3
702.33.23.94.75.46.20.4
802.12.83.54.24.95.30.5
901.72.22.83.43.94.40.5
1001.21.622.533.40.6


Air springs have successfully solved actuating problems, at a reduced cost,in many applications including:

1.Commercial washing machine
2.Hopper tank
3.Packaging machine vibration
4.The compressor
5.The console
6.Vibrating screen
7.Blower and motor
8.Control panel
9.Shock isolation
10.Shielding and flexible coupling
11.Vacuum pump
12.Expansion chuck
13.Supporting roller CAM
14.The sun tracker

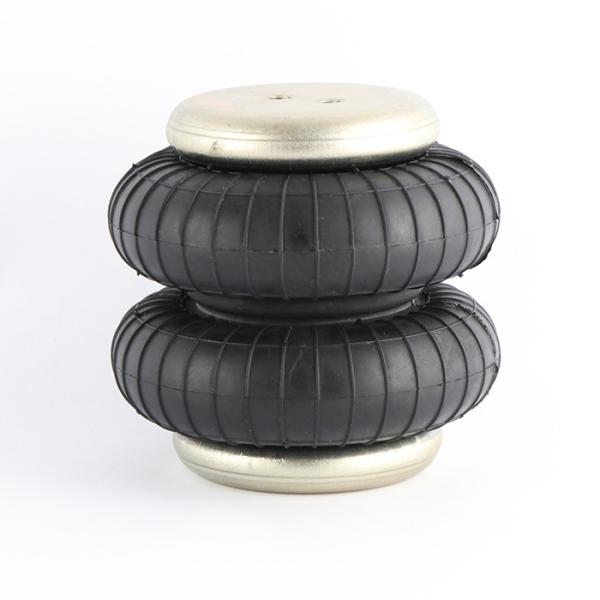

Details pictures of air spring 2B4060:
