Categories | Scaffold Screw Jack |
---|---|
Brand Name: | MF |
Model Number: | Screw Steel Jack Level Leg |
Certification: | ISO |
Place of Origin: | China |
MOQ: | 500 pcs |
Price: | ~ |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 50000pcs/mouth |
Delivery Time: | 20~30days |
Packaging Details: | / |
Product: | Screw Steel Jack Level Leg |
Main components: | Threaded bar, cast nut and base pate |
Screw rod: | Seamless/welded steel tube |
Rod type: | Hollow tube |
Surface treatment: | HDG/galvanized/painted |
Usage: | Construction |
Material: | Q235/Q245 |
Color: | Silver/Customized |
Type: | Heavy duty |
Company Info. |
Zhengzhou Duorui enterprise Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

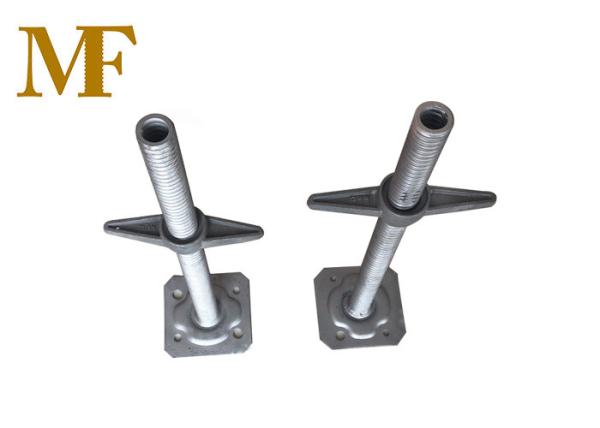

Adjustable Scaffolding Screw Steel Jack Level Leg
Ringlock scaffold leveling prop screw jack is consists with base plate, high strength thread rod and jack nut, to support and stabilize horizontal beam in slab construction. Our scaffold leveling prop screw jack is compatible with scaffold systems like ringlock scaffold system, cuplock scaffold system, kwikstage scaffold system, frame scaffold system, etc. Our jack bases are in compliance with EN74 standard, loading capacity is from 150KN to 200KN.
Specification of Adjustable Scaffolding Screw Steel Jack Level Leg:
Name | Adjustable Scaffolding Screw Steel Jack Level Leg |
Material | Q235,Q345 Steel |
Surface treatment | Painted ,electro-galvanized,hot dip galvanized |
Type | Solid/hollow/U-head |
Diameter | 30mm,32mm,34mm,38mm,42mm,48mm,etc |
Length | 400mm,500mm,600mm or as request |
Base Plate | 120*120*4mm,140*140*5mm,150*150*5mm etc |
U Jack | 120*100*45*4mm,150*120*50*4.5mm,150*150*50*6mm,120*120*30*3mm |
Package | In pallet or as request |
Why choose us:
1. Only qualified raw material with certification is acceptable.
2. quality check is operated by hand.
3. free samples are always available.
4. Once quality problems occur, just sent us pics for confirmation,
once confirmed, money or goods will be given as compensation.
![]() |
