| Categories | Relay |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | Kampa |
| Model Number: | JD1914 |
| Theory: | Electromagnetic Relay |
| Usage: | PCB |
| Size: | Miniature |
| Protect Feature: | Sealed |
| Contact Load: | High Power |
| Product name: | JD1914 40A 24V relay |
| Type: | pcb relay 14v |
| Contact type: | 1a,1c |
| Contact overload: | 40A |
| Max. switching power: | 560W |
| Max. switching voltage: | 40VDC |
| Insulation resistance: | 100mΩ (500VDC) |
| temperature: | -55°c - 85°c |
| Contact resistance: | 100mΩ (1A 24VDC) |
| Contact Form: | 1A , 1C |
| Packaging Details: | 380pcs/CTN/16KG/440*310*345 |
| Port: | Ningbo/Shanghai |
| Supply Ability: | 100000 Piece/Pieces per Month |
| MOQ: | 50 Pieces |
| Price: | $0.30 - $1.00/Pieces |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |

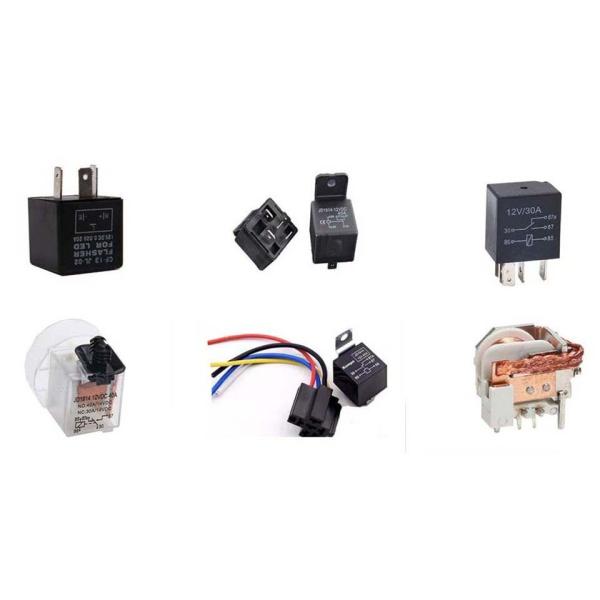

JD1914 40a 12v 5 pin automotive auto electrical relay
2.Description
Contact data
| Contact arrangement | 1A , 1C |
| Contact resistance | 100mΩ (1A 24VDC) |
| Contact material | AgCdO, AgSnO |
| Contact rating(Res.load) | 40A 14VDC NO 40A 14VDC/NC 30A 14VDC |
| Max. switching power | 560W |
| Max. switching voltage | 40VDC |
| Max. switching current | 40A |
| Mechanical endurance | 1*107OPS |
| Electrical endurance | 1*105OPS |
| Insulation resistance | 100mΩ (500VDC) |
| Dielectric strength between coil&contacts | 750VAC 1min |
| Dielectric strength between open contacts | 500VAC 1min |
| Operate time(at nomi.volt) | 10ms max. |
| Release time(at nomi.volt) | 10ms max. |
| Shock resistance functional | 98m/s2 |
| Shock resistance destructive | 980m/s2 |
| Vibration resistance | 10Hz - 55Hz 1.5mm DA |
| Humidity | 98% RH, 40°c |
| Ambient temperature | -55°c - 85°c |
| Termination | QC, PCB Terminal |
| Unit weight | Water-proof cover: approx 55g, Other: approx 35g |
| Construction | Plastic sealed, Dust protected |
Coil data
| Rate voltage VDC | Pick-up Voltage VDC | Drop-out Voltage VDC | Coil Resistance *(1±10%)Ω | Parallel resistance *(1±5%)Ω | Equivalent resistance Ω | Power consumption W | |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | 680 | 79.5 | 1.6 |
| Water-proof cover | 12 | 7.2 | 1.2 | 90 | --- | --- | 1.8 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | 2700 | 317.6 | 1.6 |
| Water-proof cover | 24 | 14.4 | 2.4 | 360 | --- | --- | 1.8 |
| Other | 12 | 7.8 | 1.2 | 85 | 680 | --- | 1.7 |
| Other | 12 | 7.8 | 1.2 | 85 | --- | 75.6 | 1.9 |
| Other | 24 | 15.6 | 2.4 | 350 | 2700 | --- | 1.6 |
| Other | 24 | 15.6 | 2.4 | 350 | --- | 309.8 | 1.9 |
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.
A.Punctual delivery time:
We carry out your order into our well-organized production
schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is
shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary
Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
|
