Manual Excavator Quick Hitch For Hitachi EX230 EX260

Categories Excavator Quick Hitch
Brand Name: Huitong
Model Number: HT014
CertifiPCion: ISO9001
Place of Origin: Guangzhou,China
MOQ: 1 Pcs
Price: $300-800/pcs
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per mounth
Delivery Time: 8-16 workdays
Packaging Details: standard package
Condition: New
Type: Hydraulic quick hitch
Moving type: Crawler Excavator
Product name: excavator quick hitch
Material: Q345B+NM400
suitable model: Hitchi Excavator
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Manual Excavator Quick Hitch For Hitachi EX230 EX260

Hydraulic Excavator Quick Hitch / Excavator Manual Quick Hitch For Hitachi

Production Description

Huitong Excavator Bucket Hydraulic Quick Hitch

Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
Huitong quick hitch use the safety device of the hydraulic control check valve to ensure safety, convenient operation and improve work efficiency.

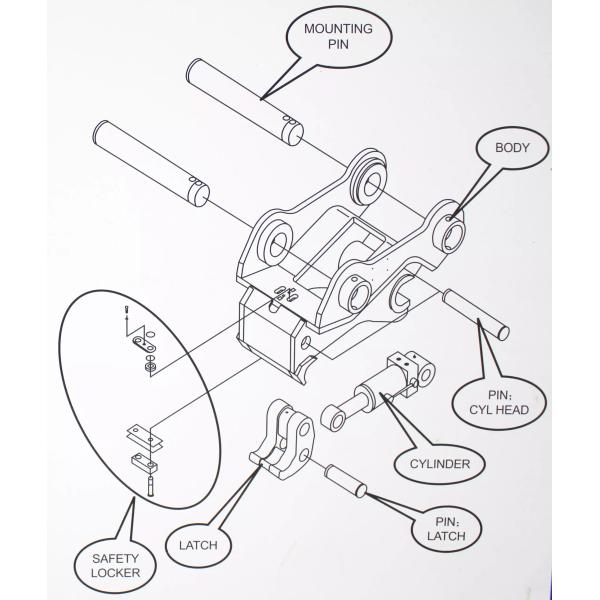

The quick connector is a kind of structural parts, which is composed of main support, movable clamp block, hydraulic cylinder, pin shaft and other parts.

Production Details

PCegory
HT -mini
HT -02
HT -04
HT -06
HT -08
HT-08S
HT -10
HT -17
Weight(kg)
30-40
50-75
80-110
170-210
350-390
370-410
410-520
550-750
Working pressure(kgf/cm²)
30-400
30-400
30-400
30-400
30-400
30-400
30-400
30-400
Necessary flow(l)
10-20
10-20
10-20
10-20
10-20
10-20
10-20
10-20
Excavator(ton)
1-4
4-6
6-8
12-16
18-25
25-26
26-30
30-40

Description
Material
Parts
Configuration &Capability
Applicable Excavator
1.Hydraulic Quick Coupler
Q345B
Hardened steel
Cylinder,Snap ring,90°butt joint,check volve
Standard plate thickness like the original factory, domestic high quality plate
FOR 19-60T excavator. Such as: PC 320 325 330 345 PC200 220 300 350 450 600 ZX 200 300 400 450 R225 265 305 335 375 SK200 210 250
350 460 EC210 240 290 360 700 etc
2.Double locking Hydraulic Quick Coupler
Cylinder,Snap ring,90°butt joint,check volve,Rear safety hook
Thicker plate, domestic high quality plate which can extend the using time
FOR 25-90T excavator. Such as: PC200, PC210, PC240; PC320, PC325; HYUNDAI RX200, RX250; DOOSAN DH200, DH210, DH250 etc
3.Mechanical Quick Coupler
Cylinder,Snap ring,Lead screw pin,Security Block
Adaptor plate and side plate are made of Chinese material NM400, domestic material high quality tooth plate, so that it can resist
grinding and bending
FOR 1.5-25T excavator. Such as: Hitachi ZX200, ZX210, ZX250; KOBELCO SK200, SK210, SK250; KOMATSU etc
