| Categories | 25mm DC Gear Motor |
|---|---|
| Brand Name: | ASLONG |
| Model Number: | JGA25-370DG |
| Certification: | CE,CC |
| Place of Origin: | CHINA |
| MOQ: | 2 Pieces |
| Price: | Negotiation |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Pieces Per Day |
| Delivery Time: | 2-5 work days |
| Packaging Details: | on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32 |
| Type: | Dual Shaft Dc Gear Motor |
| Commutation: | Brush |
| Speed(rpm): | 12-1363rpm |
| Construction: | Permanent Magnet |
| Protect feature: | Totally Enclosed |
| Efficiency: | IE 2 |
| Torque: | Requests |
| Application: | Automatic Product,toy |
| Keywords: | 1.5v Mini micro dc motor 5v |
| PROFUCE NAME: | 25mm DC 6v12v geared motor miniature straight double gear drive high torque |
Miniature Straight Dual Shaft Dc Gear Motor 6v 12v 25mm 2000rpm
25mm DC 6v12v geared motor miniature straight double gear drive high torque
| JGA25-370 Micro Dc Gear Motor Description: |
Now ,you can get our this 25mm dc gear motor with magnetic encoder(JGA25-370B),and other related 25mm gearbox motors as following:
 |  |  |  |
| JGA25-370B | JGA25-310 | JGA25-385 | JGA25-340 |
 |  |  |  |
| JGA25-2418 | JGA25-2430 | JGA25-370TC | JGA25-370DG |
| Specification: | ||
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 12-24VDC | -Multi-speed optional | -Electric Curtain |
| -Speed: 17-2386rpm | -Low noise | -Electric Valve |
| -Torque :0.37-28.4Kg.cm | -CW/CCW Running | -Safe and Locking |
| -Shaft: D shape (Motor shaft shape and length can be customized) | -Adjustable speed | -Robot |
| -Construction:Permanent Magnet | -Small Size | -Home Appliance, |
| -Commutation:Brushed DC motor | -High Torque | -Precise equipment |
 | Dual gearboxes are better than high-cost planetary gearboxes High energy efficiency, low cost. More in line with application requirements High speed motor High-speed motor. large load torque Low noise, long life. to 5000 hours |
 | Unique ingenuity and precision manufacturing Every part Every detail We work hard to perfect Keep improving Just because of professionalism |

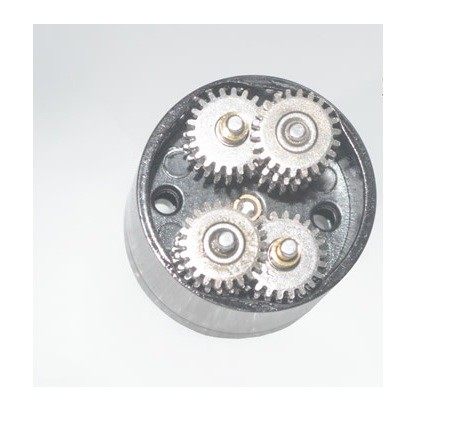

 | New double gear transmission design Upgrade dual gear transmission box Can replace planetary gearbox High strength, strong rigidity and large load torque long life |

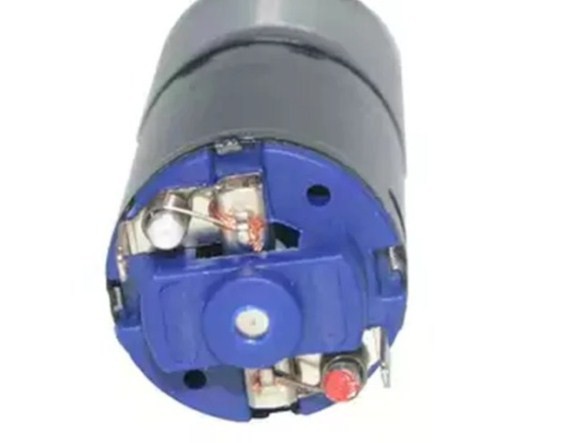

 | Connection instructions The ones with red dots are Power positive 6V 12v 24V any choice 6y 12V 24V are available in different specifications and are directly operated by the manufacturer, and can be customized in batches with drawings. |
Datasheet:
| Gear Ratio | Rated Voltage | No Load | Rated Load | Stall Extrapolation | L Size | Weight | ||||
| Speed | Current | Torque | Speed | Current | Torque | Current | ||||
| V | RPM | A | Kg.cm | RPM | A | Kg.cm | A | MM | G | |
| 4.4 | 6 | 2273 | 0.3 | 0.1 | 1864 | 1.6 | 0.6 | 8.5 | 18 | 85 |
| 9.6 | 6 | 1042 | 0.3 | 0.3 | 854 | 1.6 | 1.2 | 8.5 | 17.5 | |
| 21.3 | 6 | 469 | 0.3 | 0.6 | 385 | 1.6 | 2.8 | 8.5 | 19 | 87 |
| 35.5 | 6 | 282 | 0.3 | 1.1 | 231 | 1.6 | 4.6 | 8.5 | 21 | 92 |
| 46.8 | 6 | 214 | 0.3 | 1.4 | 175 | 1.6 | 6.1 | 8.5 | ||
| 78 | 6 | 128 | 0.3 | 2.3 | 105 | 1.6 | 10.1 | 8.5 | 23 | 95 |
| 103 | 6 | 97 | 0.3 | 3.1 | 80 | 1.6 | 13.4 | 8.5 | ||
| 171 | 6 | 58 | 0.3 | 5.1 | 48 | 1.6 | 22.2 | 8.5 | 25 | 97 |
| 226 | 6 | 44 | 0.3 | 6.8 | 36 | 1.6 | 25 | 8.5 | ||
| 378 | 6 | 26 | 0.3 | 11.3 | 22 | 1.6 | 8.5 | 27 | 100 | |
| 500 | 6 | 20 | 0.3 | 15 | 16 | 1.6 | 8.5 | |||
| 4.4 | 12 | 4545 | 0.4 | 0.3 | 3864 | 2.2 | 1.2 | 17 | 18 | 85 |
| 9.6 | 12 | 2083 | 0.4 | 0.6 | 1771 | 2.2 | 2.6 | 17 | 17.5 | |
| 21.3 | 12 | 939 | 0.4 | 1.3 | 798 | 2.2 | 5.8 | 17 | 19 | 87 |
| 35.5 | 12 | 563 | 0.4 | 2.1 | 479 | 2.2 | 9.6 | 17 | 21 | 92 |
| 46.8 | 12 | 427 | 0.4 | 2.8 | 363 | 2.2 | 12.6 | 17 | ||
| 78 | 12 | 256 | 0.4 | 4.7 | 218 | 2.2 | 21.1 | 17 | 23 | 95 |
| 103 | 12 | 194 | 0.4 | 6.2 | 165 | 2.2 | 27.8 | 17 | ||
| 171 | 12 | 117 | 0.4 | 10.3 | 99 | 2.2 | Banning block MAX 25KG | 17 | 25 | 97 |
| 226 | 12 | 88 | 0.4 | 13.6 | 75 | 2.2 | 17 | |||
| 378 | 12 | 53 | 0.4 | 15 | 45 | 2.2 | 17 | 27 | 100 | |
| 500 | 12 | 40 | 0.4 | 34 | 2.2 | 17 | ||||
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North
America(30.00%),Domestic Market(15.00%),Western
Europe(10.00%),Eastern Europe(10.00%),Northern
Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South
America(5.00%),Oceania(5.00%),South
Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total
about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear
Motor
4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in
this industry for over 10 years,we have many experinec to provide
motors according to customer's requirements.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
|
