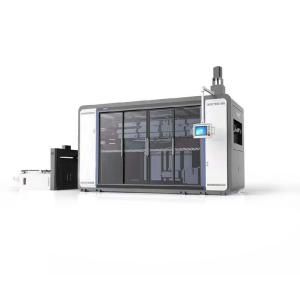

380V 50HZ Biodegradable PLA Plastic Cup Making Machine

Full Automatic PLA Biodegradable Plastic Ice Cream Cup Making Machine

Cup Making Machine Application

Mainly for the production of variety plastic containers ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.

Cup Making Forming Station
1. Standard square tube frame with 100*100, mould is casted steel and upper mould is fixed by nut.
2. Opening and closing mould driven by eccentric gear connecting rod.Driving power by 15KW (Japan Yaskawa) servo motor, American KALK Reducer,main axis use HRB bearings.
3. Plastic Cup Thermoforming Machine Main pneumatic component use SMC(Japan) magnetic.
4. Sheet feeding device with planetary gear reducer motor, 4.4KW Siemens servo controller.
5. Stretching device uses 11KW Siemens servo.
6. Lubrication device is fully automatic.
7. Caterpillars adopt fully enclosed structure, with cooling device and can manually adjust sheet width.
8. Heating system uses China ceramic far-infrared heaters, stainless steel upper and down heating furnace, upper heater with 12 pcs heating pads vertically and 8 pcs heating pads horizontally , down heater with 11 pcs heating pads vertically and 8 pcs heating pads horizontally.(specification of heating pad is 85mm*245mm);Electric furnace push-out system uses 0.55KW worm gear reducer and ball screw, which is more stable and also protect the heater pads.
9. Cup Thermoforming Machine Air filtration uses triplet, blowing cup can adjust airflow.
10. Folding mould is consist of fixed upper plate,flexible mid plate and 4 pillars with surface hard chrome plating 45#.
11. Eccentric is the construction of connecting rod fold mould, with running range ≤ 240mm.
12. Electric heating furnace could be moved horizontally and vertically freely by guide-rail from Hiwin Taiwan.
13. Toping cups is controlled by AirTAC (Taiwan) cylinder.

Waste Edge Winding Device
On-line winding
Reducer with 0.75KW motor (1 pc)

Main Technical Parameter

Electric Control

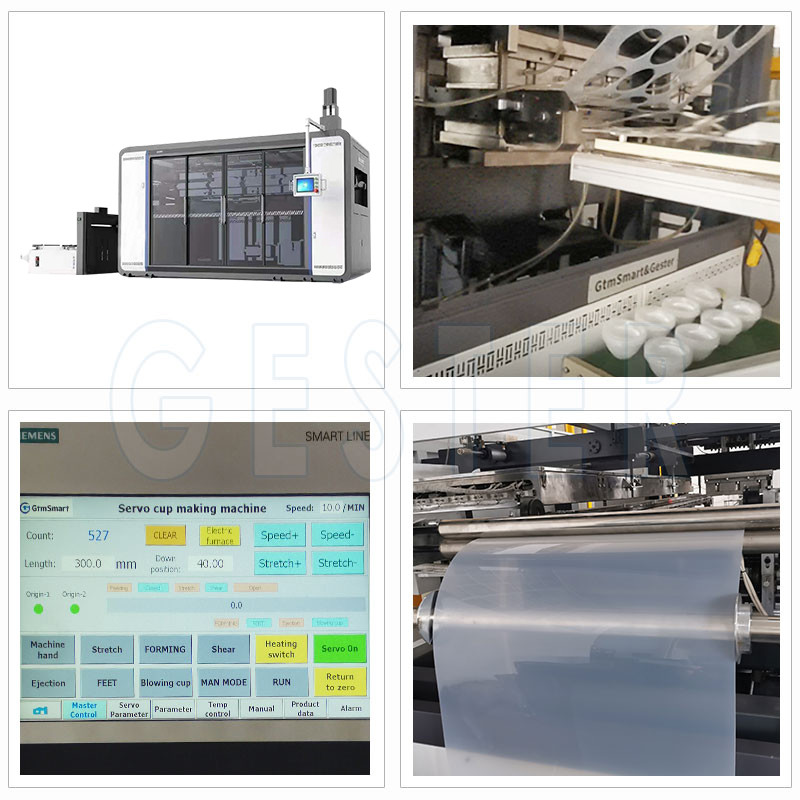

Product Image
