| Categories | Steel Flange |
|---|---|
| Brand Name: | YUHONG |

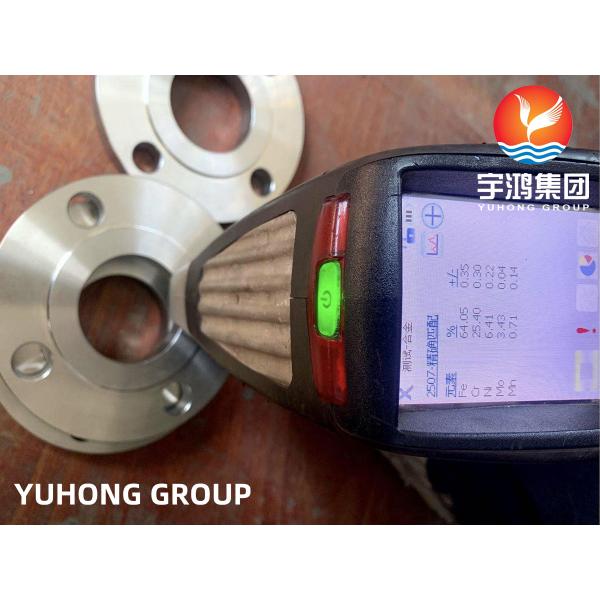

| Model Number: | ASTM A182 S32750 SUPER DUPLEX SORF FLANGE |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | China |
| MOQ: | 1PC |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 pcs per month |
| Delivery Time: | according to quantity |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Standard: | ASTM A182 |
| Steel grade: | S32750/1.4410 |
| Application: | OIL AND GAS REFINING |
| Type: | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Plate Flange |
| Packing: | ply wooden case |
| Pressure: | Class150-2500/ PN6-PN100 |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Overview:
Super duplex flanges are designed utilizing high alloy duplex steel. These flanges have a two-phase structure of austenitic and ferritic microstructure. Designed with a superior concentration of nickel, chromium, and molybdenum, these modules show excellent resistance to corrosion and oxidation across stress-induced systems. These high-strength flanges securely seal a range of piping modules. The versatile flanges show good stability and showcase enhanced resistance to pitting by chlorides in a marine application. The super duplex flanges can be readily welded to different piping modules with the help of standard welding procedures.
Specification:
| Grade | Super Duplex F53 | S32760 |
| Standard | ASTM A182, ASME SA182 |
| Dimensions | ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44 |
| Size | 1/2″NB – 60″NB |
| Class / Pressure Rating | 150 Class, 300 Class, 718 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc. |
| Form | Slip-on Flanges (SORF), Threaded Flanges, Weld Neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges |
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ) |
Chemical Composition:
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
| S32750 | 0.03 max | 1.20 max | 0.035 max | 0.020 max | 0.08 max | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | 0.24-0.32 | 0.50 |
Mechanical Properties:
| Grade | Density g/cm³ | Tensile Strength, min, ksi (MPa) | Yield Strength, min, ksi (MPa) | Elongation in 2 in. or 50mm, min (%) | Hardness | Solutioning Temperature, min, °F(°C) | |
| Rockwell | Brinell/Vickers | ||||||
| S32750 | 7.8 | 116(800) | 80(550) | 15 | 32HRC | 300HBW/300HV | 1880-2060 (1025-1125) |
Applications:
1.Oil and gas industry.
2.Petrochemical industries ( polymerization reactor cycle pumps and pipework)
3.Offshore platforms (heat exchangers, process and service water systems, fire-fighting systems, and injection and ballast water systems)
4.Chemical process industries (heat exchangers and vessels)
5.Desalination plants (high-pressure RO-plant and seawater piping)
6.Fertilizers (Recirculation tanks, sedimentation tanks, phosphate reactor recirculation pumps)
7.Power industry FGD systems
8.Utility & industrial scrubber systems (absorber towers, ducting, piping)
9.Mining/ Extraction ( hot slurry pipework, acid leach mining)
10.Sewage (critically important pipelines)
11.Engineering applications (pressure vessels)
|
