| Brand Name: | Starwinsolar |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

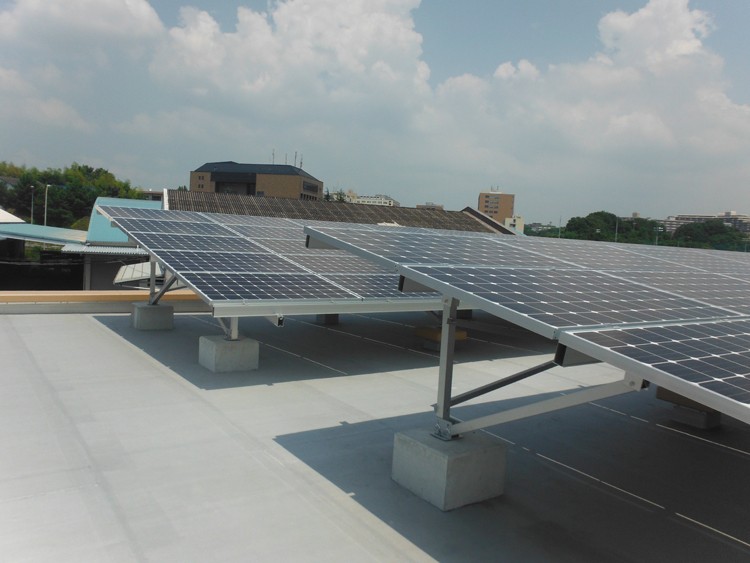

Type of roof : Flat roof
Arrangement of bracket system
solar panels : Frame or frameless
Component arrangement direction: slope10-15 °
Wind resistance 60 m/s
Snow load 1.5 kN/m2
| Type: | Anodized aluminum solar mounting structure for flat rooftop |
| Installation site: | According to your requirements |
| Material: | Aluminum |
| Fasten material: | Aluminum |
| Max Wind Speed: | < 60m/s |
| Max Snow load: | Up to 1.4KN/ Square meters |
| Solar panel type: | Framed or Frameless |
| Panel Orientation: | Horizental or vertical |
| Design Standard: | AS/NZS; DIN1055 |
| Quality warranty: | 12-20 years |
| Duration: | At least 20 years |
| Delivery time: | 7-15 days |
| Package: | cartons or iron pallets |
Lightweight and stable with aluminum material, easy to install
• Non penetration of roof
• Good water proof, corrosion resistance, light and stable, high strength
• Built on the existing roof to save land resources
• Designed according to specific engineering conditions, in line with local building standards
• The bracket is perfectly connected as a whole, with strong integrity
• The bracket components are pre-assembled at the factory, effectively saving labor and time costs on the construction site
• Components include: rails, connectors, rails clamps, middle clamps and end clamps and rear windshield, etc.
• Applicable foundation: flat roof
• Can provide OEM customized design & production according to customer requirements

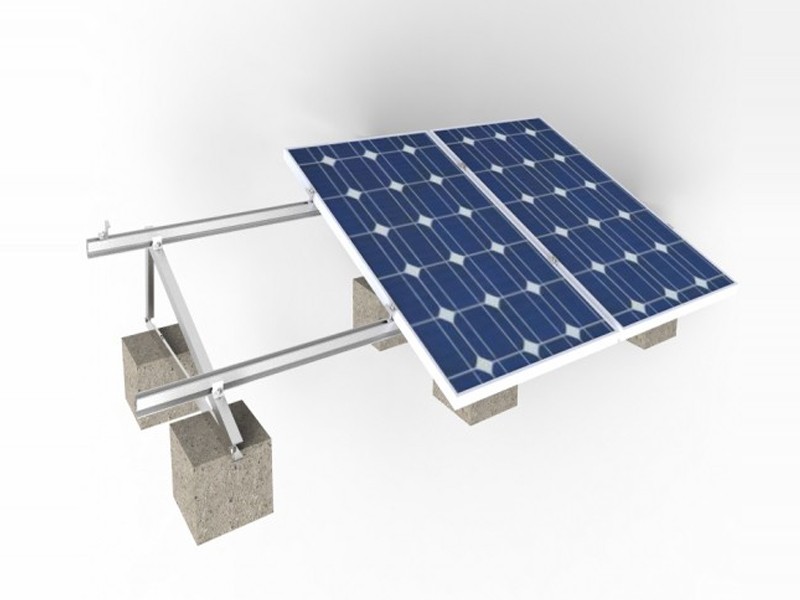

Rooftop solarmounting systems
material : aluminum
treatment: Anodized
wind load: 40m/s
snow load: 14KM /m2

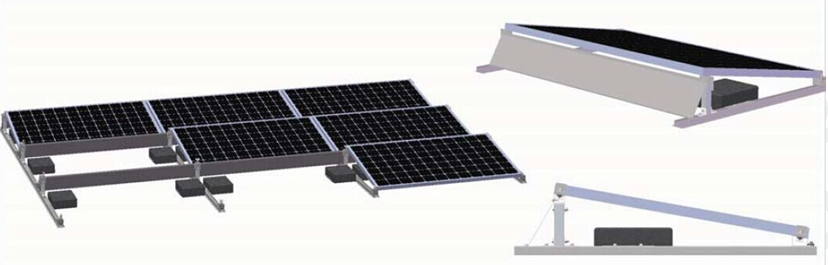

Features of PV Ballast mounting systems
1, high corrosion resistance
2, install easily
3,safety: there's no damage to the roof .

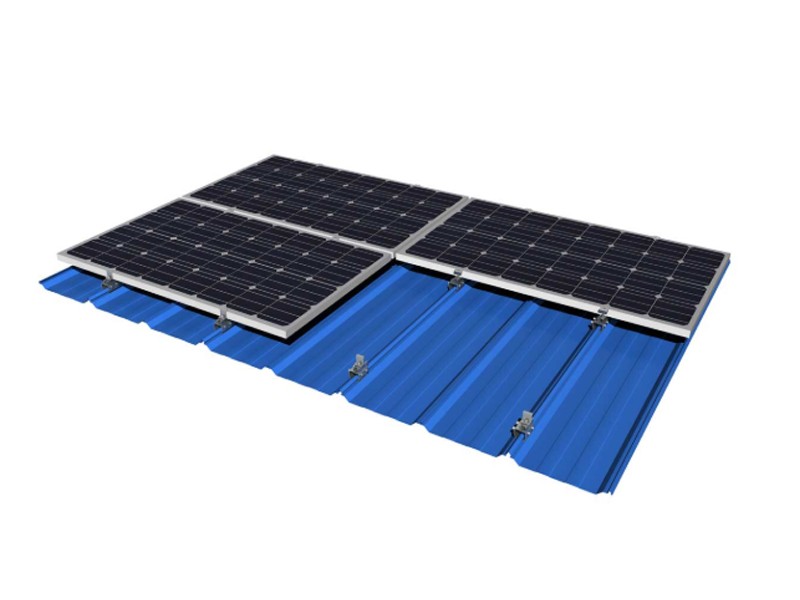

2, Tin Rooftop Solar Mounting Solution
| Name | roof mount racking |
| Material | AL6005-T5 |
| Surface treatment | anodized |
| Types | Can be customized |
| Application | Metal roof mounting |
| Wind Load | Up to 60 m/s |
| Snow Load | 1.6 KN/m2 |
| Modules Layout | According to requirements |

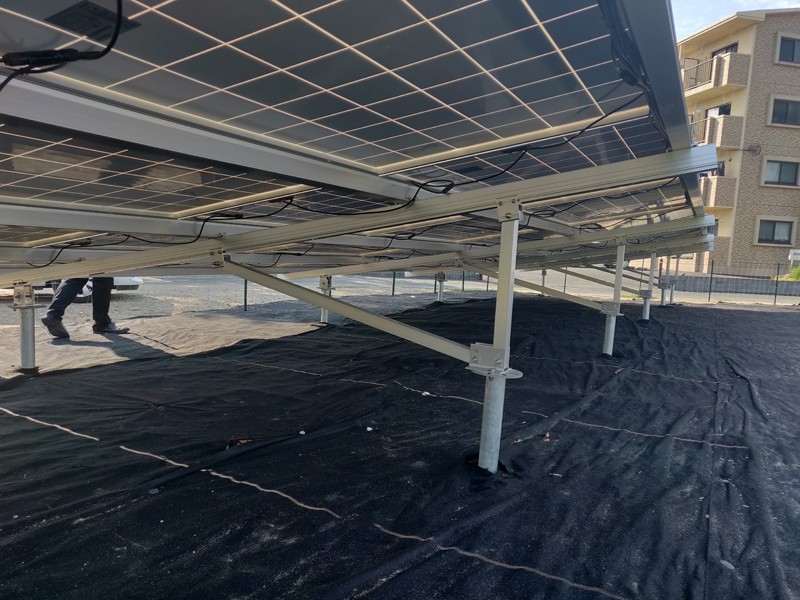

3, A Type Ground Solar Mounting System
ApplicationOpen terrain-ground mount
PV ModulesFramed, Unframed
Wind load<60m/s
Snow load1.4KN/m²
Array LayoutAccording to the actual situation
Module OrientationLandscape , Portrait
Module Inclination0° – 45°
StandardsJIS 8955:2011/DIN1055/ASCE_7-05/AS/NZS117
ColorNatural
Warranty10 years
|
