| Categories | Color Sorter Machine |
|---|---|
| Brand Name: | EFORK |
| Model Number: | CDD10B/CDD15B/CDD20B |
| Certification: | CE/CAS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | us dollar 5600-7900 USD |
| Payment Terms: | T/T, L/C |
| Delivery Time: | 15 |
| Power: | electric |
| Operation manner: | standing type |
| Rated capacity: | 1000kg/1500kg/2000kg |
| Wheel type: | PU |
| Lifting height: | 1600-4500mm |
| Battery type: | 24V210Ah |
| Fork spread: | 210-680 mm |

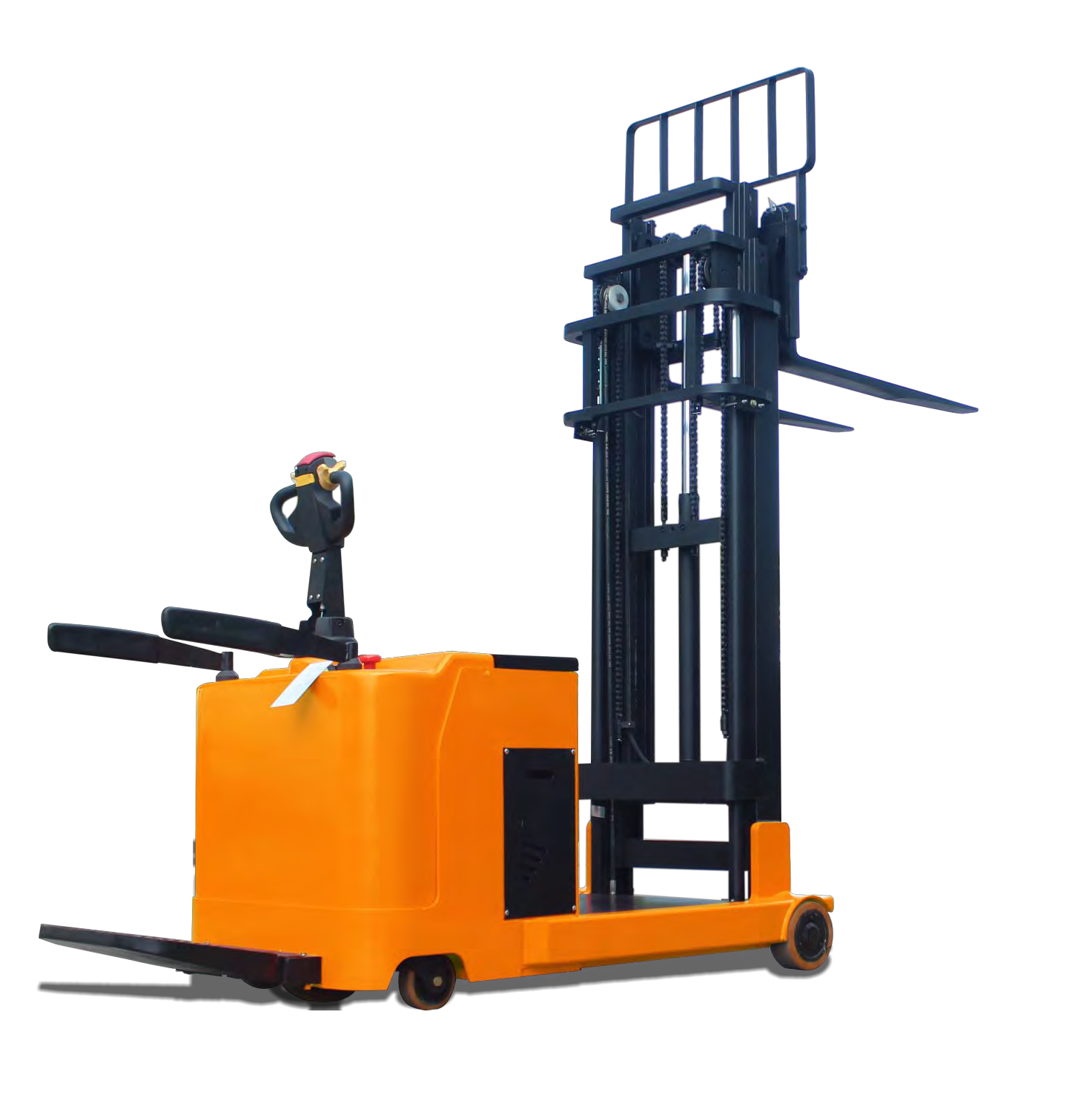

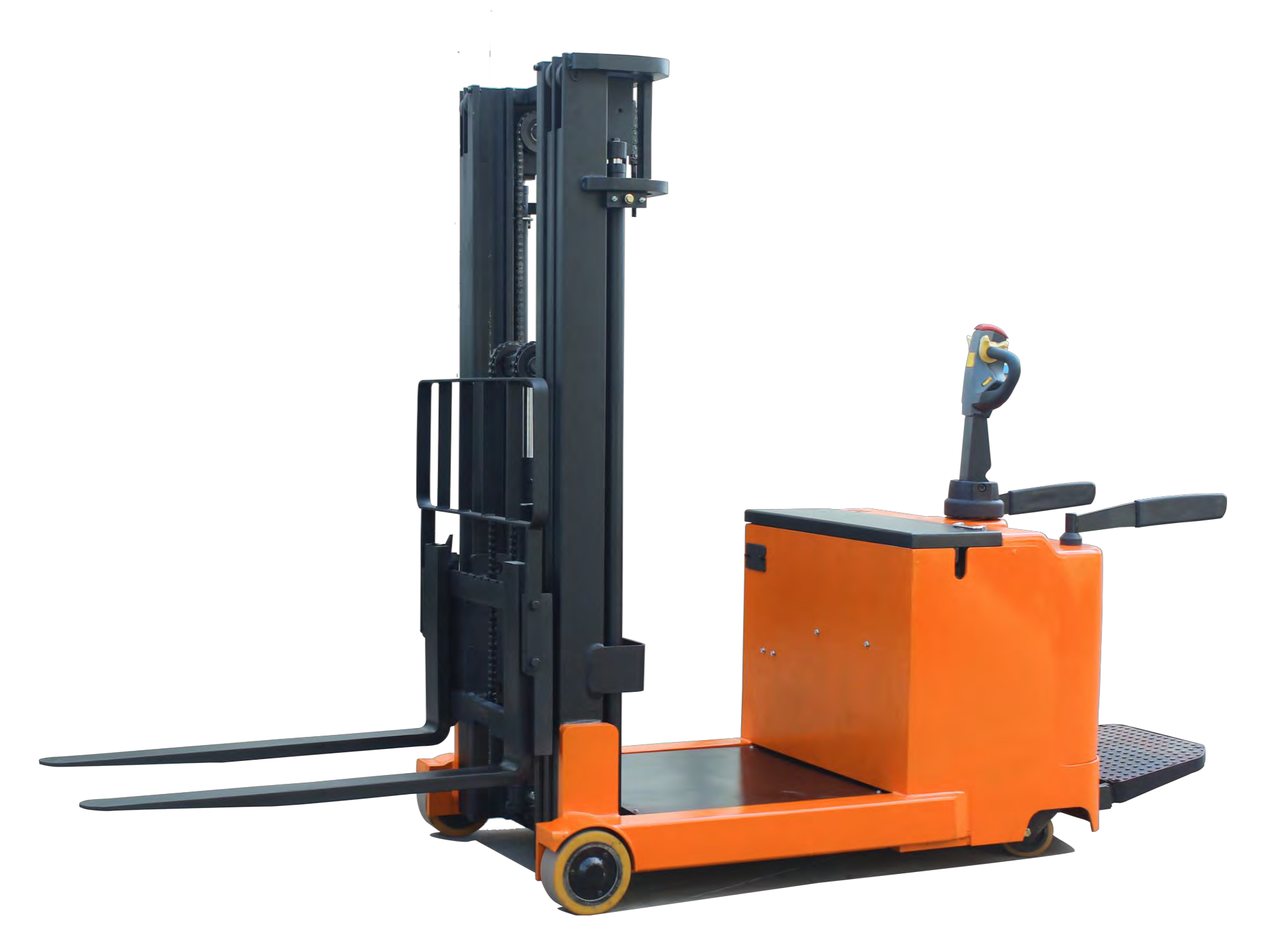

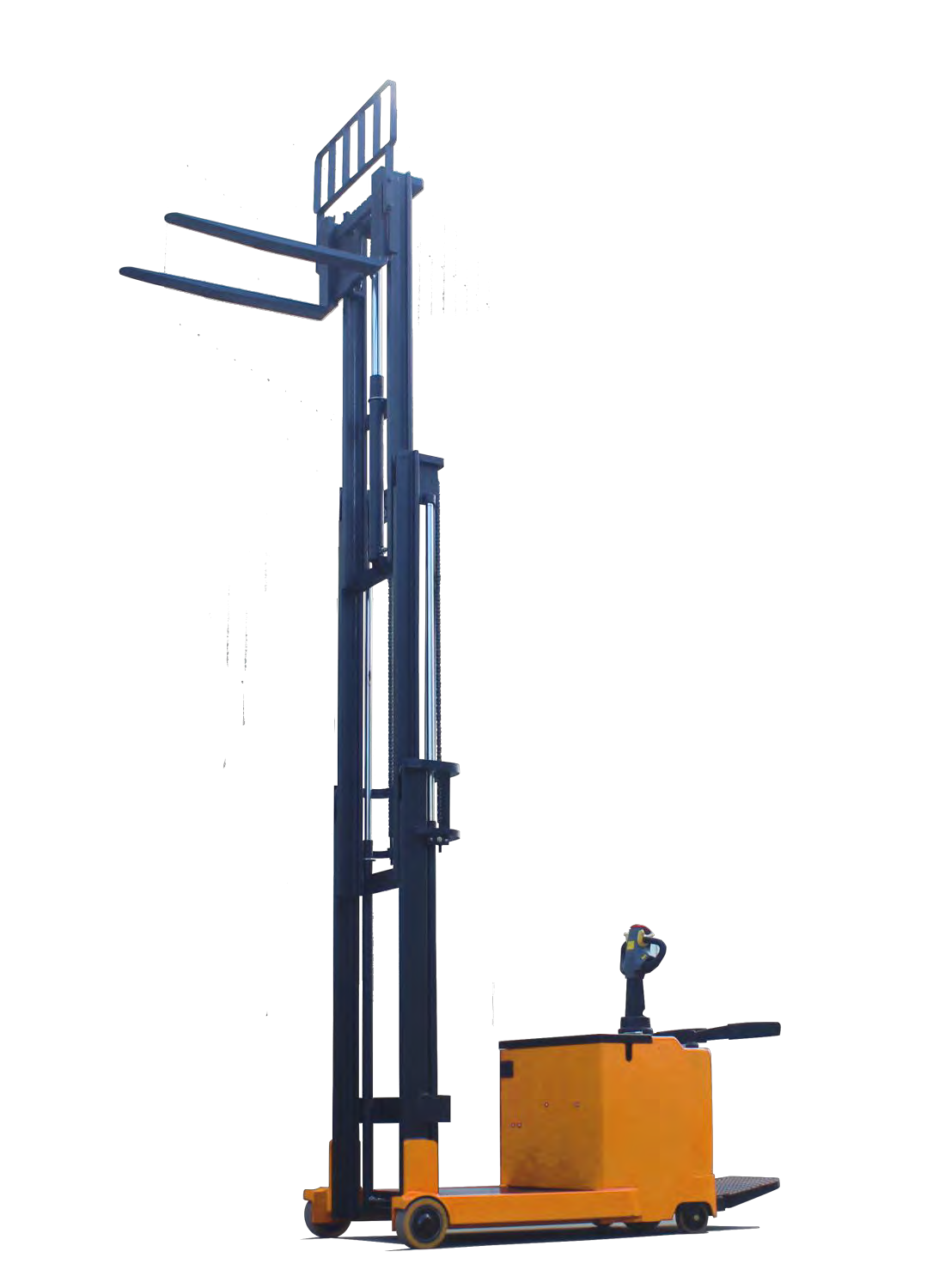

Stand Type Counterbalanced Type Electric Pallet Stacker Pallet Lifter
Stand Type Counterbalanced Type Electric Pallet Stacker
Product discription
| 1.1 | model | CDD10B-25 | CDD15B-25 | CDD20B-25 | |
| 1.2 | power | electric | electric | electric | |
| 1.3 | operation manner | stand-on | stand-on | stand-on | |
| 1.4 | load capacity | Q(kg) | 1000 | 1500 | 2000 |
| 1.5 | load center | C(mm) | 500 | 500 | 500 |
| 1.6 | front overhang | X(mm) | 157 | 157 | 157 |
| 1.7 | wheelbase | Y(mm) | 1335 | 1435 | 1635 |
| 2.1 | overall weight | kg | 1700 | 1775 | 1890 |
| 3.1 | wheel type | Polyurethan | Polyurethan | Polyurethan | |
| 3.2 | front wheel | ∅×w(mm) | φ230*75 | φ230*75 | φ230*75 |
| 3.3 | drive wheel | ∅×w(mm) | φ210*85 | φ210*85 | φ210*85 |
| 3.4 | balance wheel | ∅×w(mm) | φ150*50 | φ150*50 | φ150*50 |
| 3.5 | wheeltread front wheel | b10(mm) | 735 | 735 | 735 |
| 3.6 | wheeltread rear wheel | b11(mm) | 955 | 955 | 955 |
| 4.1 | lowered mast height | h1(mm) | 1840 | 1840 | 1840 |
| 4.2 | lifting height | h3(mm) | 2500 | 2500 | 2500 |
| 4.3 | max.mast height | h4(mm) | 3417 | 3417 | 3417 |
| 4.4 | overall length | L(mm) | 2814 | 2914 | 3114 |
| 4.5 | overall width | b1(mm) | 983 | 983 | 983 |
| 4.6 | fork dimension | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 40/122/1070 |
| 4.7 | fork spread | b5(mm) | 210-680 | 210-680 | 210-680 |
| 4.8 | ground clearance | m2(mm) | 70 | 70 | 70 |
| 4.9 | stack aisle width,pallet 1000×1200 | Ast(mm) | 3080 | 3180 | 3370 |
| 4.10 | min.turning radius | Wa(mm) | 1645 | 1740 | 1940 |
| 5.1 | travel speed (unload/load) | km/h | 5/4 | 5/4 | 5/4 |
| 5.2 | lifting speed (unload/load) | m/s | 0.112/0.095 | 0.112/0.092 | 0.112/0.085 |
| 5.3 | lowering speed (unload/load) | m/s | 0.094/0.110 | 0.094/0.115 | 0.096/0.123 |
| 5.4 | max. gradeability(unload/load) | ％ | 8/5 | 8/5 | 6/4 |
| 5.5 | brake | electromagnetic | electromagnetic | electromagnetic | |
| 6.1 | driving motor power | kw | 1.5 | 1.5 | 2.5 |
| 6.2 | lifting motor power | kw | 2.2 | 2.2 | 2.2 |
| 6.3 | battery type | lead-acid | lead-acid | lead-acid | |
| 6.4 | battery voltage/capacitance | V/Ah | 24V210Ah | 24V210Ah | 24V210Ah |
| 6.5 | charger | V/A | 24V30A | 24V/30A | 24V/30A |
| 7.1 | drive control mode | AC | AC | AC |
sealing, stable and reliable lifting and lowering.
4.Anti slip braking function, to prevent the car from sliding when it is out of
Detailed images
Packing&delivery
Certifications
Our service
FAQ
1. How to place an order?
A: Tell us your detail requirements by email or on Trademanager or
Skype:efcc3288667 ,We will send you our offer in 24 hours.
If ok, please send us your purchase order, or you can ask us to
send you a proforma invoice for your order.
2. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.
3. Are you Factory?
A: Yes.
4. Can you send the machine to my factory in other city to load the
container?
A: Yes, please tell us the detail address, we can arrange to send
your factory in time.
5. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.
6. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give
reasonable discounts.
7. How to place an order?
A: Tell us your detail requirements(Load Capacity? Lifting height
etc.) by email or on Trademanager or Skype, please send us
your purchase order,or you can ask us to send you a proforma
invoice for your order.
8. How could I pay them?
A: We accept Western Union (for parts order, order value less than
$2500); T/T(bank transfer,order value at least $2000); L/C
(Irrevocable LC at sight,order value at least $10000 )
9. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on your products! We provide
OEM/ODM service.
|
