Durable Multifunction Packing Date Printing Machine 50Hz 150W 24x40mm

Durable Multi-Functional Tto Printer For Production Line

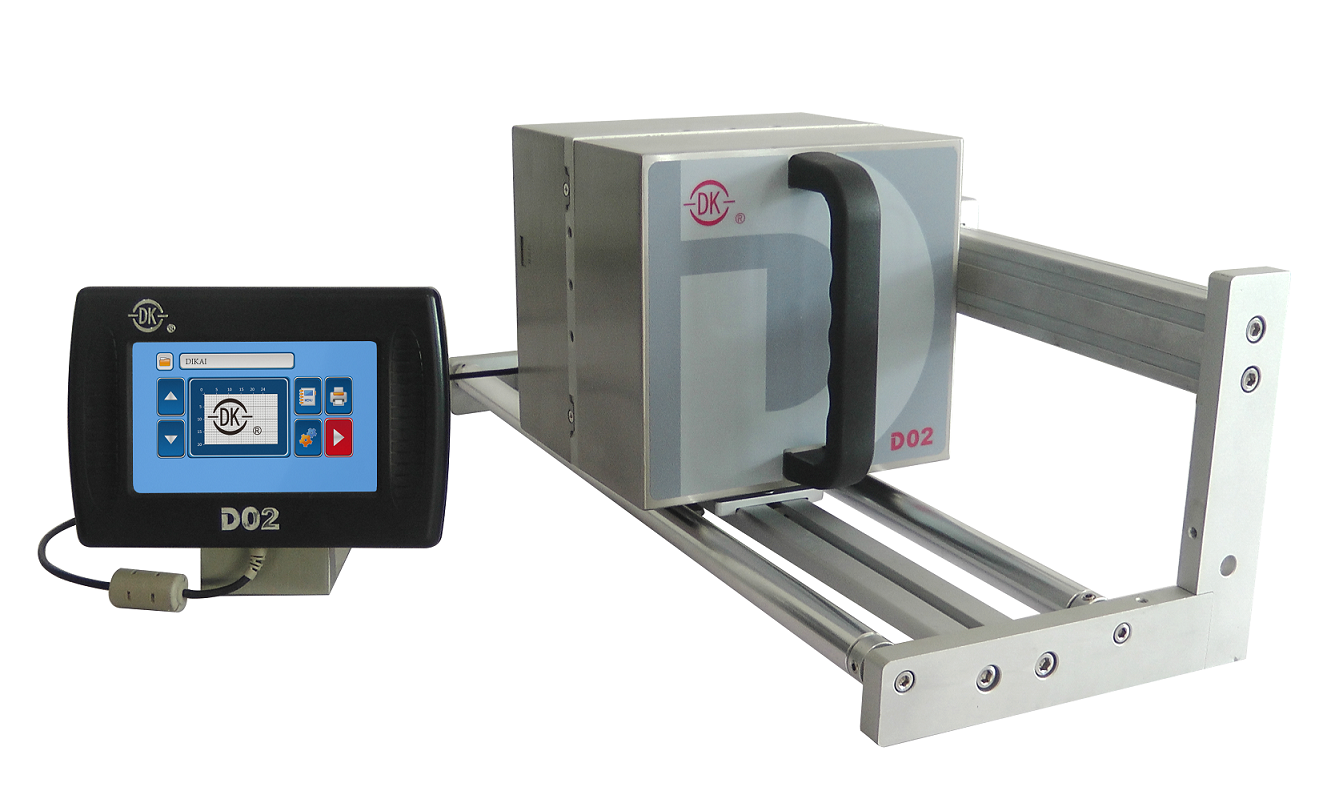

D02 TTO Printer Thermal Transfer Overprinter

• Technical Details:

  Specification
  Print Head	Kyocera, 24mm; 200DPI
  Print Area	Intermittent: 24mm*400mm
  Ribbon Size	25mm*500m
  Printing Frequency	Intermittent: up tp 120PPM
  Environmental Operation Temperature	0-40℃
  Relative Humidity	10%~95% (non-condensing)
  Power	AC110~220V, 50/60Hz, 150W
  Air Supply	6bar/ 90PSI(MAX) dry uncontaminated
  Weight	Print head: 5kg, Control box:0.4kg
  Dimension(L*W*H)	Print Unit: 210mm*210mm*185mm Controller Box: 233mm*180mm*128mm




TTO thermal transfer printer has reliable structural design and professional technology, including direct ribbon drive and improved ribbon box design without wearing parts, and does not need preventive maintenance inspection at all. Each print head has a row of heating elements, and the heat generated by these elements melts the ink. At the same time, the ink is transferred to the substrate by air pressure to realize printing. Its advantages are easy coloring, difficult erasing of printed contents, uniform and clear printing, and suitability for various packages.

Key Benefits

Dikai D02 Thermal transfer overprinter's digital technology delivers clean, crisp codes, with no manual adjustment required as ribbons and printhead are automatically recognized and adjusted to code. Our TTO printer cna print barcodes, logos, before dates, shift codes and real-time time codes, in a variety of thermal trasnfer ribbons grades and colors. The D02 thermal transfer overprinter is a robust one-box solution which provides high-quality printing and uptime to developing coding markets in Asia, Eastern Europe, Lastin and South.

     Shanghai Dikai Coding Technology Co., Ltd was founded in 1995, Dikai has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables. Our headquarters is located in Shanghai, China. So far we have 13 branch offices in China, subsidiaries in Mexico and Brazil were established in 2023, EUR & US Service Agent building in progress, we also have many certificated distributors overseas.

    Our main products are: Thermal Transfer Overprinter, Ink Roll Coder, Hot Stamper Machine, Laser Printer, Thermal Inkjet Printer and related consumables. Adhering to the company philosophy of “Lead, Extreme, Efficient”, Dikai has been committed to flexible packaging coding solutions in long term. Dikai has accumulated more than 40 authorized patents and owns one US invention patent. We developed “one-stand” intelligent coding solution also, it can help customers to manage and use the manufacture data for identification, verifying, product promotion and logistic tracing. All these solutions are widely applied to industries of food, medicine, seeds, medical equipment, daily tissue, daily chemicals, wood industry, etc.

    The Dikai D-series TTO was launched as a flagship product in Germany INTERPACK in 2005, cumulative sales quantity has reached 15,000 sets till 2019, it gains more than 50% of TTO market share in China. We built an excellent team with 28 years of experience in customer service and technical support. Besides, we are aiming at constructing a worldwide distribution network. With intelligent solutions, we hope can become your reliable partner and bring add value to you in near future.
