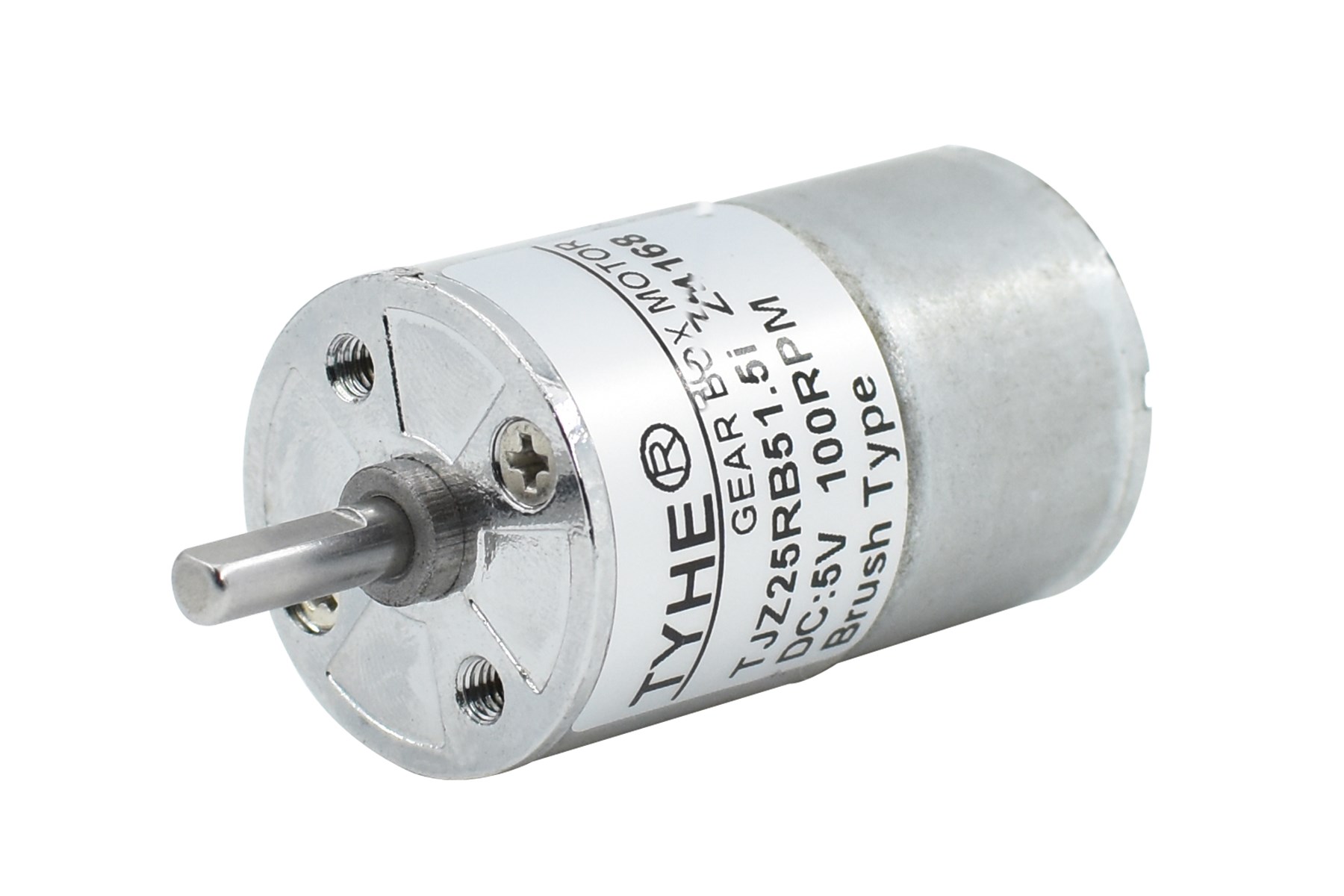

12v 24v 25mm Dc Electric Gear Motor Low Rpm 1rpm 5rpm 1w 2w 5kgcm

Name: 12v 24v 25mm Dc Electric Gear Motor Low Rpm 1rpm 5rpm 1w 2w 5kgcm
Brand: TYHE
Price: 1 USD

12v 24v 25mm Dc Electric Gear Motor Low Rpm 1rpm 5rpm 1w 2w 5kgcm

Categories	12V DC Gear Motor
Brand Name:	TYHE
Model Number:	TJZ25RB
Certification:	CE/ROHS/ISO9001
Place of Origin:	China
MOQ:	500pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	150000pcs per month
Delivery Time:	15 working days after payment
Packaging Details:	Foam wrapped, carton packed
Size:	D25mm
Voltage:	12volt 24v customized
Speed:	6-1800rpm
Torque:	1.51N.m
Gear material:	Powder metallurgy gear
Commutation:	Brushes
Type:	Gear Motor, Mini Motor
Usage:	Feeding machine
Keywords:	Commodity Stocks 12v 24v 25mm Low Rpm 1rpm 5rpm 1watt 2w 5kgcm Torque Dc Electric Gear Motor In India

Contact Now

Add to Cart

Company Info.

Wenzhou Tyhe Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

12v 24v 25mm Dc Electric Gear Motor Low Rpm 1rpm 5rpm 1w 2w 5kgcm

Products Description

Commodity Stocks 12v 24v 25mm Low Rpm 1rpm 5rpm 1watt 2w 5kgcm Torque Dc Electric Gear Motor In India

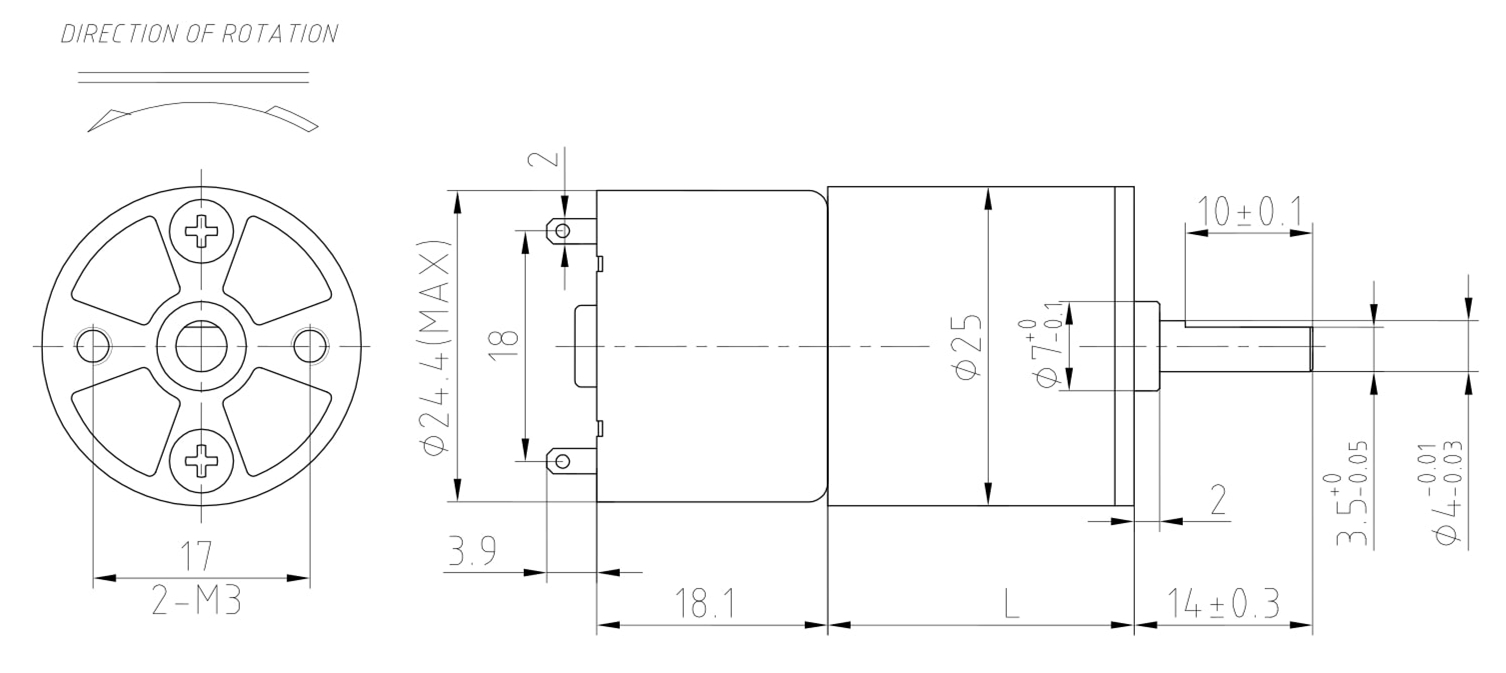

2D drawing

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ25RB	φ25mm	RF310	4mm-D cut	80g

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
310	6	3000	10	2400	0.03	0.46	0.12	62.49	1.38	0.19
310	6	5000	26	4000	0.08	0.72	0.30	62.31	2.16	0.50
310	6	6000	31	4800	0.11	0.79	0.40	62.14	2.37	0.72
310	6	6800	45	5440	0.13	0.84	0.48	61.74	2.52	0.74
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters			6V-3000RPM Input				6V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
19	81	4.8	500.0	0.09	1.79	5.37	833.3	0.24	2.80	8.40
19	81	5.7	421.1	0.09	2.12	6.37	701.8	0.24	3.32	9.97
19	73	10.6	226.4	0.08	3.56	10.68	377.4	0.22	5.57	16.71
19	73	12.5	192.0	0.08	4.20	12.59	320.0	0.22	6.57	19.71
19	73	14.7	163.3	0.08	4.94	14.81	272.1	0.22	7.73	23.18
19	65.6	23.0	104.3	0.08	6.94	20.82	173.9	0.20	10.86	32.59
19	65.6	27.5	87.3	0.08	8.30	24.90	145.5	0.20	12.99	38.97
19	65.6	32.0	75.0	0.08	9.66	28.97	125.0	0.20	15.11	45.34
19	65.6	38.0	63.2	0.08	11.47	34.40	105.3	0.20	17.95	53.84
22	59	51.5	46.6	0.07	13.98	41.93	77.7	0.18	21.88	65.63
22	59	60.5	39.7	0.07	16.42	49.26	66.1	0.18	25.70	77.10
22	59	71.0	33.8	0.07	19.27	57.81	56.3	0.18	30.16	90.48
22	59	83.0	28.9	0.07	22.53	67.58	48.2	0.18	35.26	105.78
22	59	98.0	24.5	0.07	26.60	79.79	40.8	0.18	41.63	124.89
24	53	113.0	21.2	0.06	27.55	82.65	35.4	0.16	43.12	129.36
24	53	133.0	18.0	0.06	32.43	97.28	30.1	0.16	50.75	152.26
24	53	156.0	15.4	0.06	38.03	114.10	25.6	0.16	59.53	178.59
24	53	184.0	13.0	0.06	44.86	134.58	21.7	0.16	70.21	210.64
24	53	215.0	11.2	0.06	52.42	157.25	18.6	0.16	82.04	246.13
24	53	253.0	9.5	0.06	61.68	185.04	15.8	0.16	96.54	289.63
27	47.8	249.0	9.6	0.06	54.75	164.25	16.1	0.14	85.70	257.09
27	47.8	293.0	8.2	0.06	64.42	193.27	13.7	0.14	100.84	302.52
27	47.8	344.0	7.0	0.06	75.64	226.92	11.6	0.14	118.39	355.17
27	47.8	404.0	5.9	0.06	88.83	266.49	9.9	0.14	139.04	417.12
27	47.8	474.0	5.1	0.06	104.22	312.67	8.4	0.14	163.13	489.40
27	47.8	557.0	4.3	0.06	122.47	367.42	7.2	0.14	191.70	575.09
27	47.8	654.0	3.7	0.06	143.80	431.40	6.1	0.14	225.08	675.24
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters			6V-6000RPM Input				6V-6800RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
19	81	4.8	1000.0	0.32	3.07	9.21	1133.3	0.39	3.27	9.80
19	81	5.7	842.1	0.32	3.65	10.94	954.4	0.39	3.88	11.63
19	73	10.6	452.8	0.29	6.11	18.34	513.2	0.35	6.50	19.50
19	73	12.5	384.0	0.29	7.21	21.63	435.2	0.35	7.67	23.00
19	73	14.7	326.5	0.29	8.48	25.43	370.1	0.35	9.01	27.04
19	65.6	23.0	208.7	0.26	11.92	35.76	236.5	0.31	12.67	38.02
19	65.6	27.5	174.5	0.26	14.25	42.75	197.8	0.31	15.15	45.46
19	65.6	32.0	150.0	0.26	16.58	49.75	170.0	0.31	17.63	52.90
19	65.6	38.0	126.3	0.26	19.69	59.08	143.2	0.31	20.94	62.82
22	59	51.5	93.2	0.23	24.00	72.01	105.6	0.28	25.52	76.57
22	59	60.5	79.3	0.23	28.20	84.60	89.9	0.28	29.98	89.95
22	59	71.0	67.6	0.23	33.09	99.28	76.6	0.28	35.19	105.56
22	59	83.0	57.8	0.23	38.69	116.06	65.5	0.28	41.13	123.40
22	59	98.0	49.0	0.23	45.68	137.03	55.5	0.28	48.57	145.71
24	53	113.0	42.5	0.21	47.31	141.94	48.1	0.25	50.31	150.92
24	53	133.0	36.1	0.21	55.69	167.06	40.9	0.25	59.21	177.63
24	53	156.0	30.8	0.21	65.32	195.95	34.9	0.25	69.45	208.35
24	53	184.0	26.1	0.21	77.04	231.12	29.6	0.25	81.92	245.75
24	53	215.0	22.3	0.21	90.02	270.06	25.3	0.25	95.72	287.15
24	53	253.0	19.0	0.21	105.93	317.79	21.5	0.25	112.64	337.91
27	47.8	249.0	19.3	0.19	94.03	282.08	21.8	0.23	99.98	299.94
27	47.8	293.0	16.4	0.19	110.64	331.93	18.6	0.23	117.65	352.94
27	47.8	344.0	14.0	0.19	129.90	389.70	15.8	0.23	138.12	414.37
27	47.8	404.0	11.9	0.19	152.56	457.68	13.5	0.23	162.21	486.64
27	47.8	474.0	10.1	0.19	178.99	536.98	11.5	0.23	190.32	570.96
27	47.8	557.0	8.6	0.19	210.33	631.00	9.8	0.23	223.65	670.94
27	47.8	654.0	7.3	0.19	246.96	740.89	8.3	0.23	262.59	787.78


Please let us know your requirements and we will provide you with transmission solutions.
