| Categories | Gabion Mesh Basket |
|---|---|
| Brand Name: | HBGB |
| Model Number: | GB-002 |
| Certification: | ISO 9001 |
| Place of Origin: | China |
| MOQ: | 100PCS |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per day |
| Delivery Time: | 10-25days |
| Packaging Details: | compacted before packaging, in bundle |
| Product name: | Gabion Mesh Basket |
| Material: | low carbon wire |
| Surface treatment: | galvanized, pvc coated, galfan |
| Net wire: | 2 - 4 mm |
| Strapping line: | 2.2mm |
| Side wire: | 3.4mm |
| Opening: | hexagonal |
| Mesh size: | 60 x 80 mm; 80 x 100 mm;100 x 120 mm; |
| Basket size: | 1.0 x 1.0 x 1.0 m; 2.0 x 1.0 x 1.0 m and etc |
| Usage: | Flood Control Gabion Mesh |
Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan)
coated wire / PVC or PE coated wires, the mesh shape is hexagonal
style. The Gabion Basket are used widely in slope protection,
foundation pit supporting, mountain rock holding, river and dams
scour protection
Gabion Basket Surface Treatment: Finish can be hot-dipped
galvanized, galvanized aluminum alloy or PVC coated, etc.

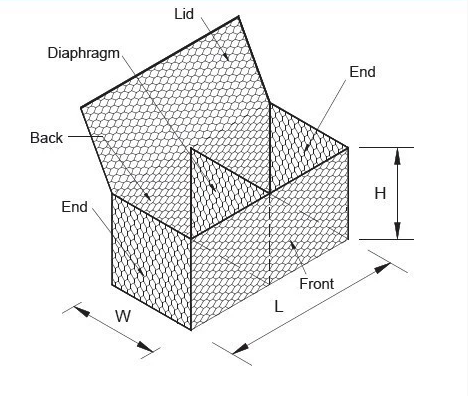

Gabion mesh basket specifications:
| Gabion Baskets Specifications | |||
| Mesh Opening (mm) | Wire Diameter(Metal Wire) (mm) | Wire Diameter(PVC Coated) Inner/Outside(mm) | Strands |
| 60*80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80*100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80*120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100*120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100*150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120*150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Size | Notes | Tolerance | |||
| Length(m) | Width(m) | Height(m) | Cell Number | Volume(m³) | ±3% |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | ±5% |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
• Uniform wire coating for extra durability
• Flexible & permeable structure
• Tolerates differential settlement
• Easy to install
• No special labour is required for installation
Gabion Mesh Basket Usage:
• Control and guide of water or flood. Flood bank or guiding bank
• Preventing of rock breaking.Water and soil protection
• Bridge protection.Strengthening structure of soil
• Protection engineering of seaside area.Seaport engineering
• Isolation walls.Protection of road

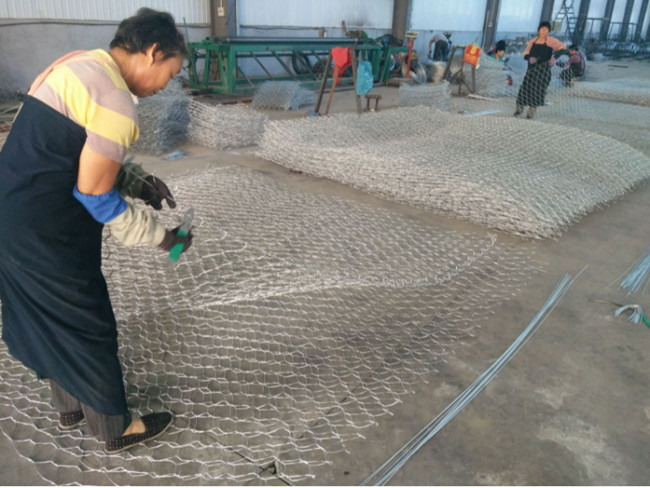

Process of production:

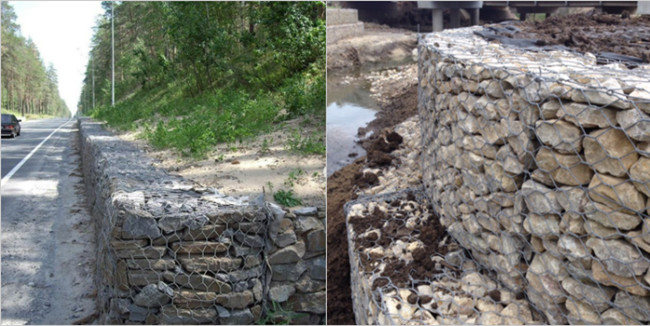

Application:
|
