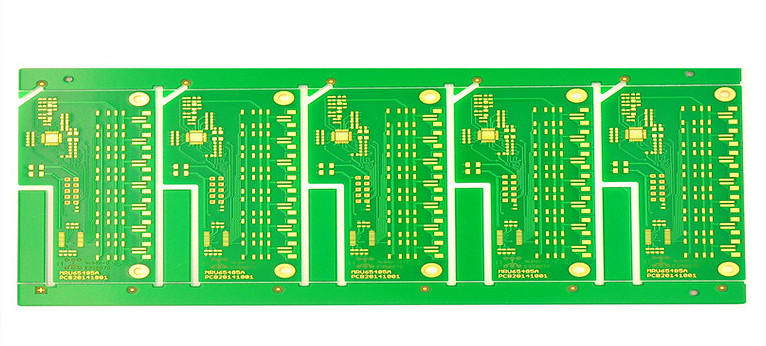

35um Fr4 HDI Double Sided Circuit Board 4mil 2 Layer Pcb Board

PCB double sided custom printed circuit board 2 layer pcb design fr4 pcb HDI

Capacity:

-Applications

HDI PCB is used to reduce size and weight, as well as to enhance electrical performance of the device. HDI PCB is the best

alternative to high layer-count and expensive standard laminate or sequentially laminated boards. HDI incorporate blind and

buried vias that help to save PCB real estate by allowing features and lines to be designed above or below them without

making a connection. Many of today's fine pitch BGA and flip-chip component footprints do not allow for running traces between

the BGA pads. Blind and buried vias will only connect layers requiring connections in that area.

Related Products:

Advantage:

1, Single-sided PCB, double side & multi-layer PCB with competitive price, good quality, and excellent service.

2, CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Rogers, TEFLON

3, HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP, gold plating/finger, Carbon ink.

4, Printed Circuit Boards adhere to IPC Class 2 international PCB standard.

5, Factory audited by UL, IS09001/14001, SGS.

6, 100% E-Test.

Company Profile:

ABIS CIRCUITS CO., LTD Created in 2006,as a long history China based PCB supplier, ABIS manufactures different kinds of printed circuit boards, including MCPCB,CEM-1,CEM-3,and FR4,FR-4 high Tg, Rogers, Teflon, Arlon ets special material.
ABIS has set up two PCB factories in China: one for MCPCB producing, quick turn and small volumn making, and another for mass production. Currently, ABIS modern plants occupy total 10000 s.q.m facility, with more than 1100 stable and experienced workers. Professionalism and continuous optimization of manufacturing processes have positioned ABIS as a reliable and favorite partner for global companies.

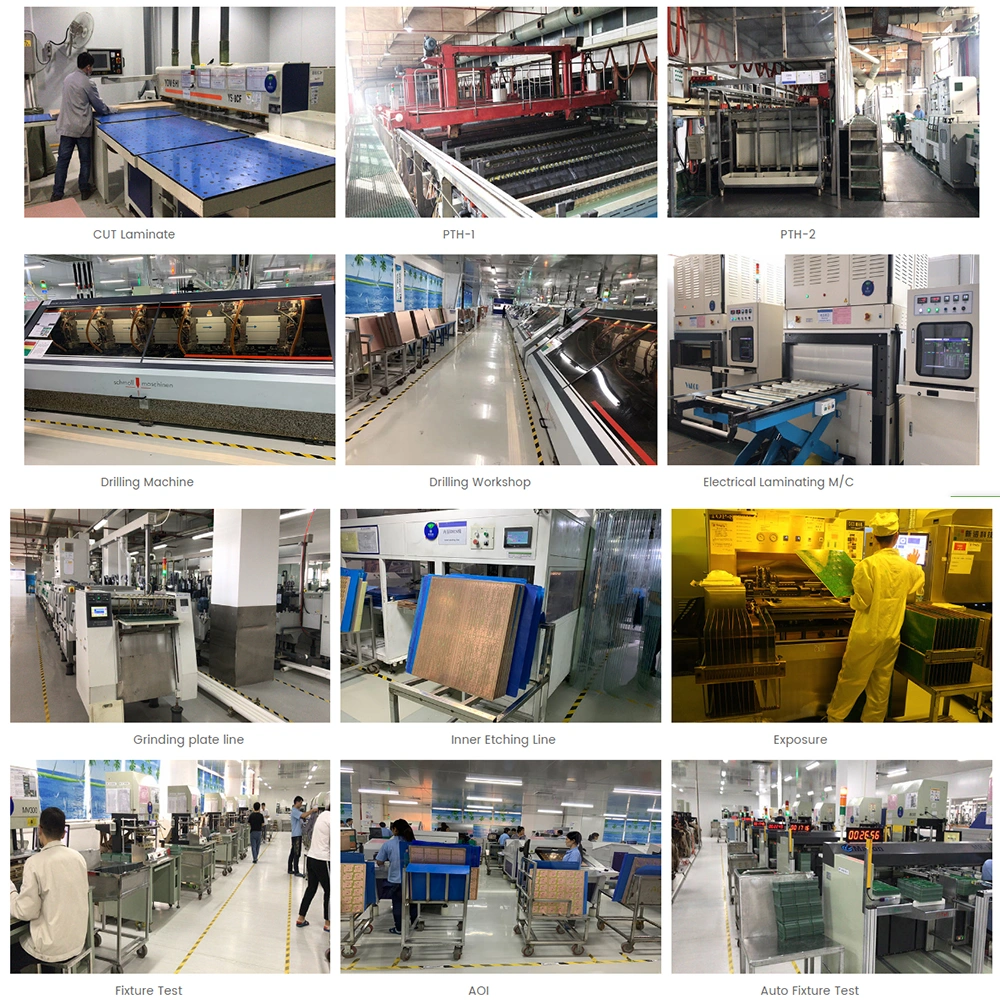

Workshop:

FAQ:

Q1: How can I got quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .CAD / .Gerber

Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?

Q3: Do you have PCB in stock?
. Most of our PCB boards are customized, according to Gerber file.
. ABIS has a sample in stock that could be sent to you for quality checking always.

Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).

Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file checked, we'll start the production.

Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity

Q7: Do ABIS CIRCUITS bevel gold fingers?
. Yes. A standard 45-degree bevel also bevels at 15 or 30 degrees upon request. For a multi-layer board, please ensure there is an adequate back set for the bevels.

Q8: My assembly company needs the PCBs panelized, can you do this for me? ---Yes. We can penalize your circuits upon your request.

ABIS Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 7.0000 square meters.

Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security and others.

Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer satisfaction and support are what we have been strived for.

Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Aluminum base and flexible boards to our customer with fast turn and high-quality level.
