| Categories | Vertical Form Fill Seal VFFS |
|---|---|
| Brand Name: | UUPAC |
| Model Number: | 520 VFFS |
| Certification: | CE,ISO9001 |
| Place of Origin: | Anhui Hefei,China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Sets/Month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | Fumigation wooden case+Pallet |
| Product: | Automatic packing and weighing VFFS machine 620 for granular Snack Dried Nuts Food Packing |
| Packing Speed: | 10-60p/M |
| Bag Size: | 50-350mm(L)*50-250mm(W) |
| Bag Type: | Pillow bag,Gusset bag,hold punching bag,vacuum bag,quad seal bag |
| Film Width: | 120-520mm |
| Film Thickness: | 0.04~0.09mm |
| Film Material: | BOPP/CPP,VMCPP,PE |
| Pulling Belt Type: | Synchronous belt film pulling |
| Air Consumption: | 0.7Mpa 0.4m³/min |
| Power Supply: | 220V/50~60HZ 2.2HZ |
| Machine Weight: | 480kg |
| Machine Dimension: | 1560*1160*1530mm |
Automatic Packing And Weighing VFFS Machine 620 For Granular Snack Dried Nuts Food Packing
Automatic packing and weighing VFFS machine 620 for granular Snack Dried Nuts Food Packing
Main Function and Features:
1. Advanced design, reasonable structure, convenient operation and maintenance.
2. Precise positioning with servo film running system and synchronous belts to pull film, ensuring stability and reliability.
3. Automatic correcting function; time and film saving to improve the reliability and intelligence of the whole machine.
4. Multiple automatic alarm and protection functions to minimize the loss
5. Full packaging process of measuring, feeding, filling, bag forming and date printing, air in/out, counting and finished product conveying in one automatic operation by the machine equipped with measurement device.
6. Bag type: pillow bag, gusset bag and hole punching bag.
Main Performance And Structure Features:
√ High precision digital weighing sensors;
√ PLC control system ,stable and reliable;
√ Easy to clean and maintance.
Technic Parameters:
| Model | 520 VFFS | 620 VFFS | 720 VFFS |
| Packing Speed | 10-70 bpm | 10-50 bpm | 10-45 bpm |
| Bag Size | 60-300(L)*60-200(W)mm | 20-400(L)*100-300(W)mm | 20-450(L)*140-350(W)mm |
| Bag Type | Pillow bag, gusset bag, hole punching bag, vacuum bag | ||
| Film Width | 140-420mm | 620mm | 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE | ||
| Pulling Belt Type | Synchronous belt film pulling | Synchronous servo motor belt film pulling | Synchronous servo motor belt film pulling |
| Air Consumption | 0.7Mps 0.4m³/min | 0.7Mps 0.5m³/min | 0.7Mps 0.65m³/min |
| Power Supply | 110V/220V 50HZ/60HZ, 3.4KW | 110V/220V 50HZ/60HZ, 4.0KW | 110V/220V 50HZ/60HZ, 4.0KW |
| Machine Dimension | 1560(L)*1160(W)*1530(H)mm | 1250(L)*1600(W)*1700(H)mm | 1360(L)*1630(W)*1900(H)mm |
| Machine Weight | 480kg | 800kg | 900kg |
Related Products:
Certifications:
Packing & Delivery:

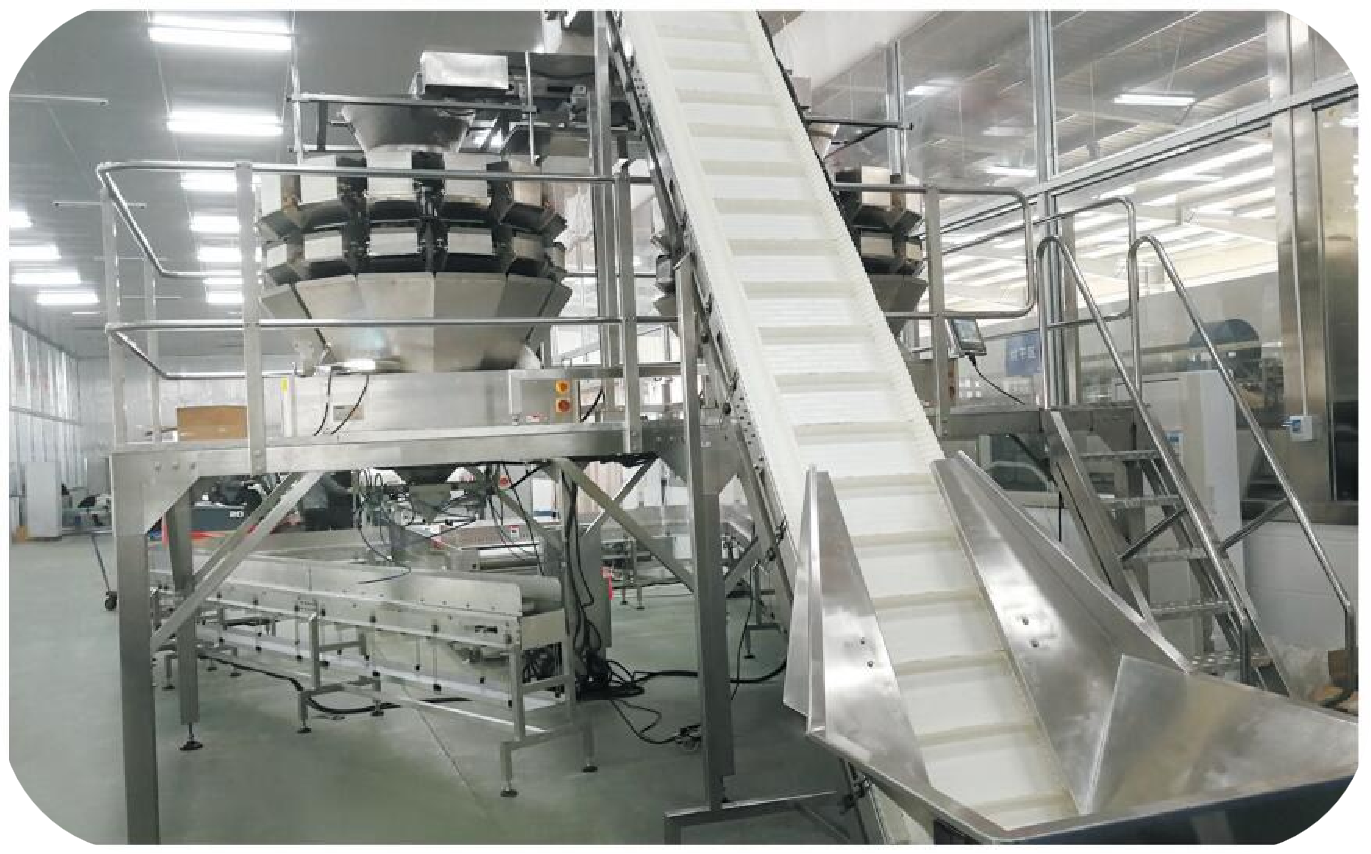

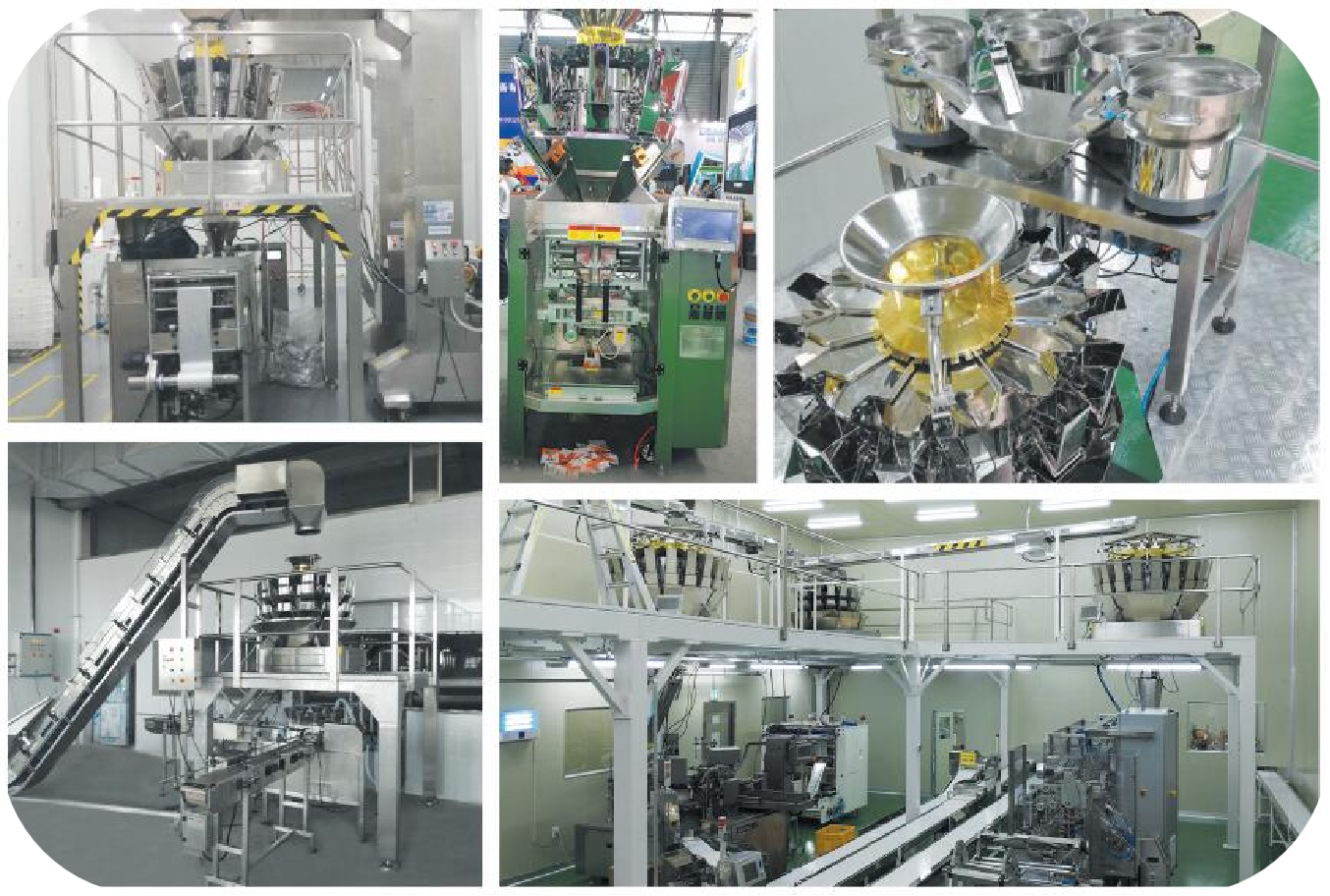

Customer Cases display:
FAQ:
1. How to install the new machine?
our machines are designed easy for installation; Installation video
is also available. If needed, we'll arrange professional engineer
to service overseas if buyers bear related cost.
2. How to solve the problems during using the machines?
We have experienced after-sales team ready to solve the problems
for our buyers. Buyers describe the problems to us by email or
telephone; sometimes we need you to supply the problem pictures and
videos for our engineers for reference, we will try to discuss with
buyers and try to get the most effective solution in shortest time.
If necessary, we can arrange the most professional engineer to go
to buyer's factory for solving problems as soon as possible.
3. What's your warranty period and spare parts supply?
We offer one year warranty and life-long maintenance. In the first
year, if any parts broken not occurred by human factor and parts
not in the list of 1% free spare parts, we will supply the new
replacement parts freely.
4. Do you supply OEM service?
Yes. OEM service is available. Our designer would make your private
idea into being. We will protect your sales area, ideas of design
and all private information belonged to you.
Anhui UUPAC Intelligent Equipment Co., Ltd. adheres to customer-oriented, provides innovative, attractive and
easy-to-use products for customers, and is committed to improving
people's working conditions.
Pre-sales guidance service: provide professional solutions from
workers, equipment, packaging materials, packaging methods and
working environment.
|
