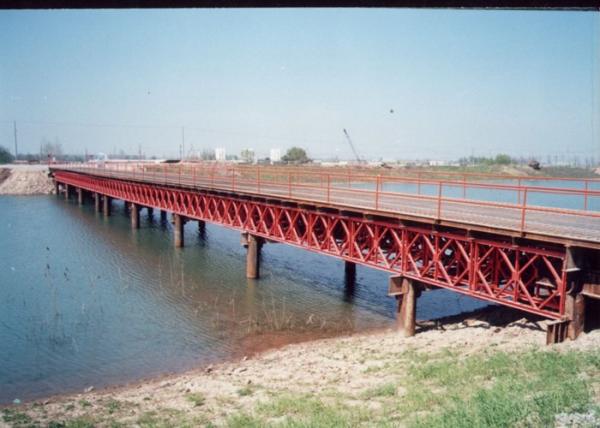

60m Compact Bailey Bridge Great Stability And Long Fatigue Life

60m Great Stability And Long Fatigue Life Compact Panel Bridge

60m Great Stability And Long Fatigue Life Compact Panel Bridge Description:

The basic component of 60m Great Stability And Long Fatigue Life Compact Panel Bridge consists of girder, deck, frame connecting structure, bridge end structure and gateway structure. The girder is composed of panel, panel pin (include safety circlip) and chord reinforcement. The deck is composed of transom, bridge plate and kerb. The frame structure is composed of raker, bracing frame, vertical frame, sway brace and vertical component. The bridge end section is composed of end post, lower bearing and frame plate. The gateway structure is composed of ramp, ramp bearing and end plate.

60m Great Stability And Long Fatigue Life Compact Panel Bridge adopts modular design, featuring a large span,short construction period,fast erection, multiple reuses of bridge components. It has excellent interchangeability and connection ferformance. The bridge structure can be designed according to the bridge span and load requirement,which can quickly construct a temporay or semi-permanent bridge.

60m Great Stability And Long Fatigue Life Compact Panel Bridge surface protection can be paint or hot-dip galvanized.

60m Great Stability And Long Fatigue Life Compact Panel Bridge​ Advantage:

Possessing the features of simple structure,
great stability and long fatigue life
being capable of an alternative span, loading capacity
easy disassembling,
heavy loading capacity,

60m Great Stability And Long Fatigue Life Compact Panel Bridge Specifications:

China Harzone Industry Corp., Ltd. ,built in 1967, is the subsidiary of China State Shipbuilding Corporation Limited(CSSC) and one military enterprise whose conservation was given priority status in China.


Harzone Industry has the qualification of design, manufacturing and installing various steel products: emergency mechanized bridges; temporary and permanent steel bridges such as Pontoon Bridge, Bailey Bridge, Truss Bridge, Suspension Bridge, Girder Bridge and Cable Stayed Bridge; steel structures for industrial workshops, commercial buildings and habitation buildings; special equipment such as power transmission tower, television tower, radio tower, microwave tower, communication tower, and railway steel pole.


Harzone Industry has the first-grade steelwork manufacturing qualification; has the ISO9001-2000 quality system, the ISO14001-2004 Environmental Management System, and has GB/T28001-2001 Occupational Safety Management System Certification.


Harzone Industry owns two Production Bases, one Research & Design Department in Hubei province, and one subsidiary company in Beijing. Our products have been exported to over 40 countries in Asia, Africa and Latin America.
