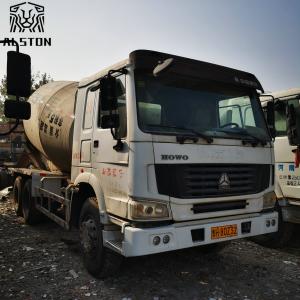

10M3 371HP Used Howo Concrete Mixer Truck

Categories Used Concrete Mixer Truck
Brand Name: HOWO
Model Number: ZZ1257N3841W
Certification: CCC, ISO, CE
Place of Origin: CHINA
MOQ: 1 unit
Price: $14000/unit-$17000/unit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30units per month
Delivery Time: 10-15 working days
Packaging Details: Nude, Waxing before delivery
Conditions: Used Concrete Mixer Truck
Size: 8560x2496x3800mm
Warrranty: 1 Year
Product Name: Howo Concrete Mixer Truck
Engine: WD615.69
Emission: Euro 2
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10M3 371HP Used Howo Concrete Mixer Truck

Used Howo Concrete Mixer Truck 371hp 10M3 Used Concrete Mixer Truck


Description of Used Howo Concrete Mixer Truck:


At present, used concrete mixer truck is an indispensable professional transportation tool for urban construction

roads, bridges, houses, water conservancy projects and mixing stations. Sinotruk howo used concrete mixer truck

has the characteristics of narrow body, short wheelbase, small turning radius and other personalized designs and

has strong advantages in working environments with limited height, width and length. The concrete mixing and

transportation tank produced by Sinotruk can rely on the power of the dump truck to drive the gear oil pump and

the hydraulic motor to drive the tank truck to run. The hydraulic components are controlled by the control lever,

which can realize the normal and fast operation of the tank truck, fast feeding, fast unloading and slow unloading

materials. Thanks to the oil circuit cooler, the oil temperature is always kept below 55°C to ensure the stable

operation of the hydraulic motor.


SPECIFICATIONS OF USED CONCRETE MIXER TRUCK

Chassis modelZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
EngineWD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
CabinHW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch∮430 diaphragm spring clutch, hydraulic control air power assisted.
TransmissionHW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive AxleHC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front AxleHF9, 9ton, drum brake
ChassisFrame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
Fuel tank: 300 L capacity, with locking fuel cap
SteeringZF8118, hydraulic steering with power assistance, LHD
Brake systemService brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre12.00R20 Radial plus one spare tyre (11 units)
Mixing TankEffective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other SpecificationWith Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

Flat Rack Container Bulk Ship Ro-Ro Ship

OUR WORKSHOP:

After Refurbishment

Quality 10M3 371HP Used Howo Concrete Mixer Truck for sale
