Glass Silicone Extruder Machine For Double Glass Units

Categories Sealant Extruder
Brand Name: Lijiang
Model Number: LJST02A
Certification: CE
Place of Origin: Jinan
MOQ: 1 SET
Price: 12000 USD/SET
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/MONTH
Delivery Time: 20 DAYS
Packaging Details: plastic film
Name: Glass Sealant extruder
Working air pressure0.3-0.6MPa: 0.3-0.6MPa
Sealant spreading pressure: 15-20MPa
Sealant volume: 4L/min
Air pressure: ≥0.8MPa
Overall dimension: 1100*950*1630mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

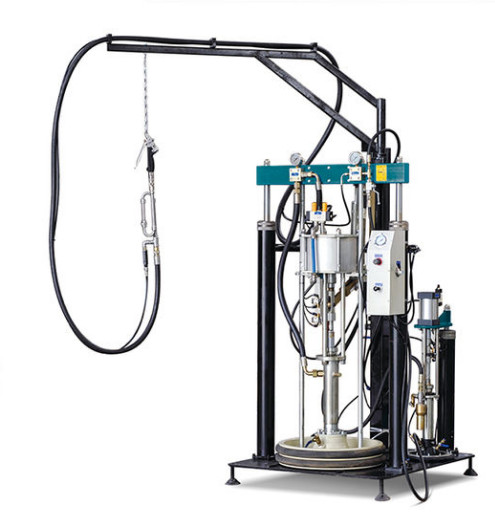

Glass Silicone Extruder Machine For Double Glass Units

Glass silicone extruder machine for double glass units LJST02A

Main feature

Imported motor system to improve equipment efficiency

Sealant gun, stainless steel mixer

High pressure protect device

Anti-back flow control structure

Mixed rate detector can control the rate of two kinds of glue

Technical data


Working air pressure0.3-0.6MPa
Sealant spreading pressure15-20MPa
Sealant volume4L/min
Diameter of A/B sealant570mm/280mm
Sealant spreading air pressure ratio50:1
Mixed rate6:1-14:1
Air supplyFlow 0.8m3/min
Air pressure≥0.8MPa
Overall dimension1100*950*1630mm

Manual Gas Filling Machine LJCJ02N



Main feature

It is used for filling Argon into insulating glass

High effectively, allowed for four pieces of IGU

When the gas is full, it will alarm and stop automatically

Can set and display the data of gas value


Technical data


Power supply220V 50Hz
Total power0.1kw
Dimension620*439*700mm

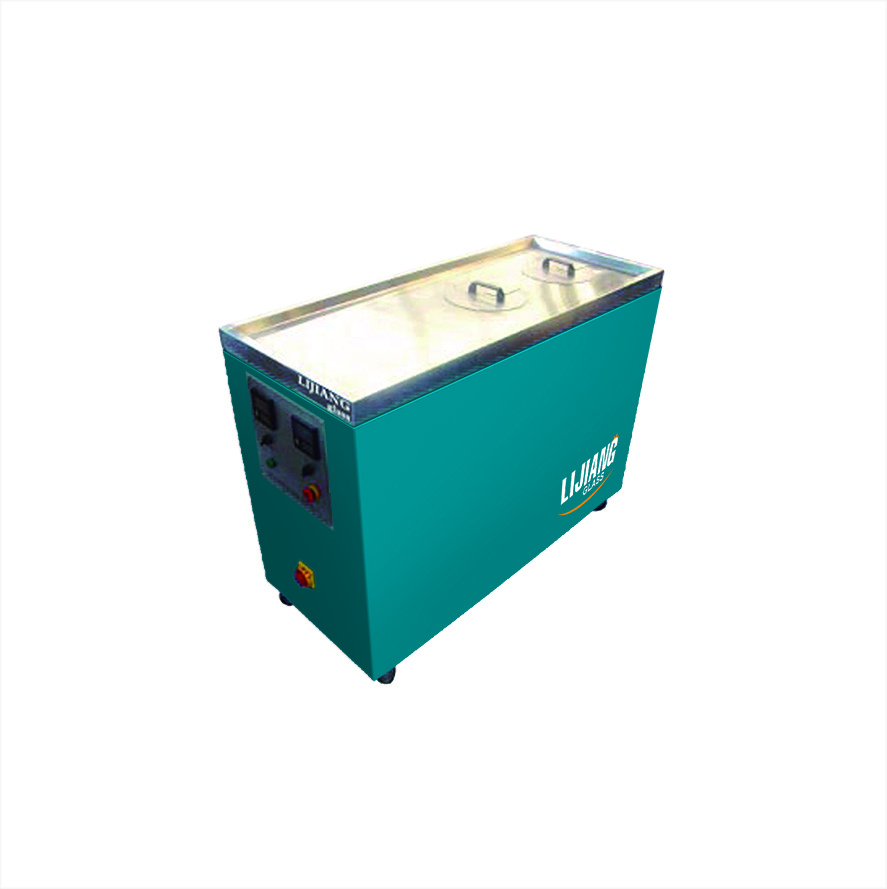

Freezer LJSGF01


Main feature

It is used for storing the gun when manual glue gun stop work during the process of gluing insulating glass

Storing at low temperature,to prevent sealant solidify

Apply to polysulfide and silicone

Can be effectively reduced waste when cleaning the glue

Technical data

Max refrigerating temperature70ºC
Min heating temperature-40ºC
Total power3.8kw
Refrigerating<150min
Overall dimension1550*60*1300mm

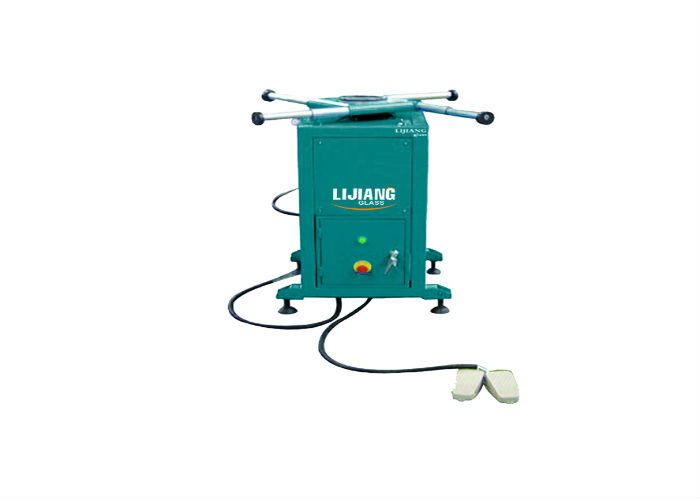

Rotated Sealant Spreading Table LJSK02

Main feature

Easy operating, simple and flexible

It is used for fixing and rotating glass when manual coating the outside of IG glass

The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass

Technical data


Power supply380V 50Hz
Total power0.37kw
Operating dimension1500*1500mm
Dimension600*550*985mm

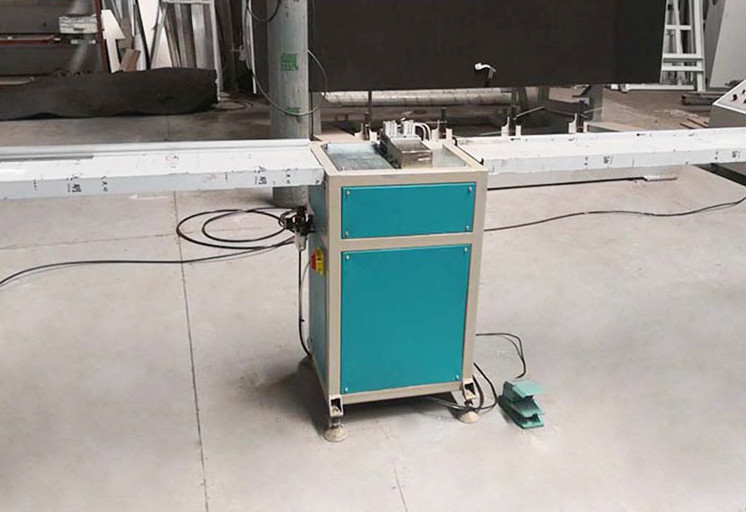

Spacer trip cutting machine LJQJ 02

Main feature

It is used for cutting aluminum strip

Allowed to cut many spacers, keep high efficiency

Technical data

Power supply380V 50Hz
Total power0.55kw
Dimension5000*1050*415mm
