10A 20A ON OFF 2 Position 6 Pin DPDT Automotive Rocker Switch

L5 Heavy Duty 10A 20A ON OFF 2 Position 6 PIN DPDT LED Light Automotive Car Rocker Switch

Specification of DPDT LED Light Automotive Car Rocker Switch

Typical Resistance VS. Current Rating @ +25°C

Ambient Compensation Table

Features of Heavy Duty 10A 20A ON OFF Rocker Switch

· Anti-corrosion & anti-acid.
· Perfect for Industrial and Automotive
· Easy Installation Auto Rocker Switch - Easy to implement into all kinds of electronics projects, just drill a hold the right size and it slides straight in.This inexpensive rocker switches are always good to have around.

Applications of 10A 20A ON OFF 2 Position 6 PIN DPDT Rocker Switch

rocker switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting dimensions.This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

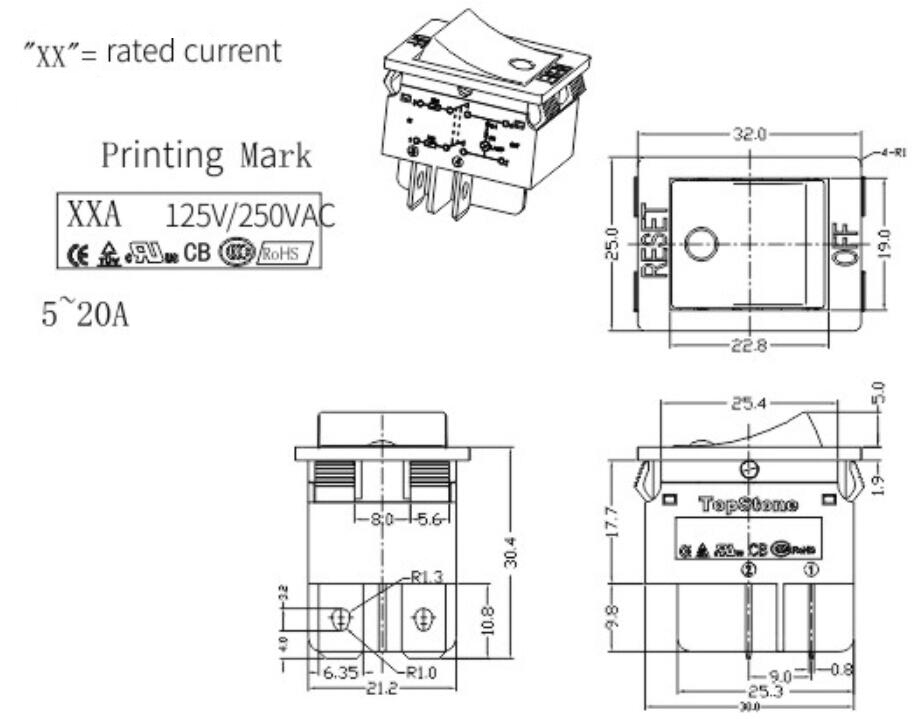

Drawing of Heavy Duty 10A 20A ON OFF

Dongguan Tianrui Electronics Co., Ltd. was founded in 2010. It covers an area of 4,000 square meters and has a monthly production capacity of 50 million pieces. We are committed to be a comprehensive circuit protection component manufacturer and solution supplier. We are specialized in the design, development, production and sale of over-current protection, over-temperature protection, and over-voltage protection. Our products are widely used in consumer electronics, automobiles, ships, communications, power supplies, power tools, new energy and other fields. Our products cover auto-fuse, auto-fuse holder, current fuse, current fuse holder, temperature fuse, SMD fuse, resettable fuse, circuit breaker, thermal switch and so on. our products meet international standards including UL,

UR,CSA,CUL,VDE,TUV,PSE,CE,CCC,ROHS certification etc.
