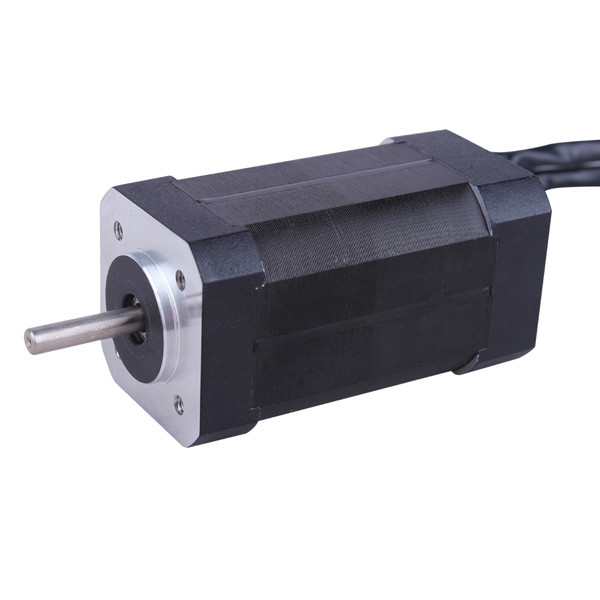

42mm 36Voltage Brushless Dc Motor 36v Dc Brushless Motor

Categories Brushless DC Motor
Brand Name: JSS
Model Number: 42BL90-340
Certification: CE,ROHS,ISO
Place of Origin: China
MOQ: 1 pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/week
Delivery Time: 25days
Packaging Details: Cartoon box
Name: 42MM 36V Brushless Dc Motor
Rated Voltage: 36VDC
Rated Current: 4.6A
Rated power: 125W
Rated torque: 0.3N.M
Peak torque: 0.9N.M
Rated Speed: 4000rpm
Motor Length: 91MM
Motor Weight: 0.65Kg
Type: Brushless DC Motor
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

42mm 36Voltage Brushless Dc Motor 36v Dc Brushless Motor

42mm 36Voltage Brushless Dc Motor 36v Dc Brushless Motor

Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.


our main products:

hybrid stepper motor and drives

Brushless DC motor and drives

planetary gearbox

AC servo motor

Spindle motor

Linear guide and its pairs

Ball screw and its pairs



General specification:

ItemSpecification
Widing typeStar/Delta
Hall effect angle120 degree electrice angle
Shaft runout0.025mm
Radial play0.02mm/50g
End play0.08mm/50g
Max radial force28N/20mm from the flange
Max axial force10N
Insulation classClass B
IP classIP 40
Dielectric strength500VDC for one minute
Insulation Resistance100MΩmin 500VDC

Electrical Specification:


ModelRated VoltageRated CurrentRated PowerRated TorquePeak TorqueRated SpeedLengthMass
(VDC)(A)(W)(N.m)(N.m)(RPM)(mm)(kg)
42BL50-340361.6420.10.34000510.35
42BL70-340363.1840.20.64000710.55
42BL90-340364.61250.30.94000910.65

Electrical Connection:

Lead No.Lead ColorLead GaugeFunctionDescription
1RedUL3266/28AWGVCC+5VDCSUPPLY VOLTAGE FOR HALL SENSORS
2BlackGNDGROUND FOR HALL SENSORS
3YellowHALL ASIGNAL OF HALL A
4GreenHALL BSIGNAL OF HALL B
5BlueUL3266/20AWGHALL CSIGNAL OF HALL C
1YellowPHASE UMOTOR PHASE U
2GreenPHASE VMOTOR PHASE V
3BluePHASE WMOTOR PHASE W


Wiring diagram:

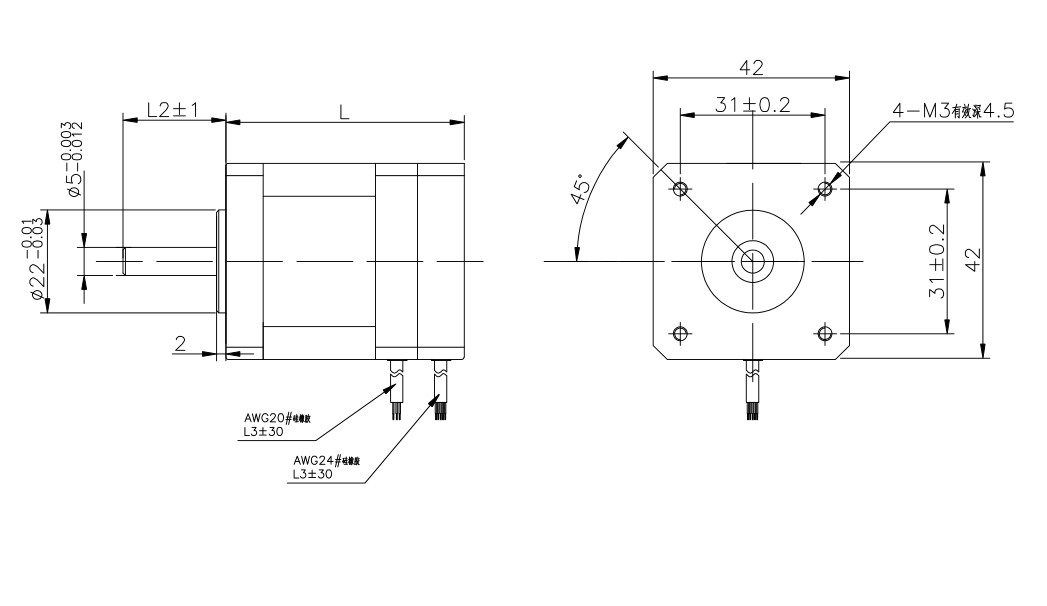

Dimensions:

(Unit=mm)
