| Categories | Remote Control for Construction Vehicles and Industrial Machinery |
|---|---|
| Brand Name: | DKLD |
| Model Number: | DHZ-1M16DB3S |
| Certification: | CE |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per week |
| Delivery Time: | 15 days |
| Packaging Details: | Export-Standard Carton Box with PE Foam Inside |
| Application Equipment: | Industrial Equipment |
| Transmitter Function: | A toggle Switch and a speed control knob |
| color: | Black |
| material: | Reinforced nylon plastic |
| Size: | 210×85×50mm |
| Weight: | 480g |
| Control distance: | ≥100m/can be customized 250m/500m |
| Transmitting fraquency: | 433MHz |

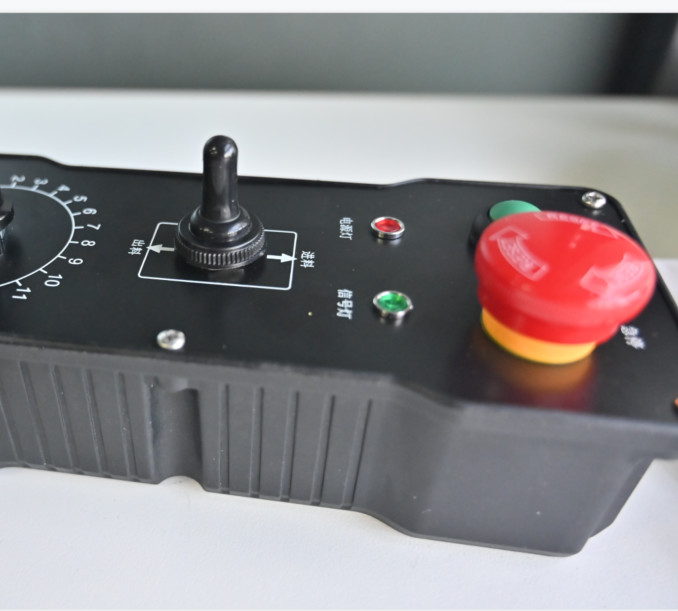

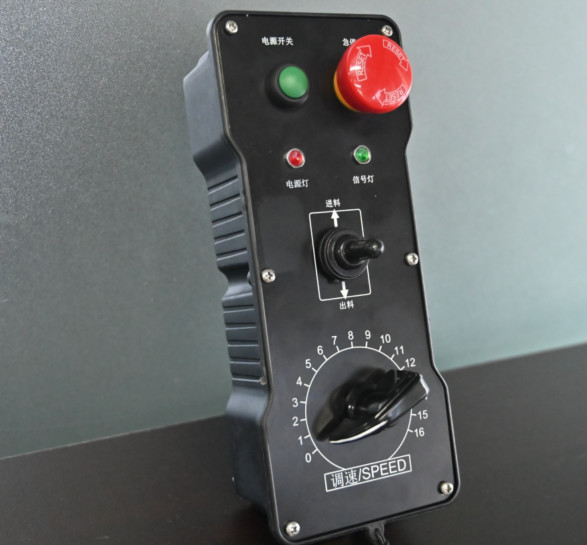

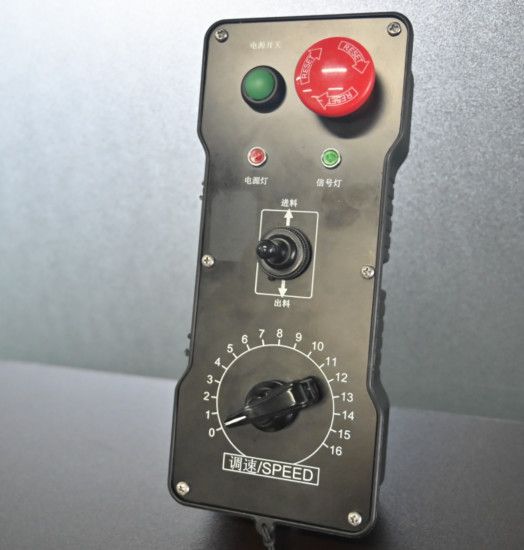

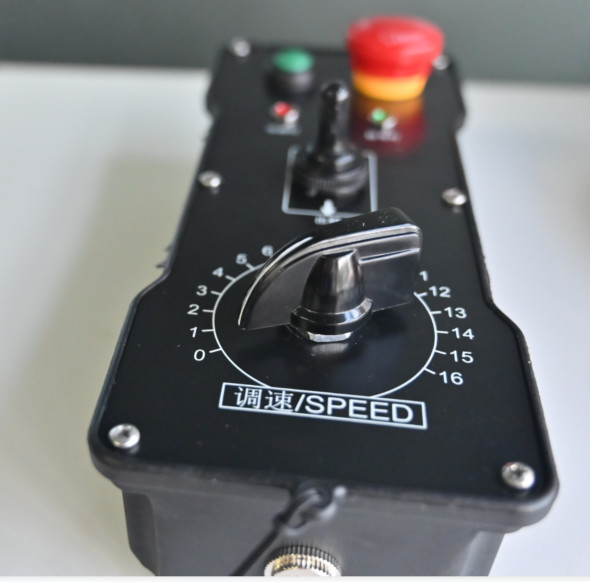

DHZ-1M16DB3S 16-speed adjustable speed Toggle Switch Remote Control for concrete pump truck
| Model | DHZ-1M16DB3S |
| Transmitter Function | A toggle Switch and a speed control knob |
| Size | 210×85×50mm |
| Transmitter Weight | 480g |
| Transmitting fraquency | 433MHz |
| Frequency channel | 50~256 |
| Application equipment | Industrial Equipment |
| Control distance | ≥100m/can be customized 250m/500m |
1. Stable control signals will ensure no interference during use. The unique signal is encrypted and coded, and there is no interference when using multiple sets of remote controllers in an environment.
2. Stainless steel panel and buttons, more resistant to be broken and smudge.
3. The transmitter is sealed with silicone rubber ring, which is good waterproof.
4. Heartbeat packet detection:Once the transmitter is damaged or the signal is lost, the receiver will stop automatically.
5. The antenna is built inside to prevent it from being broken.
6. Each set remote control has unique ID identification code, even if the same frequency also does not interfere with each other.
Default configuration
1. Transmitter * 1 pcs
2. Receivers * 1 pcs
3. The receiver comes with 1m cable connector
4. Operation and Maintenance Manual
Attentions
1. Due to transportation requirements, the product is not equipped with battery.
2. The function can be customized according to your requirements, please contact the supplier.
1. Customized logo and trademark are warmly-welcomed.
2. Good after-sale services offered.
3. 1 year warranty period, spare parts supply for free.
4. 100% QC inspection before shipment.
Packing & Delivery
Generally speaking, as long as the electric control of construction machinery equipment, our remote control, can be seen as, we are specialized in making industrial wireless remote control, facing a wide range of equipment.
We have remote control corresponding to the requirements of crane machinery and equipment in various situations, such as single hook and single speed crane, which has fast and slow speed up and down for single hook, no fast and slow speed in East, West, North and south, and fast and slow speed in each direction for single hook up, down, East, West, North and south.
Answer: the function of the remote control has nothing to do with the tonnage, nor with the motor power of the crane, only with the number of actions.
Yes, the frequency conversion crane is a stepless speed regulation control mode. Like an automatic car, the larger the accelerator is, the faster the speed is. There is no need to engage the gear.
During the operation of the remote control, it has instantaneous and immediate response, the execution time difference is 20-40ms, 1 second is equal to 1000ms, and the signal sensitivity at the receiver end is - 110dbm. Macroscopic judgment with naked eyes, the action of the device end is generated at the moment of key triggering, basically without time difference.
The regular one is 100 meters, but it can be customized for further distance, such as 250 meters, 500 meters, 800 meters, 1000 meters, 1500 meters, 2000 meters, etc. the corresponding distance can be customized according to the actual demand.
To provide quality products at the same time to improve after-sales support
An independent R & D and design company with ten years of technology accumulation, which can be quickly customized.
We have own assem- bling factory and mold factory.
Professional team to provide you with efficient service.
|
