| Categories | Graphic LCD Module |
|---|---|
| Brand Name: | hainengzhichuang |
| Model Number: | custom |
| Place of Origin: | Shenzhen, China |
| MOQ: | custom |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Itme: | color graphic lcd module |
| Color: | blue |
| Resolution: | 128*64 |
| Brightness: | blue BL |
| Viewing Area: | 38.00(W)X 22.00(H)mm |
| Pixel Configuration: | R.G.B. Vertical Stripe |
| Pitch: | 0.37mm |
| Viewing Direction: | ALL |

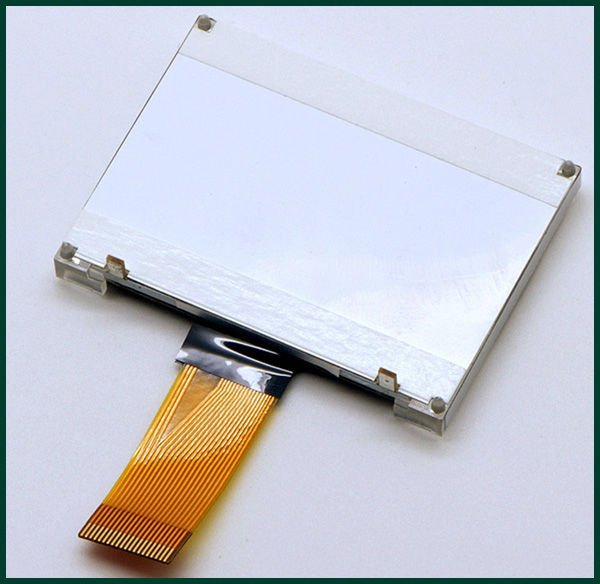

color graphic lcd module JHD12864-G106BTB-BL
Description:
According to customers' various requests, tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board, LED backlight & LVDS cables.
Specification:
1. Own plant production
2. Back Light Replaceable
3. 500,000pcs/month
4. Small Quantity order(MOQ: 1000pcs)
5. Competitive Price
| Itme: color graphic lcd module | Model name: JHD12864-G106BTB-BL |
| Color: blue words over black background | Pixel: 8192 |
| Resolution:128*64 | Contrast Ratio: 300:1 |
| Brightness: blue BL | Outline Dimension: 44.0(W)X33.0 (H)X4.0(T)mm |
| Viewing Area: 38.00(W)X 22.00(H)mm | Active Area: 35.81(W)X 19.81(H)mm |
| Dots: 128*64 | Pitch: 0.37mm |
| Drive Power Supply Voltage: 3.0V/3.3V | Viewing Angle: 6.00 o'clock |
| Operation temperature: -20°C~+70°C | Storage Temperature: -30°C~+80°C |
| Display Mode: FSTN, negtative, blue with white character | FPC Length: 30mm |
| Response Time: 100ms | IC: ST7565R |
| IC Packaging: COG | Bcak Light: White LED(Two) |
Q1. How can I get the samples?
A: If you need samples, we can make as per your request .
You should pay the sample fee and freight. Sample lead time always be within 2-5 days.
Q2. How to order lcd?
A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
Q3. How long can I expect to get the sample?
A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
Q4. When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately
Custom Made Project Order Flow
1. Enquiry
Send us draft / details drawing, project schedule, application,
qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).
2. Counter drawing
We will send out counter drawing after confirm of our quotation and
received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.
3. Tooling samples
After drawing approval, tooling samples will be finished around 30
days
4. Mass production
After samples approval, mass production goods will be finished
around 30 to 60 days. Depends of the order situation and materials
supply siutuation.
|
