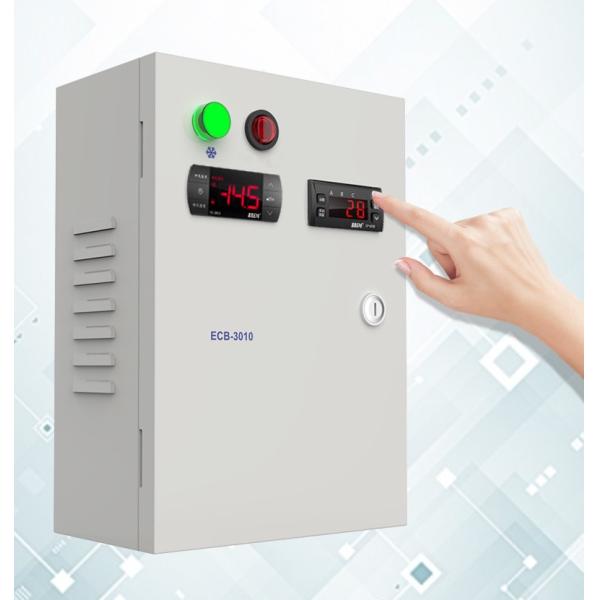

ECB-3010 Cold Storage Parts 5hp Electric Control Box IP67 Cold storage electric control box Refrigeration unit

ECB-3010 cold room parts 5hp elitech ecb electric control box

ECB-30 electronic control box
Features:
ECB-30 electric control box is a company designed for refrigeration unit optimization design of a product. Dual sensor settings, can control three-way load, full-featured, comprehensive protection, easy operation, stable and reliable performance, with excellent price.
Technical Parameters:

Power: three-phase five-wire (or three-phase four-wire) 380VAC ± 10% / 50Hz
temperature measurement and control range: -40 ~ +50 ℃;
temperature measurement and control precision: ± 0.5 ℃ -10 ~ +10 ℃, the rest ± 1 ℃;
compressor delay protection time: 0 ~ 9 minutes adjustable;
control the maximum capacity of the compressor (KW): 5.5 11 15
control the maximum capacity of fans (KW): 4
control the maximum capacity of frost (KW): 5.5 7.5 11

Three-way load control, can be achieved on the compressor, fan, defroster separate control;
Dual temperature sensor, the compressor and the defroster were temperature control, safer, energy saving;
hot air and electric two defrosting mode;
compressor comprehensive protection function;
automatic and manual control functions
sensor failure and over-temperature alarm function external;
adjustable delay compressor.

Professional refrigeration control

Adopt touch thermostat EK-3010
The touch button has a high waterproof level

No need for menu one-button setting, easy to operate,
Cost-effective

Single Refrigeration Control Output Compressor Individual Control

With phase loss protection, phase sequence protection,
Three-phase unbalance protection function

Compressor comprehensive protection, time delay adjustable
