AC 300A Toroidal Split Core Current Sensor For Energy Monitoring

SCTK667D Series 300A/5A Low Voltage Toroidal Split Core Current Sensor

The split-core current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. Apply to current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system. Current , power and energy monitoring device. Relay protection device.

Features:

• Test hole series size clamp leaker AC current transformer
• Wide inner window, allowing clamping of big cables or bus-bars
• Test range: 0 to 300A AC input, output of 0 to 5A
• Suitable for single-phase electricity meter as well as anti-tampering electricity meter
• Wide range of sizes to accommodate all the existing installations
• Various mechanical dimensions, highly custom-tailored
• It can save time and the installation costs.

Electrical Parameter

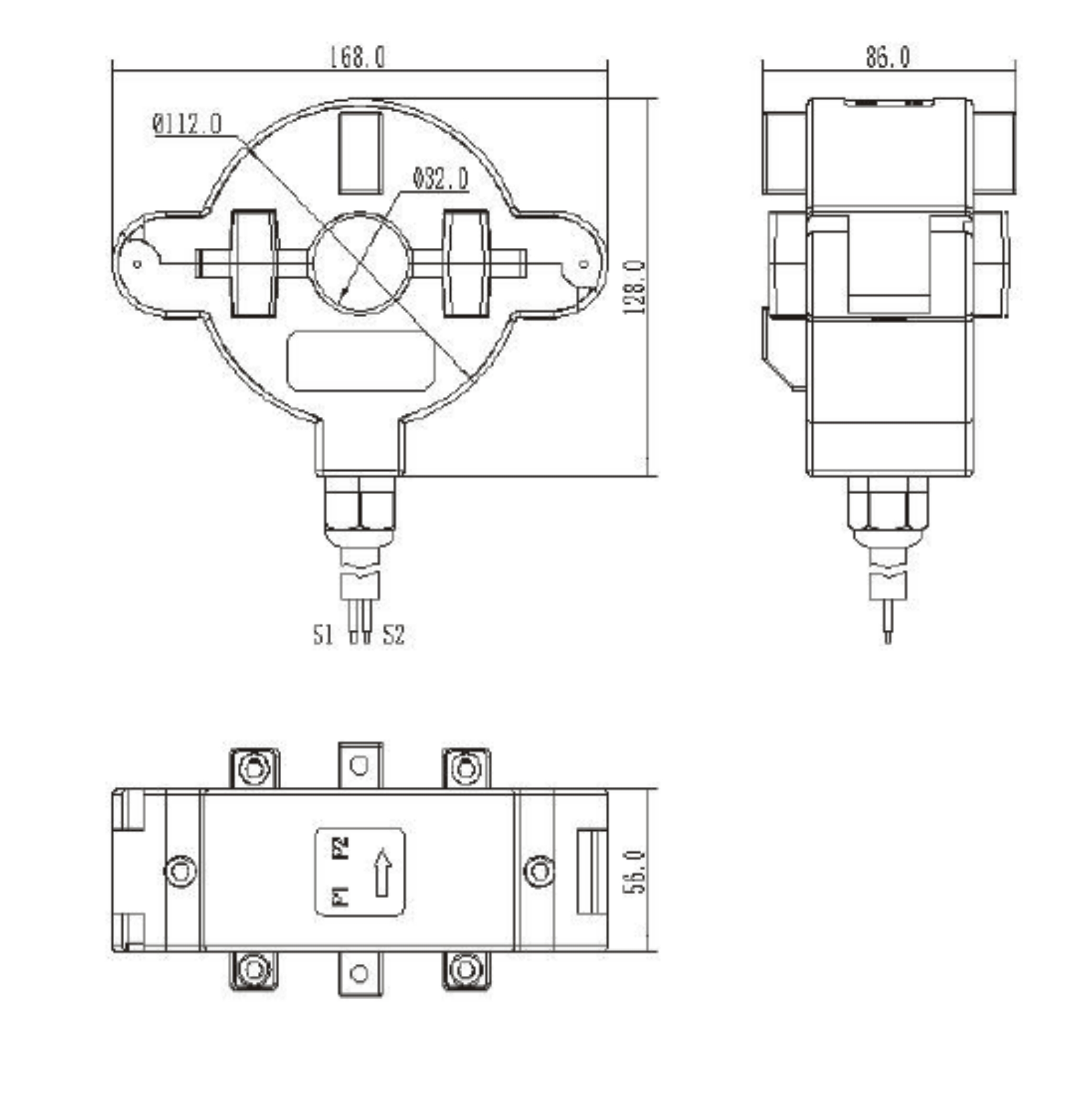

Mechanical Parameter

Type selection

Notes: Product specifications can be customized
