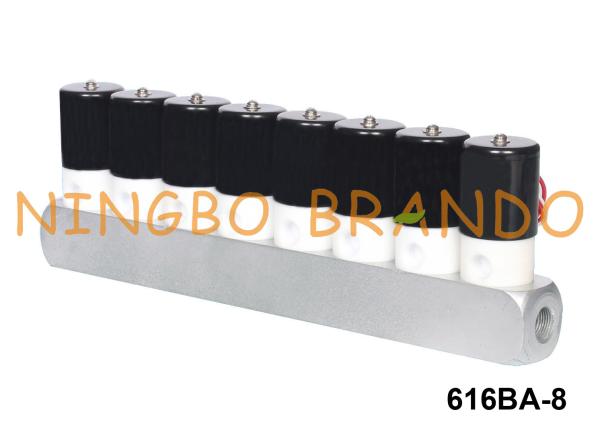

PTFE Diaphragm Solenoid Isolation Valve With Manifold 12VDC 24VDC

PTFE Diaphragm Solenoid Isolation Valve With Manifold 12VDC 24VDC

Product Features:

1. Working Medium: Corrosive Liquid, Acid and Alkali
2. Function: 2 Way, Normally Closed
3. Operation: Direct Acting
4. Working Pressure: 0 to 0.3 MPa
5. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 3mm, 6mm
7. Body Material: PTFE ()
8. Seal Material: PTFE ()
9. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Isolation Solenoid Valve:

Model	Port Size	Orifice Size	Cv	Min Pressure	Max Pressure		Seal Material	Body Material
					AC	DC
616BA301	1/8''	3mm	0.1	0 MPa	0.3MPa	0.3MPa	PTFE	PTFE
616BA602	1/4''	6mm	0.28		0.15MPa	0.15MPa
616BA603	3/8''	6mm	0.28
616BA604	1/2''	6mm	0.28
616BA605	3/4''	6mm	0.28
616BA606	1''	6mm	0.28

Main Dimension of Isolation Solenoid Valve:
