FR4 94v0 CEM1 175um PTFE HDI Printed Circuit Boards Design PCB Fabrication Assembly Technology Prototype

Abis Circuits Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 15 years development, we could make the PCB from 1L to 20L, with a monthly production capability of 60,000 square meters. Abis Circuits is providing high-quality bare PCB and PCB assembly service, including components sourcing, function test, conformal coating, and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.

Capacity

FAQ

Q1: How can I get a quotation?
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber

Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?

Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality checking always.

Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).

Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file be approved, production will start.

Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity

. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback.

​

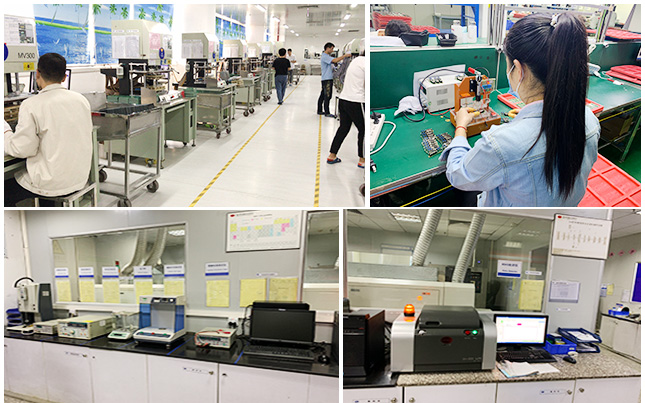

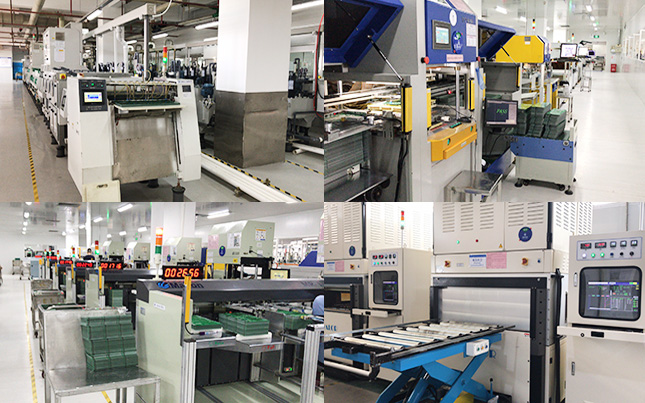

ABIS Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 7.0000 square meters.

Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security and others.

Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer satisfaction and support are what we have been strived for.

Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Aluminum base and flexible boards to our customer with fast turn and high-quality level.
