| Categories | Fiber Optic Cleaver Tool |
|---|---|
| Brand Name: | Tumtec |
| Model Number: | A9 |
| Certification: | CE RoHS FCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500sets |
| Delivery Time: | 5-8 work days |
| Packaging Details: | stander packing |
| Type: | fiber cleaver |
| Use: | FTTH |
| No. of Fiber: | 1. |
| Application: | Fiber cutting |
| Cutting angle: | <0.5 |
| Size: | 63*53*53mm |
| Fiber Type: | Single Fiber |
| Blade life: | 48000 cutting |
| Weight: | 280g |

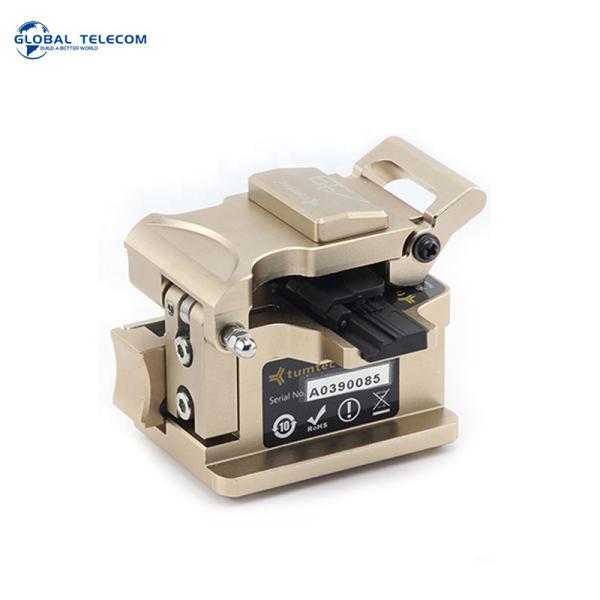

Ftth fiber optic cleaver cutter Tumtec A9 high quality optic cleaver fiber price
Operating Procedures:
1. Open the pressure fiberboard and cover plate, put bare fiber in
the fixture that was stripped coating (125mm/900mm), according to
user’s requirement to ensure cutting length.
2. Push to the front of the cutting slider (Figure), press and
close the pressure fiberboard and cover plate to fix optical fiber.
3. After close cover plate, ensure that the fiber is in a
horizontal line.
4. Push cutting slider back a one-time to finish cutting.
5. Open cover plate and pressure fiberboard, then take out the
fiber. In order to avoid damaging the fiber, fiber face don’t touch
anything after take it out.
6. After finish cutting, please clean up the broken fiber and don’t
damage blade for later use.
| Suitable fiber | Single fiber |
| Coating diameter | 0.25mm&0.9mm |
| Cladding Diameter | 125um |
| Cleaving length | 9~16mm(ø0.25mm) 10~16mm(ø0.9mm) |
| Cleaving angle | 0.5° |
| Blade life | 48000 times |
| Weight | Approx. 265g |
| Dimension | 63(W ) X 55( D ) X 56( H ) mm |
|
