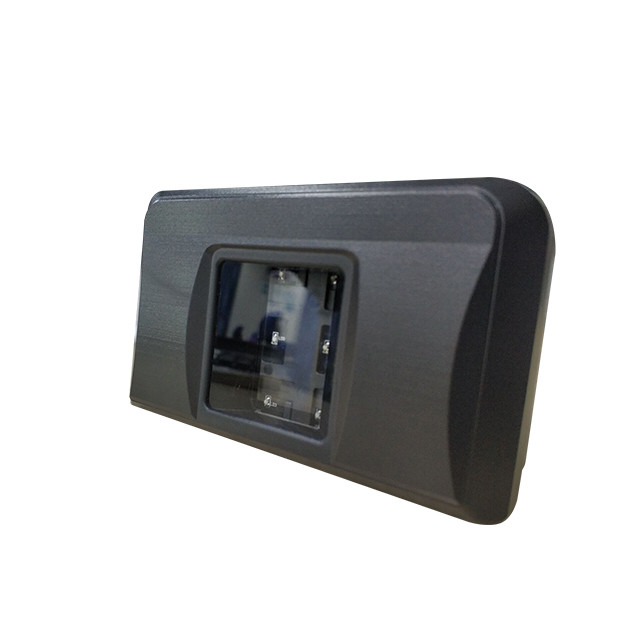

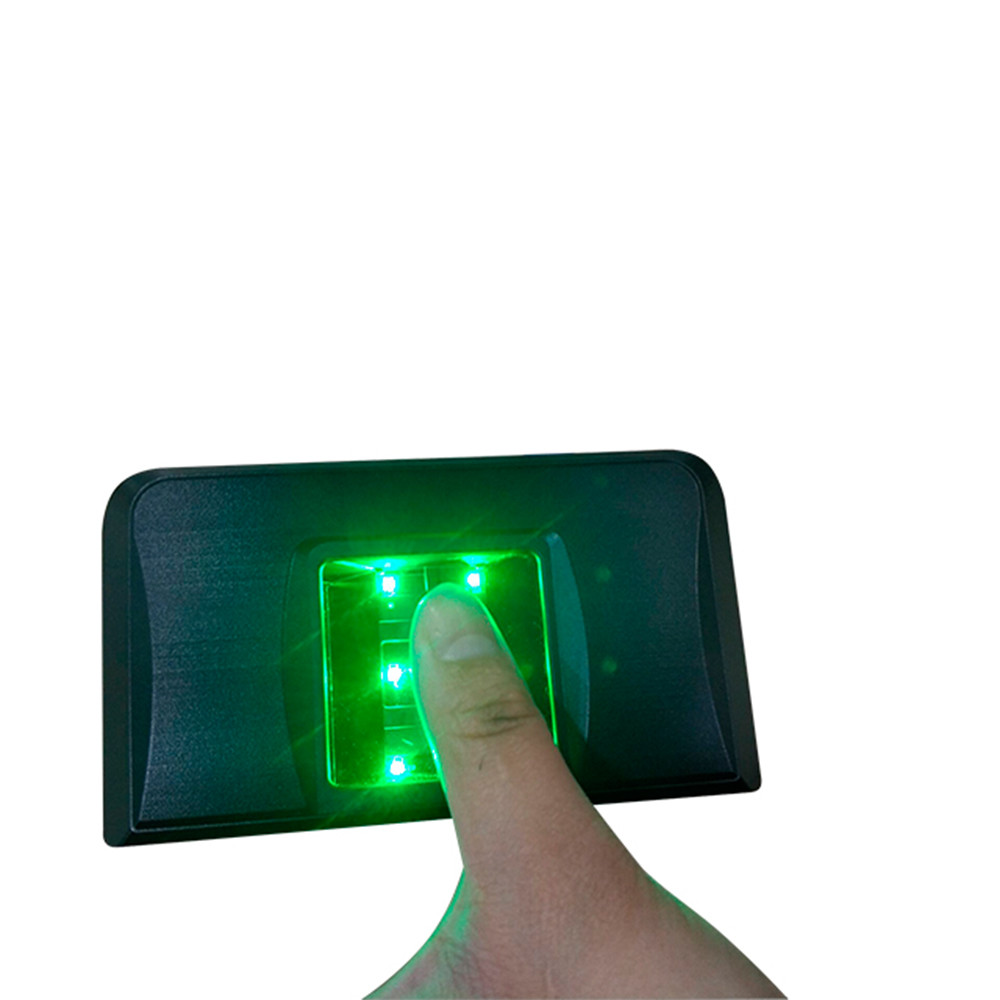

HFSecurity HFOS300 Optical Sensor Fingerprint Collection And Fingerprint Scanner Device
HF-OS300 is dual & rolling fingerprint scanner, with FAP30 size optical sensor, USB interface
charging and communication port. A large optical capture area was applied for fingerprint collection.
It can be used in wide variety of identity authentication system.
| Electrical Parameter | |
| Power Voltage | 5.0V±5% supplied by USB |
| Power voltage | |
| Working current | <200 mA |
| interface | USB 2.0 |
| Working Environment | |
| Temperature | 0°C - 55°C |
| Storage Temp | -10°C - 60°C |
| Humidity | 10% - 90% |
| Storage humidity | 20%(±3) - 90%(±3) |
| Fingerprint | |
| Resolution | 500 DPI (-0.5%~+0.5%) |

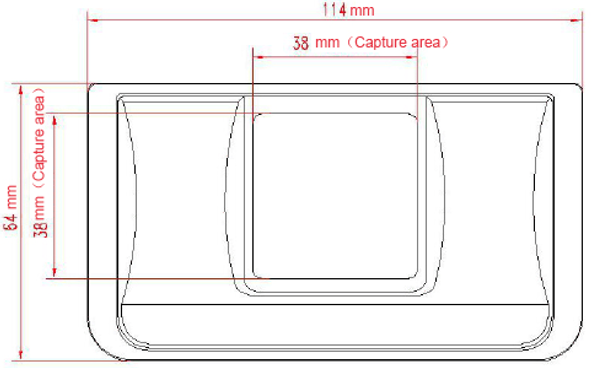

| Capture window size | 38mm*38mm |
| Effective window size | 32.5mm*32.5mm |
| Image size | 640*640 pixels |
| Capture time | ≥25 FPS(≤66ms) |
| Image distortion | ≤1% |
| Grayscale | 8-bit, 256 |
| Gray level | 225-255 |
| Illumination | ≤300lx |
| Weight | 146g |

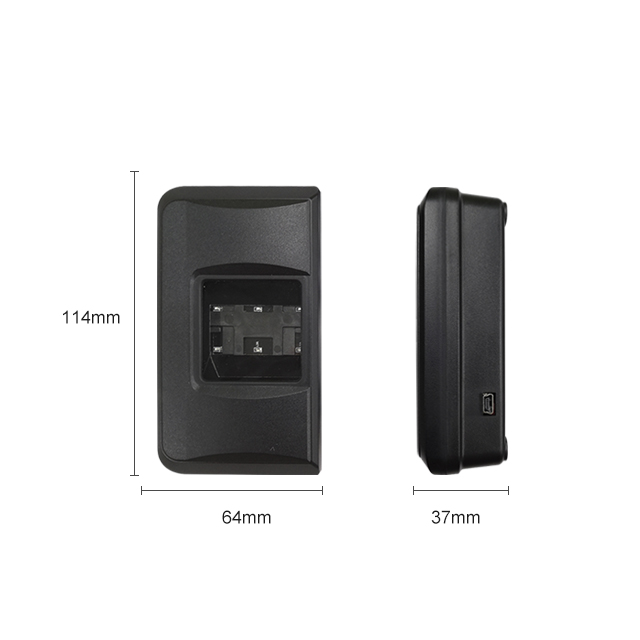

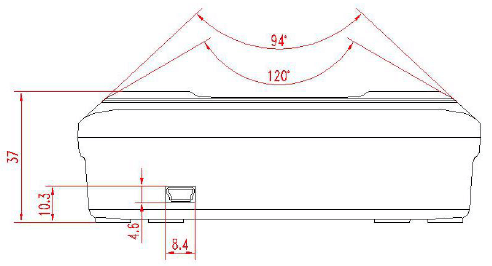

| Dimension | 114mm(L) *64mm(W) * 37mm(H) |
| Fingerprint image quality | FBI CJIS-RS-0010 IAFIS Image Quality Specification Appendix F |
| OS | Linux, Windows, Android |
 |  |  |
 |  |  |
 |  |  |
| TEL | +86-2367305242 | Company QR |
| Whatsup | +13667681778 |  |
| HuiFan Technology | ||
| fb@hfcctv.com | ||
| Linked In | Huifan Technology | |
| Youtube | Huifan Technology Co.,Ltd | |
| info@hfcctv.com | ||
| Address | D-13,Dongli International Building Longtousi,Yubei District,Chongqing,China | |
|
HFSecurity FAP20 OS1000 Waterproof A FBI PIV Certified Optical USB Fingerprint Scanner

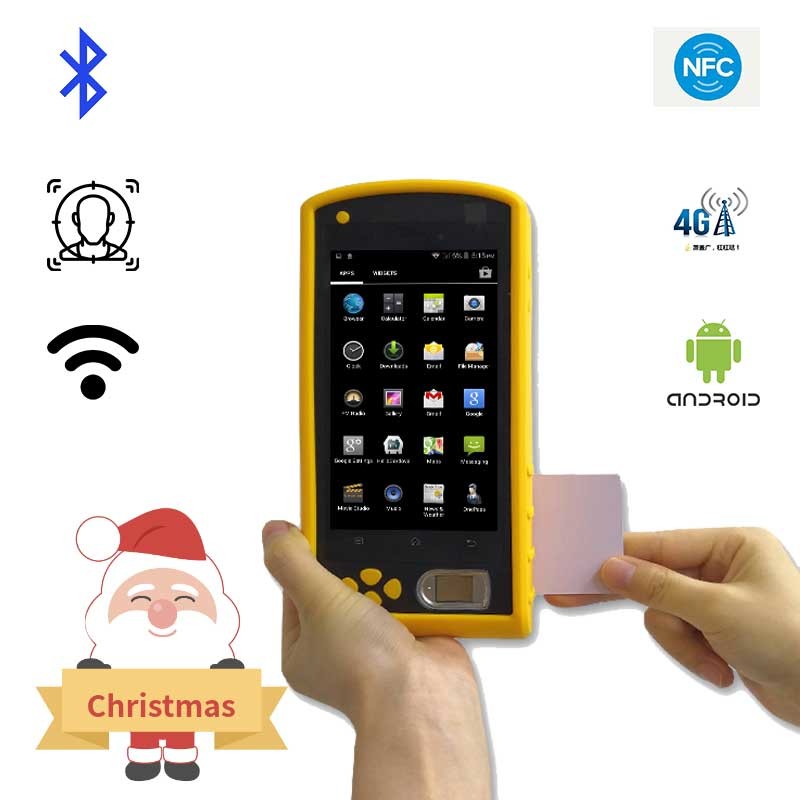

Android Portable Handheld Programmable Bluetooth NFC Police USB Biometric Fingerprint Scanner for Time Attendance
HF Security OS300 Android Linux Windows Dual USB Biometric Fingerprint Scanner
Biometric Bluetooth Portable Otg Support Android Fingerprint Scanner HF7000

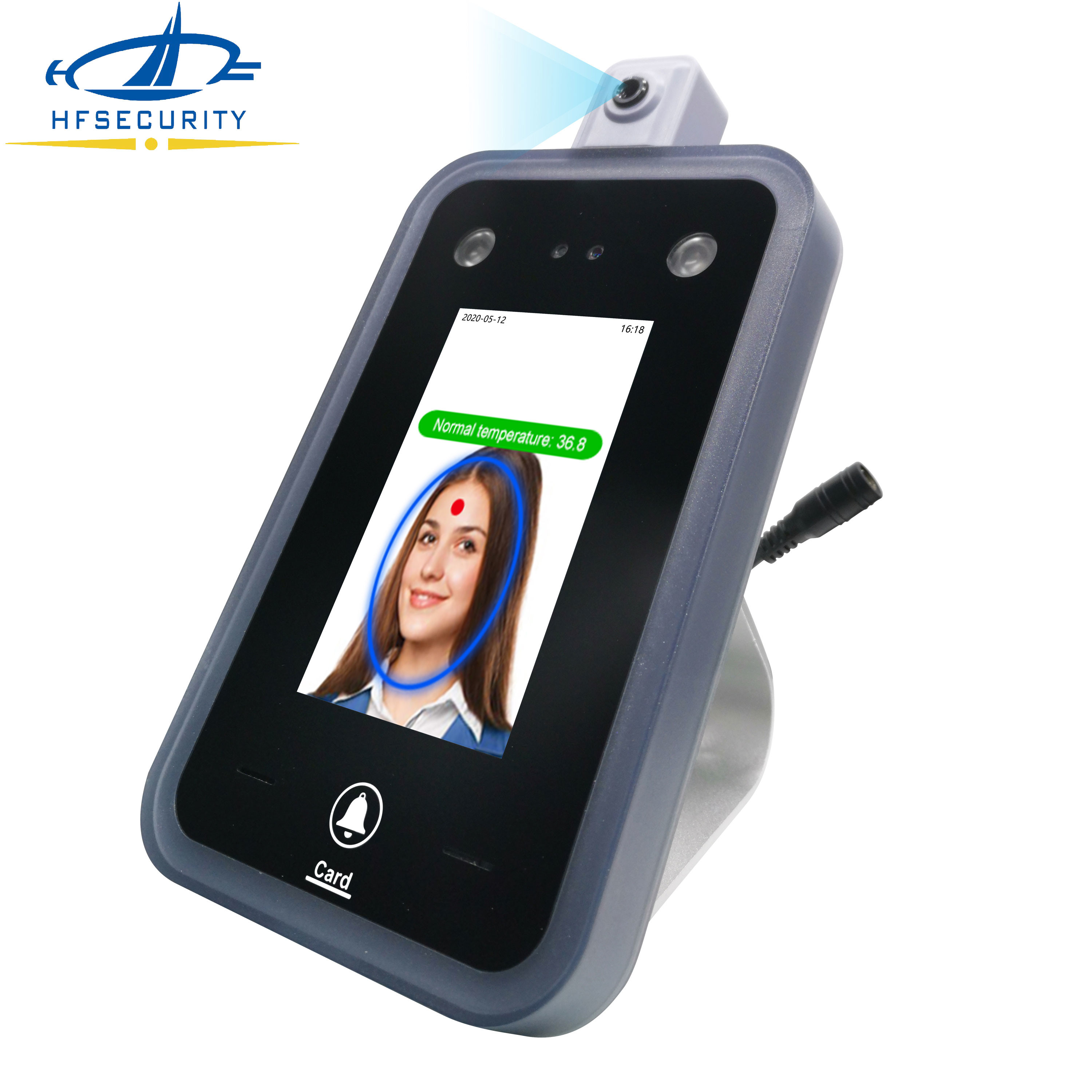

HF Security RA08TP USB 2.0, RJ45, Externale QR CodeBiometric Face Recognition Multi Person Recognition For Shool
