| Categories | Multifunction Color Sorter |
|---|---|
| Brand Name: | WENYAO |
| Model Number: | WYCS4-256 |
| Certification: | CE & ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | Negotiable Price |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100PCS Per Month |
| Delivery Time: | 15 to 20 working days |
| Packaging Details: | Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M |
| Function: | ccd color sorter |
| Warranty: | 2 Years warranty |
| Sorting accuracy(%): | 99.99% |
| Application: | CCD Color Sorter |
| Condition: | New color sorting |
| After-sales service provided: | Engineers available to service machinery overseas,Field installation,commissioning and training,Overseas service center available |
| Color: | White ,blue ,green ,yellow can be customized |
| Camera: | Toshiba |
| Rejection Rate: | 30:1 |
| Air Pressure: | 0.6-0.8 |
| Whole Power: | 2.3KW |
| Voltage: | 220V 50HZ, 220V 50HZ |
| Company Info. |
| Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Factory Price Colored Camera CCD cocoa beans ccd sorting machine
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The cashew sorting technology is according to the color differences of cashew materials, using a high-resolution CCD optical sensor to separate black,red,broken,small and moldy etc.Sorting machines improve product quality and add social benefits.
1. With Over 14 years experiences.focus on sorter machine.
2. After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and w.
3. We have service station, cooperate reseller in more than 100 countries.
4. Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
Customer Service:
| Fault phenomenon | Fault cause | Solution |
| Ejector leakage | Dust inside the ejector | Cyclic test of the ejector |
| ejector has been damaged | Replace ejector | |
| Ejector fails to operate. | Poor contact between the plug behind ejector and the socket | Re-plug, repair the poor contact position |
| Disconnection occurred to the valve core | Replace the ejector | |
| Color sort board has been damaged | Replace color sort board | |
| Ejector with small spray volume | Dust inside the ejector | Cyclic high frequency test of the ejector |
| Low air pressure | Check pressure gauge and relevant air circuit | |
| Material flying | Big difference in temperature between the material and the material chute | Adjust temperature of the chute to approximate that of the material. |
| Dust agglomeration | Clean the chute with soft cloth | |
| Chute with scratch | Sand papering or replace it | |
| Frequent operation for solenoid valve | Wrong ejector | Correctly select sort mode |
| Position of background plate not properly set | Readjust background plate | |
| No color separation | Low sensitivity | Readjust sensitivity |
| haven't been power on | Power on the solenoid valve power supply | |
| Poor Color Separation Effect | Dust on the sorting glass | Remove dust manually or by soft cloth |
| Incomplete for the color sorter | Check or replace rubber strip | |
| Poor Separation Effect of Complete Machine Side | Incomplete or poor ash removing for the rodless cylinder | Adjust ash wiper and the ash wiping speed |
| Color sorter stops working frequently | High sensitivity | Readjust the sensitivity |
| Improper adjustment of background plate | Readjust the background plate | |
| Raw material with high quantity of impurity | Reduce the yield | |
| Color sorter is under pressure | Check pressure; readjust if the gas circuit is too far away from the sorter | |
| Frequent pressure protection | Clean and open the pipeline by cleaning or replacing the filter element | |
| Motor three-phase winding is damaged | Replace the motor | |
| A.C. contactor damaged or poor contact | Maintain or replace A.C. Contactor | |
| Thermorelay damaged or poor contact | Maintain or replace thermorelay | |
| 380V power supply phase shortage | Maintain charging line | |
| Three-phase voltage imbalance | Adjust transformer to achieve three-phase voltage balance | |
| Control switch circuit damaged or with problem | Check the control switch and circuit |
Advantage:
A: Free direct the installation and operation of the equipments and
train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.
D: Timely, professionally
Application of Color Sorter Machine :
The automatic color sorting machine can directly replace the manual sorting work to achieve the purpose of improving production efficiency, improving accuracy and reducing labor, and reducing enterprise operating costs and labor costs. The automatic sorting machine can select product combinations with different weights, sizes, colors and other characteristics to select the working line, eliminating the financial and time of manual operation, and more accurate and precise. Widely used in food sorting, fruit sorting, food sorting, ore sorting, garbage sorting and other industrial product sorting industries.
Sorting Effect:

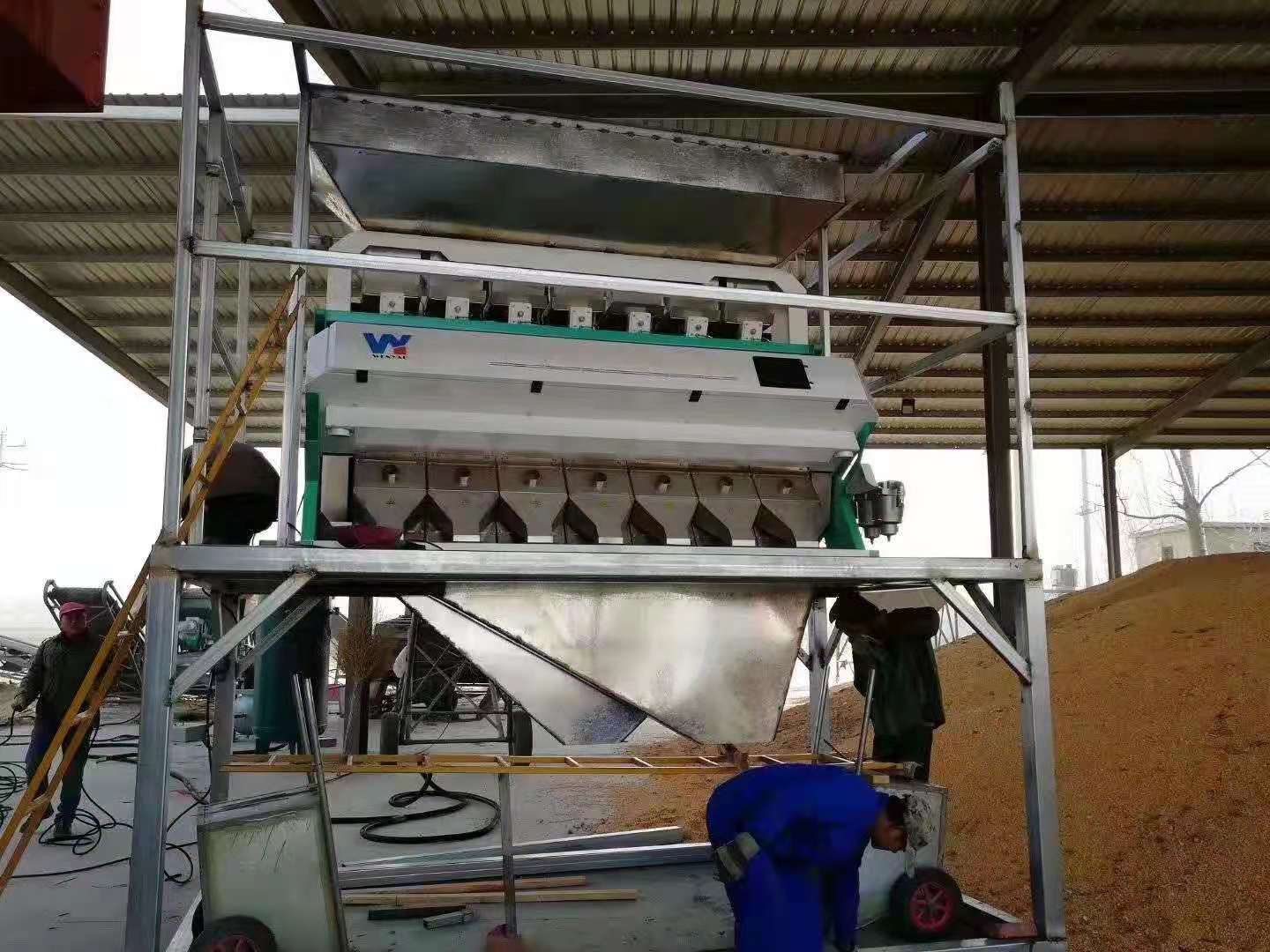

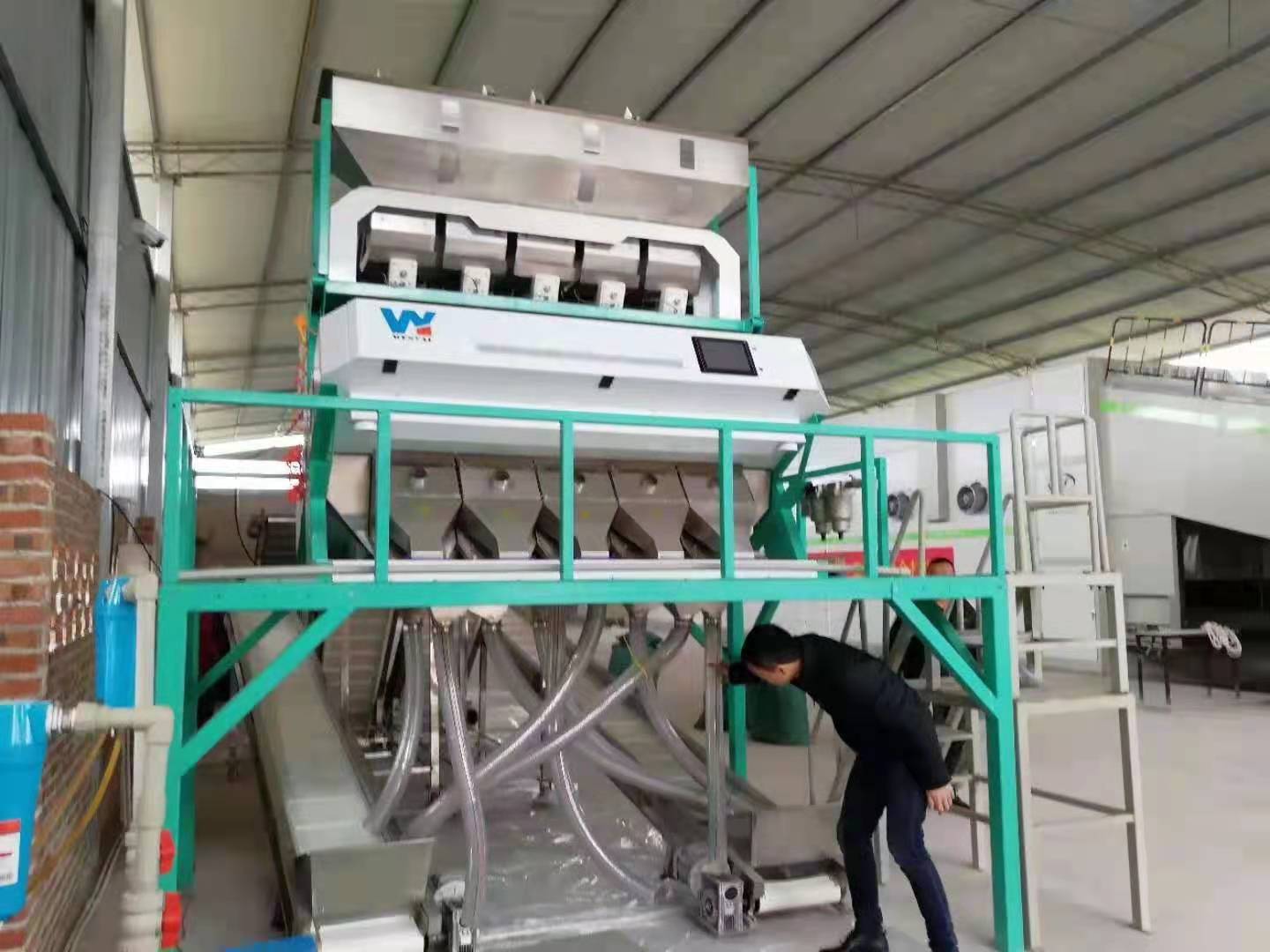

Customer's Site :
|
