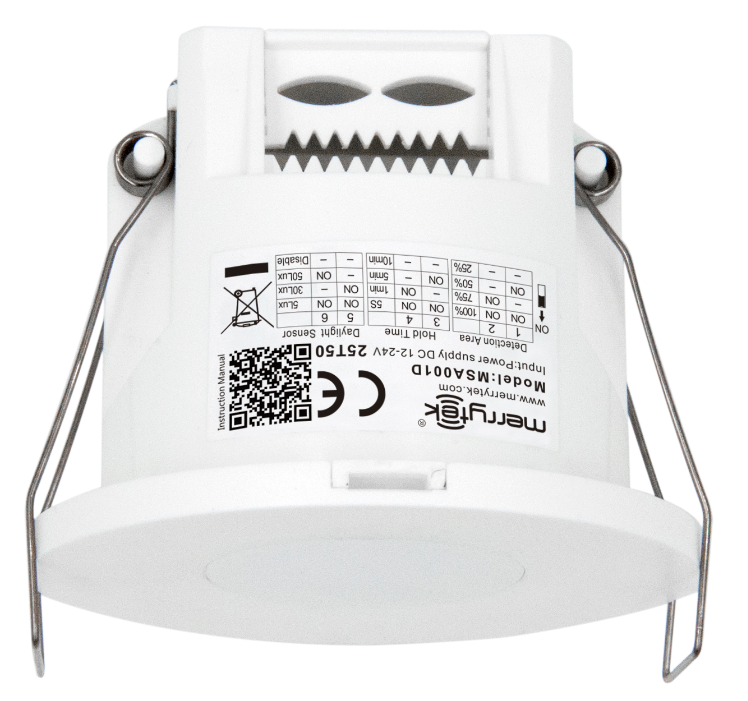

Stand Alone Compact 5.8G Microwave Motion Sensor 45mm Cut Size For presence detectors

Stand Alone Compact 5.8G Microwave Motion Sensor 45mm Cut Size For presence detectors application

​

1. Feature

1) Motion sensor and light sensor are Integrated

2) Use patented 5.8GHz Low Impedance Microwave Antenna, anti wireless interference, such as Wi-Fi, Bluetooth, 5G, etc.
3) Parameters can be set by the DIP switch.
4) Compact size for Independent flush mounting.
5) Silent reed switch relays for some special applications.

2. Parameter

3. Function

This product is a dry contact motion sensor developed for the IoT sensing market. P1-P2 (please refer to
5. Wiring) is a normally open relay, when the sensor detects a motion, the switch is closed. When the sensor
detects no one in the environment, the relay will be disconnected after a preset hold time. So that the smart
home system can identify whether there are people in the environment according to the state of this switch.

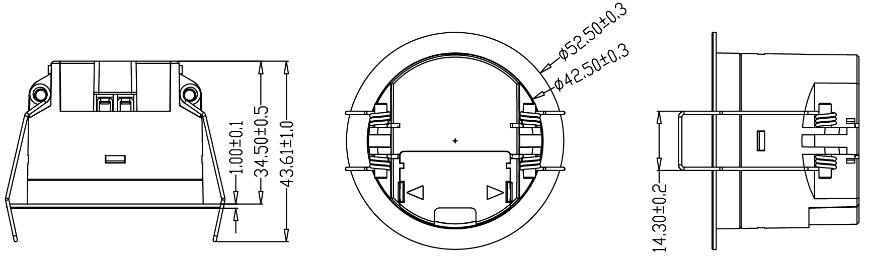

4. Dimension

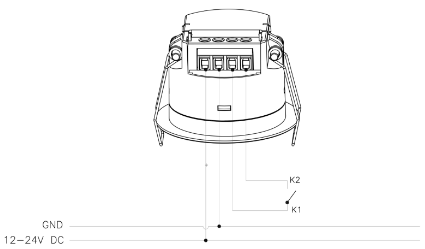

5. Function structure & Wiring

6. Initialization

K1 K2 will be closed for 10 seconds, then open; the Sensor does not detect motion during initialization.

7. Default Setting

Detection area: 100%, Hold time: 2s,Daylight sensor:Disable

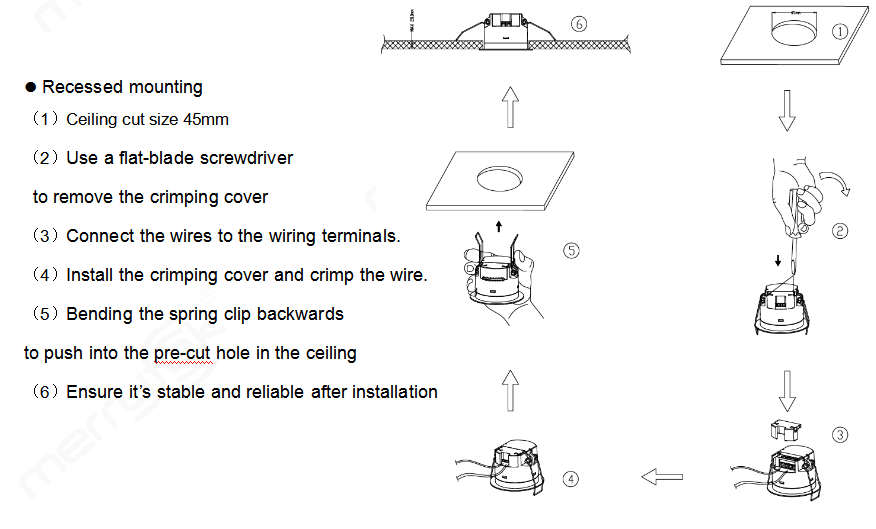

8. Installation

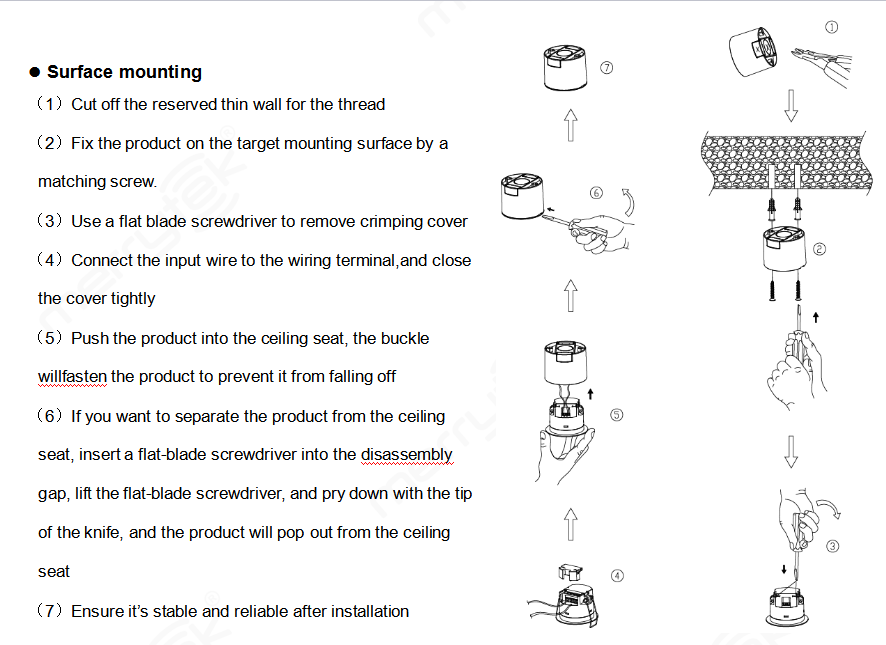

PS: The surface mounting kits can be purchased separately from the supplier.

9. Sensor detection range:

MSA001D E is advised recess mounting or surface mounting, and the detection range is below:

9. Application Notice

1. The sensor should be installed by a professional electrician, please cut off the power before installing, wiring, changing settings, etc.

2. The product has a good penetrating ability to plastic and wooden objects, but there should be no metal accessories or metal shells, glass shells, etc. in front of and near the antenna of the microwave module, otherwise it will affect the transmission and reception of the microwave antenna

3. This product is only suitable for indoor installation. During semi-outdoor or outdoor installation, wind and rain may be regarded as motion signals to trigger the induction.

4. The sensing distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, which is 165cm/65kg tester, and it is tested in an open indoor environment. Should avoid long-term vibration equipment or moving objects around the sensor, the vibration signal will be regarded as a mobile signal to trigger the induction

5. If a pet passes by in the detection area, the sensor may be triggered.

6. The daylight threshold is in a sunny environment, with no shadows, and ambient light diffuse reflection conditions. In different periods, climates, and environments, the illuminance value detected by the light sensor may be different.

7. It is recommended that the product installation distance be greater than 2m, and the product and router installation distance be greater than 2m.

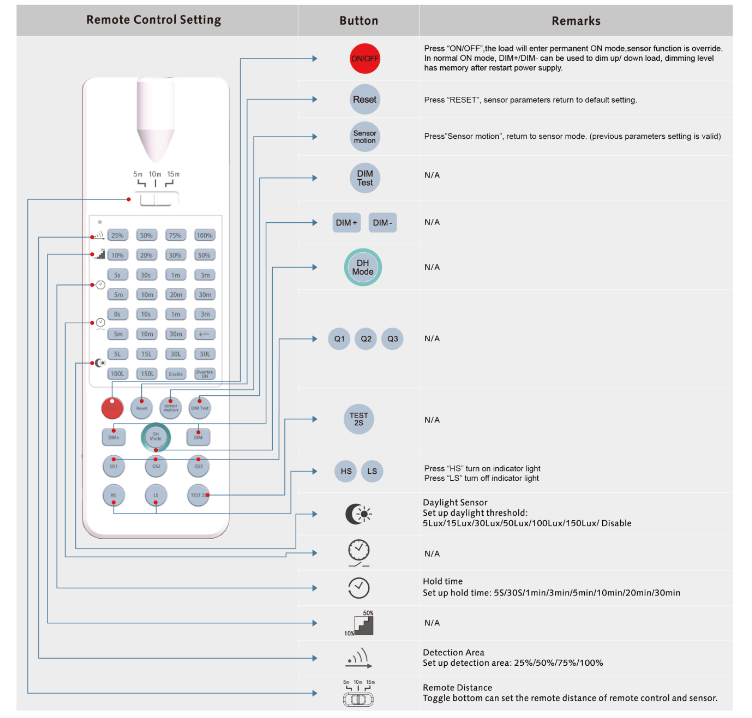

10. Remote Control
