| Categories | Hot Dip Galvanized Steel Grating |
|---|---|
| Brand Name: | Jiongcan |
| Model Number: | JC-RD-023 |
| Certification: | ISO9001 |
| Place of Origin: | Anping China |
| Phot Dip Galvanized Steel Gratingroduct name: | hot dip galvanized grating |
| Standard: | AISI, ASTM, BS, DIN, GB, JIS |
| Warranty: | 1 year |
| Thickness: | 3-10mm |
| Certificate: | ISO9001,CE |
| The material: | Q195, Q235，Q345 |
| Surface treatment: | Hot Dipped Galvanized |
| Raw materia: | Cold Drawn Wire |
| Material: | Q235,mild Steel,Stainless steel |
| Bearing bar pitch: | 25mm/30mm/35mm/40mm |
Hot dip zinc steel grille is the steel grille production after the
hot dip zinc antirust treatment.
There are two kinds of hot dip galvanizing and electric
galvanizing.
Hot dip galvanized steel grid according to the production process,
divided into pressure welding hot dip galvanized steel grid and
pressure lock hot dip galvanized steel grid;
According to the surface shape of hot dip galvanized flat steel, it
can be divided into toothed hot dip galvanized, planar hot dip
galvanized, I hot dip galvanized and compound hot dip galvanized
steel grid.
Hot dip galvanized steel grid according to the manufacturing
process, divided into welding hot dip galvanized steel grid and
pressure lock hot dip galvanized steel grid;
According to the surface shape of hot dip galvanized flat steel, it
is divided into toothed hot dip galvanized, planar hot dip
galvanized, I hot dip galvanized and composite hot dip galvanized
steel grid.

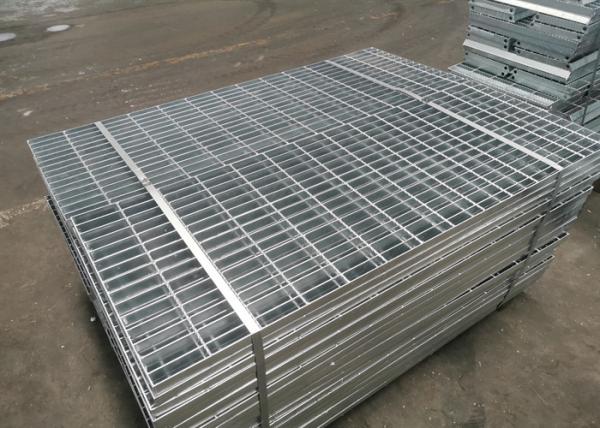

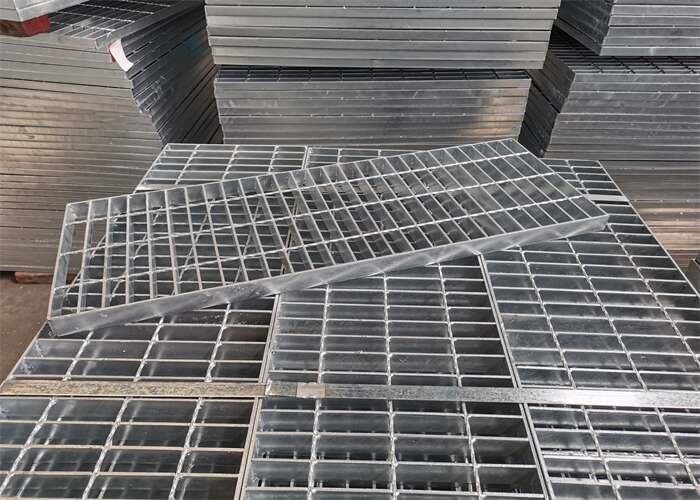

Hot Dip Galvanized Steel Grating Specifications
| No. | Item | Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, |
| 8 | Application | -Rotation ways, channels, and platforms for pump rooms and engine
rooms in various ships; |
1. Flat steel: the material is Q235A or stainless steel, with ordinary plane type, anti-skid tooth type and section I type.
Common specifications are 20*5, 25*5, 25*3, 32*5, 32*5, 40*5, 40*3, 50*5, 65*5, 75*6, 100*8, 100*10 and so on.
2. Bar: round steel, twisted square steel, square steel or
hexagonal steel made of Q235A or 304 stainless steel.Twisted square
steel is made by drawing and twisting the square die, and its
common specifications are 5*5, 6*6, 8*8mm, etc.
Hot Dip Galvanized Steel Grating Application
Uses: Widely used in petrochemical, power plant, water plant,
sewage treatment plant, municipal engineering, sanitation
engineering and other fields of the platform, walkway, trestle,
ditch cover, manhole cover, ladder, fence, guardrail, etc
Hot Dip Galvanized Steel Grating Advantages
Features: high strength, light structure: the solid grid pressure
welding structure makes it has high bearing capacity, light
structure, easy to hoisting and other characteristics;Beautiful
appearance, durable: hot dip zinc surface treatment makes it has a
good anti-corrosion ability, the surface luster is beautiful;Good
ventilation, lighting, heat dissipation, explosion-proof and skid
proof performance;Prevent accumulation of dirt.
Hot Dip Galvanized Steel Grating Process:
Steel plate process with manual welding process and welding machine
process, surface treatment of hot dip galvanizing and painting, the
composition of ordinary steel plate is made of flat steel and twist
steel welded together, is composed of flat steel welded with
special specifications, steel grid plate can be divided into common
flat steel and sawtooth toothed plates, serrated flat non-slip
effect is more outstanding.
The connection mode of steel grid plate is fixed and installed with
buckle connector, which is composed of three parts.
Hot-dip galvanized steel grid plate can be installed in two ways:
welding and clamping.The advantages of welding are permanent fixation, not loosening,
specific position in the first flat steel at each corner of the
steel grid plate, the length of the weld is not less than 20mm, the
height is not less than 3mm of fillet welding.The advantages of the mounting clip are that it does not destroy
the hot dipping zinc layer and it is easy to disassemble. Each
plate needs at least 4 sets of mounting clips. The number of
mounting clips increases with the increase of the length of the
plate.The safest method is to weld the screw head directly to the beam
without clamping down, so that the steel grille plate will not slip
from the beam due to the loosening of the clamping.
Pre-sale service:
After the customer orders, we will have professional technical
personnel to contact with the customer, in order to meet the
customer's technical inquiry and production schedule.
|
