Customized Motor Test System Test Stand

Customized Motor Test System & Test Stand

Introduction

The electric drive test system applies the power system of pure electric passenger vehicle or commercial vehicle and hydrogen fuel cell hybrid vehicle to provide a simulation test of the new energy power system. The test device includes the motor, motor controller, gearbox, and electric drive system.
The electric drive bench test system is mainly used for performance calibration and verification of vehicle power systems. It has the ability to load vehicle shaking models for simulation verification of mechanical components. The system operation adopts manual or program control, and can synchronously record physical parameters such as voltage, current, power, speed, torque, and temperature, It is used to calculate the efficiency of the motor and controller and draw the cloud diagram curve.

System safety protection - extend the service life of the equipment

1. A double-loop mode protection mechanism is adopted for system control to effectively create a safe operating environment.
2. Equipped with the vibration monitor unit, it can monitor the running state of the test system and the electric drive powertrain at the same time, collect the real-time data and calculate the data through the data algorithm.
3. Carry out spectrum overall value (SOA) system management. If the system is abnormal, it will be fed back to the control end for alarm or shutdown.

Data synchronization measurement to improve experimental reliability

1. The data monitoring interface can display the instantaneous value of the test in real-time, including voltage, current, speed, torque, input power, output power, efficiency, temperature, etc
2. It can collect data synchronously and adjust sampling frequency according to different test requirements
3. FD data or other physical signals can be collected synchronously

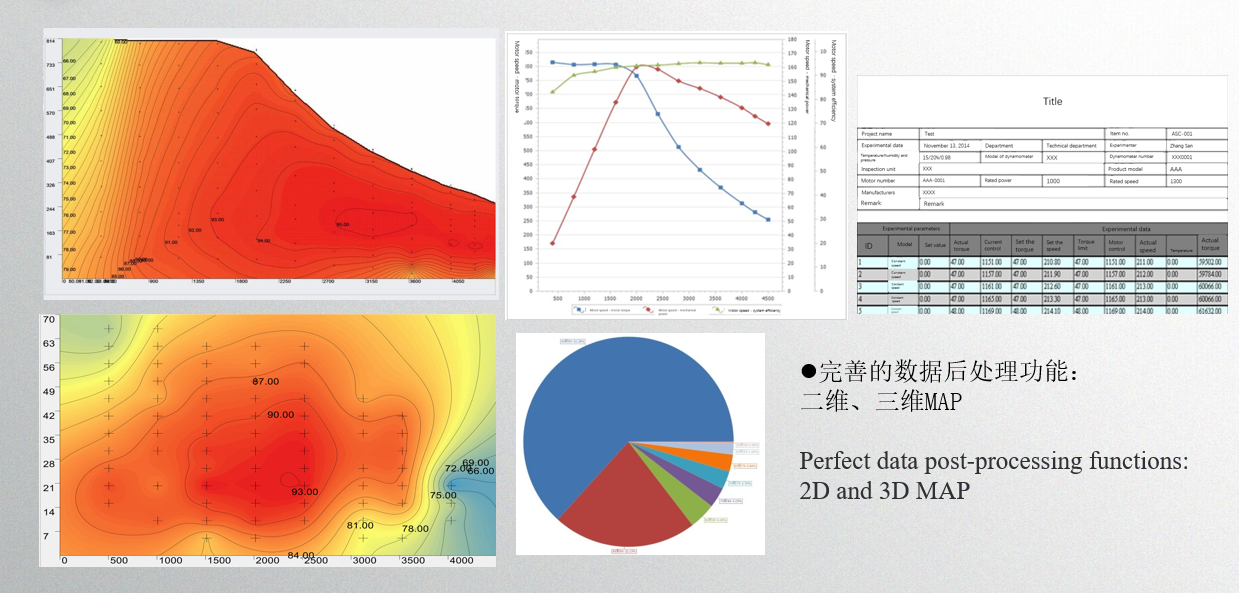

TCM Testing System for New Energy(Perfect data post-processing functions: 2D and 3D MAP)

Seelong Intelligent Technology (Luoyang) CO., LTD. has a registered capital of 10 million (about 1.45 million dollars) which is located in Luoyang-the beautiful Peony City, the ancient capital. Seelong is a high-tech enterprise specializing in the design, manufacture and sales of power system test equipment for aerospace, automotive, new energy and other fields. Seelong is dedicated to providing customized one-stop test equipment solutions to our customers.

Our main products include power dynamometers, measurement and control systems, DC power supplies and conditional guarantee system.

Seelong is committed to innovation and technology development. At the same time, the company has established long-term cooperation with Tsinghua University, Shandong University and many other Chinese scientific institutions. We have obtained more than twenty invention patents and twelve software copyrights, and have been providing professional equipment and services for more than 100 users worldwide, and our cost-effective products and quality services have won the trust of customers at home and abroad, and we have established long-term win-win strategic partnerships.

The company has always adhered to the business philosophy of "scientific and technological innovation as the mission, quality service as the purpose". Seelong will provide customers with high intelligence, high precision, high speed, high reliability and high value-added products and services.

All the staff of Seelong Intelligent Technology (Luoyang) Co., Ltd warmly welcome domestic and foreign customers sincere cooperation, hand in hand with the future, common development.
