| Product name: | AL150 F2D2/F4D2 One Way Roller Type Backstop Clutch |

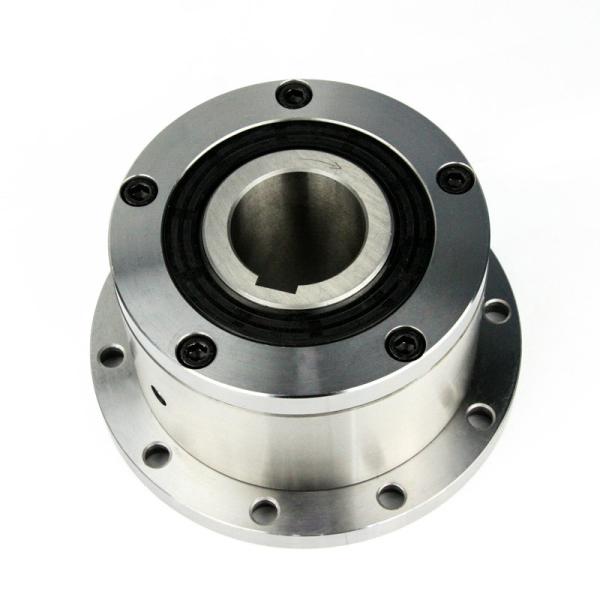

One Way Roller Type Backstop Clutch Cam Freewheel Clutch Bearing
Product Description of AL150 F2D2/F4D2 One Way Roller Type Backstop Clutch
Types AL..F2D2/F4D2 are roller type freewheels, self contained, sealed and bearing supported, using two
160.. series bearings. Units are delivered oil lubricated.
Primarily used as overrunning or indexing clutches, the cover combination is chosen according to the type
of drive, as shown overleaf. D2 cover is used to close the unit. It is equipped with two screws for oil filling,
drain and level. The shaft seal is a Vring type. Cover and seal have been designed to be oil proof with
minimum drag torque.
We recommend the unit is supplied assembled. Please specify inner race direction of rotation seen from
the D2 flange.
Technical Datas
| Item | AL..F2D2 F4D2 |
| Brand | SUMA |
| Material | GCr15 |
| Bore size | 15-250 mm |
| Outer Diameter | 62-610 mm |
| Width(L1) | 42-396mm |
| Torque | 55-287500 Nm |
| Drag torque | 11-6500 Ncm |
| Weight | 0.9-680 kg |
| Delivery time | 15 days |
Dimension and Capacity
| Type | Size | Overrunning speeds | Wei | Drag Torque | ||||||||||||||
| dH7 (mm) | TKN1 (Nm ) | Nimax2) (min-1) | Namax3) (min-1) | Dn7 (mm) | L1 (mm) | D5 (mm) | D3 (mm) | z (mm) | O mm | D4h7 mm | t mm | L5 mm | K mm | s mm | f mm |
(kg) | TR (Ncm) | |
|
AL..F2D2 AL..F4D2 | 12 | 55 | 2500 | 7200 | 62 | 42 | 85 | 72 | 3 | 5.5 | 42 | 3 | 44 | 0.5 | 10.3 | 0.5 | 0.9 | 11 |
| 15 | 125 | 1900 | 6500 | 68 | 52 | 92 | 78 | 3 | 5.5 | 47 | 3 | 54 | 0.5 | 10.3 | 0.8 | 1.3 | 15 | |
| 20 | 181 | 1600 | 5600 | 75 | 57 | 98 | 85 | 4 | 5.5 | 55 | 3 | 59 | 0.5 | 10.8 | 0.8 | 1.7 | 18 | |
| 25 | 288 | 1400 | 4500 | 90 | 60 | 118 | 104 | 6 | 6.6 | 68 | 3 | 62 | 0.5 | 10.5 | 1 | 2.6 | 36 | |
| 30 | 500 | 1300 | 4100 | 100 | 68 | 128 | 114 | 6 | 6.6 | 75 | 3 | 70 | 0.5 | 11.3 | 1 | 3.5 | 48 | |
| 35 | 725 | 1100 | 3800 | 110 | 74 | 138 | 124 | 6 | 6.6 | 80 | 3.5 | 76 | 1 | 11.8 | 1 | 4.5 | 60 | |
| 40 | 1025 | 950 | 3400 | 125 | 86 | 160 | 142 | 6 | 9 | 90 | 3.5 | 88 | 1 | 13.8 | 1.5 | 6.9 | 84 | |
| 45 | 1125 | 900 | 3200 | 130 | 86 | 165 | 146 | 8 | 9 | 95 | 3.5 | 88 | 1 | 13.8 | 1.5 | 7.1 | 94 | |
| 50 | 2125 | 850 | 2800 | 150 | 92 | 185 | 166 | 8 | 9 | 110 | 4 | 94 | 1 | 12.8 | 1.5 | 10.1 | 158 | |
| 55 | 2625 | 720 | 2650 | 160 | 104 | 204 | 182 | 8 | 11 | 115 | 4 | 106 | 1.5 | 16.8 | 2 | 13.1 | 150 | |
| 60 | 3500 | 680 | 2450 | 170 | 114 | 214 | 192 | 10 | 11 | 125 | 4 | 116 | 1.5 | 16.3 | 2 | 15.6 | 160 | |
| 70 | 5750 | 580 | 2150 | 190 | 134 | 234 | 212 | 10 | 11 | 140 | 4 | 136 | 1.5 | 17.8 | 2.5 | 20.4 | 360 | |
| 80 | 8500 | 480 | 1900 | 210 | 144 | 254 | 232 | 10 | 11 | 160 | 4 | 146.3 | 1.5 | 20.3 | 2.5 | 26.7 | 360 | |
| 90 | 14500 | 380 | 1700 | 230 | 158 | 278 | 254 | 10 | 14 | 180 | 4.5 | 161 | 1.5 | 20 | 3 | 39 | 680 | |
| 100 | 20000 | 350 | 1450 | 270 | 182 | 335 | 305 | 10 | 18 | 210 | 5 | 184 | 2.5 | 28 | 3 | 66 | 880 | |
| 120 | 31250 | 250 | 1250 | 310 | 202 | 375 | 345 | 12 | 18 | 240 | 5 | 204 | 2.5 | 28.5 | 3 | 91 | 1200 | |
| 150 | 70000 | 180 | 980 | 400 | 246 | 485 | 445 | 12 | 22 | 310 | 5 | 249 | 2.5 | 31 | 4 | 186 | 1350 | |
| 200 | 175000 | 120 | 750 | 520 | 326 | 625 | 565 | 18 | 26 | 400 | 5 | 328 | 3 | 40 | 5 | 425 | 4200 | |
| 250 | 287500 | 100 | 620 | 610 | 396 | 740 | 680 | 20 | 33 | 480 | 5 | 398 | 3 | 45 | 5 | 680 | 6500 | |
| ALM..F2D2 ALM..F4D2 | 25 | 388 | 1100 | 2800 | 90 | 60 | 118 | 104 | 4 | 6.6 | 68 | 3 | 62 | 0.5 | 10.5 | 1 | 2.7 | 41 |
| 30 | 588 | 1000 | 2500 | 100 | 68 | 128 | 114 | 6 | 6.6 | 75 | 3 | 70 | 0.5 | 11.3 | 1 | 36.65 | 64 | |
| 35 | 838 | 900 | 2400 | 110 | 74 | 138 | 124 | 6 | 6.6 | 80 | 3.5 | 76 | 1 | 11.8 | 4.7 | 76 | ||
Notes:
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
|
