| Categories | Cable Twisting Machine |
|---|---|
| Brand Name: | I-suntop |
| Model Number: | GF-500mm |
| Certification: | SGS |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | By negotiation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | Up to different machine |
| Delivery Time: | Min.60working days |
| Packaging Details: | Plastic film+wooden box |
| Application: | Lan cable core wire twisting |

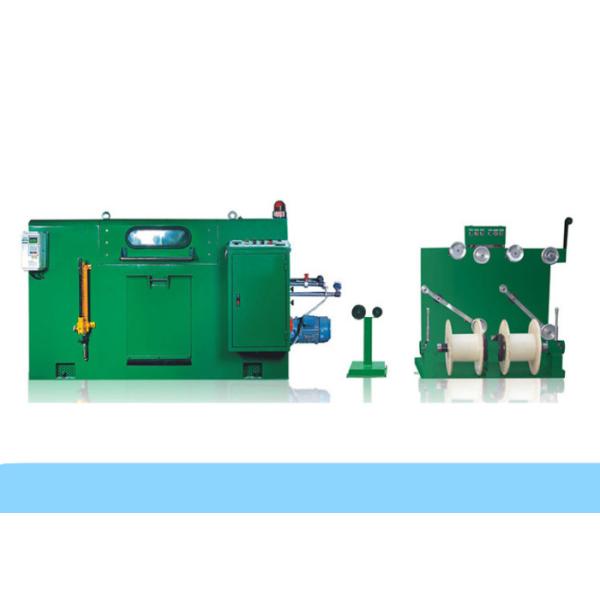

| Production name: | 500mm Double Twisting Machine With Active Pay Off |
| Machine type: | 500mm |
| Warranty: | 1year |
| suitable for: | CAT-5/5E |
| power supply: | 380V AC, three-phase, 50Hz, |
| Company Info. |
| Dongguan Wirecan Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
i-suntop Electric wire and cable equipments2022022...
1. Application for 500mm Double Twisting Machine With Active Pay Off For CAT5/CAT5E Cable:
This double twisting machine is used for twisting the Cat5, Cat5E lan cable. Our equipment is used widely in wire and cable making industry. It is high quality ,high speed .
2. Technical parameters for 500mm Double Twisting Machine With Active Pay Off For CAT5/CAT5E Cable:
Equipment models | 500 double twisting machine+active pay off |
Twisting usage | it apply for CAT5/CAT5E core wire pair twisting |
The max.size of wire-receiving bobbin (outer diameter×total length) | φ500×314 |
Max core wire diameter | Φ0.5-1.2mm |
Lay pitch(mm) | 5.8~ 54.53( can adjustable by customer's need); |
Direction of intertwist: | "S"for left,"Z"for right |
Rotation speed of intertwist bow(r/min) | 2500RPM(5000 twist) |
Material of intertwist bow: | spring steel belt |
Motor | 4KW, frequency-envarying speed control |
Wire-receiving stretch force structure | Magnetic power clutch |
The up-and-down structure of wire-receiving wheel: | manual or electricial-hydraulic type |
Electrical control type | PLC |
Electrical control operation interface | standard electric accessories |
achine outside shape size(mm) | 2560×1350×1400 |
Net weight of machine(kg) | 2000 |
Main bearing | Nsk |
Pay off: | Active pay off with motors, double shafts without back-twist |
|
