U/FTP CAT 6A Network Cable 500Mhz 10Gbps Copper Conductor NO 7112322

U/FTP CAT 6A Network Cable 500Mhz 10Gbps Copper Conductor NO 7112322

U/FTP CAT 6A Network Cable 500Mhz 10Gbps Copper Conductor NO 7112322
U/FTP CAT 6A Network Cable 500Mhz 10Gbps Copper Conductor NO 7112322
Categories LAN Network Cable
Brand Name: HELLOSIGNAL OR OEM
Model Number: NO. 7112322
Certification: UL, ETL, CE,CPR, RoHS
Place of Origin: Hangzhou, China
MOQ: 305M/Spool, 100 spools
Payment Terms: T/T, L/C
Supply Ability: 10000 spools/month, 3050KM/Month
Delivery Time: Normally 25 working days
Packaging Details: wooden spool, carton, pallet
Number of conductors: 4 pairs
Type: u/ftp cat6a
Jacket: PVC
Color: Blue/Grey/......
Conductor: Bare Copper
Application: Telecommunication,Networking,Telecom/CATV,broadband connection,Telecommunication/CCTV/Computer
Insulation: Foam PE
Standard 1: ISO/IEC 11801-1 Ed.1.0
Standard 2: ANSI/TIA-568-C.2 ANSI/TIA-568.2-D
Standard 3: UL444、UL1581、UL1666、IEC60332-1、EN50399
Support: 10Gbase-t、1000BASE-T
Shield: U/FTP, Shielded
Contact Now
Company Info.
HANGZHOU ZION COMMUNICATION CO., LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

U/FTP CAT 6A Network Cable 500Mhz 10Gbps Copper Conductor NO 7112322

U / FTP CAT 6A PVC Network Cable ,500Mhz,10Gbps, Copper Conductor,PVC-CPR, Cat6a Ethernet Cable NO 7112322

U/FTP CAT 6A PVC-Global Market (NO. 7112322)

Construction

Conductor:0.57±0.005mm Solid Bare Copper
Pairs:4 Pairs
Insulation:1.33±0.05 mm Foam PE
Insulation Colors:Blue-White/Blue, Orange-White/Orange
Green-White/Green, Brown-White/Brown
ShieldedAL/PET Foil,100% Coverage
Cover every pair
Drain Wire0.40±0.005mm TC
RipCord:Cotton or Fibre
Out Jacket:7.3±0.5 mm PVC

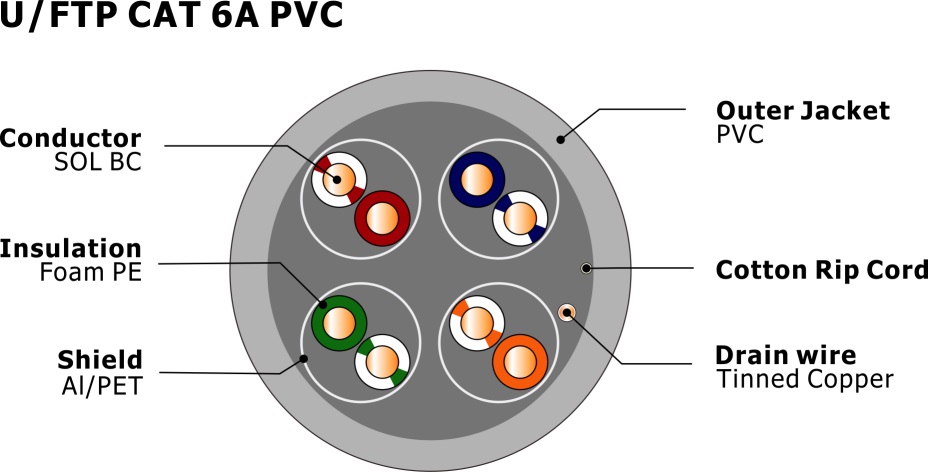

Cross Section



Application Support

  • 10GBASE-T , 1000BASE-T , 100BASE-T , 10BASE-T
  • 1Volp,ISDN, Token, 100MTPPDM, Analogand Datavideo, POE Type1,2,3,4

Electrical Characteristics

DC Resistance＜9.38 Ohms/100m @20℃
DC Resistance unbalance4% @ 20℃
Mutual Capacitance5.6 nF/100m
Characteristic Impedance1 - 100 MHz: 100±15 Ohms
100 - 200 MHz: 100±22 Ohms
200 - 500 MHz: 100±32 Ohms
Max Frequency500MHz
Capacitance Unbalance330 pF/100m
NVP67%
Delay Skew≤ 45ns/100m

Performance Characteristics


FrequencyRL (Min.)Insertion Loss(Max.)Propagation Delay (Max.)Delay Skew(Max.)NEXT (Min.)PS NEXT (Min.)ELNEXT (Min.)PSELNEXT (Min.)
MHzdBdB/100mns/100mns/100mdBdBdB/100mdB/100m
120.02.1570.045.074.372.367.864.8
423.03.8552.045.065.363.355.852.8
1025.06.0545.445.059.357.347.844.7
1625.07.6543.045.056.254.243.740.7
2025.08.5542.145.054.852.841.838.8
31.2523.610.7540.445.051.949.937.934.9
62.521.515.4538.645.047.445.431.928.9
10020.119.8537.645.044.342.327.824.8
20018.029.0536.145.039.837.821.818.8
30017.336.4536.145.037.135.118.315.3
40017.343.0535.845.035.333.315.812.8
50017.345.3535.645.033.831.813.810.8

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.


Order Information


MarkingHELLOSIGNAL NO.7112322 U/FTP CAT6A 4PR 23AWG PVC ...305M(1000FT) (or Per customer's request)
Inner Package305m/Spool,305m/Reel (or Per customer's request)
Outer PackageColor Box, Pallet (or Per customer's request)
Delivery timeNormally 25 days after received the deposit.
BrandHELLOSIGNAL® OR OEM

More information on CAT 6A cable

  • CAT6A cable which is named Category 6a cable, used for the cabling infrastructure of Internet and Ethernet.
  • Cat 6A performance is defined for frequencies up to 500 MHz—twice that of Cat 6.
  • Cat 6A also has an improved alien crosstalk specification as compared to Cat 6, which picks up high levels of alien noise at high frequencies. For more about its key features and applications,
  • please check our complete guide to Cat 6A cable.

Construction and packaging

  • 23 AWG Solid Copper
  • U/UTP: the cable consists of 4 unshielded twisted pairs and no outer shielding
  • U/FTP: the cable consists of 4 pairs individually shielded​
  • F/FTP: the cable consists of 4 pairs individually shielded and with an outer foil shield too
  • Bulk cable mainly packed in 100M, 305M,300M,500M
  • PVC, PE, LSZH, CM,CMR, CMP avaible chose for Jacket

Applications

  • Cat6A can support 10 Gbps, the cabling can support frequencies of up to 500 MHz
  • 10GBASE-T/POE+/HDBASE T
  • Computers and Laptops/Televisions/Wifi access points/Network enabled appliances/Telephones
  • Reference Standard and Certificates
  • ISO/IEC 11801-1 Ed.1.0 | ANSI/TIA-568-C.2 | ANSI/TIA-568.2-D | IEC60332-1 | EN50399
  • UL/ETL/CPR/CE/DELTA/RoHS/REACH/ISO9001/ANATEL/SABS

Connectors

  • RJ-45 is the standard connector used with a Cat6a cable assembly.
  • RJ45 is the universal connector used with 99% of network devices.

Production Supplier Profile

  • Zion Communication is one of the top manufacturers and exporters of U/FTP CAT6A PVC JACKET.
  • Extensive experience in manufacturing for export and problem-solving.
  • Zion Communication focuses on customer needs: provide competitive signal & Low voltage power transmission products and services, continue to create maximum value for customers!
  • Zion Communication has advanced production equipment and excellent engineers and skilled workers to guarantee the best products to our customers.
  • Our management and international sales teams are committed to our customers' utmost satisfaction.
