Insulation Material Surface Resistance Tester IEC60243-1 Standard

Categories Rubber Testing Equipment
Brand Name: DAXIAN
Model Number: DX8488
Certification: ASTM D257-2007, IEC60243-1
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 15 sets per month
Delivery Time: 20 days after order confirmed
Packaging Details: Standard export wooden case
Product name: Surface Resistance Tester
Standards: ASTM D257-2007, IEC60243-1
Power: AC 220V/50HZ
Weight: 15kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

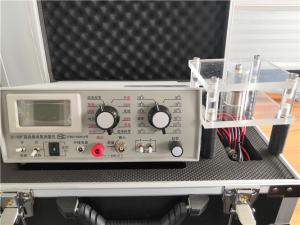

Insulation Material Surface Resistance Tester IEC60243-1 Standard

Insulation Material Volume Resistance Tester
Standards:
- ASTM D257-2007


Introduction:

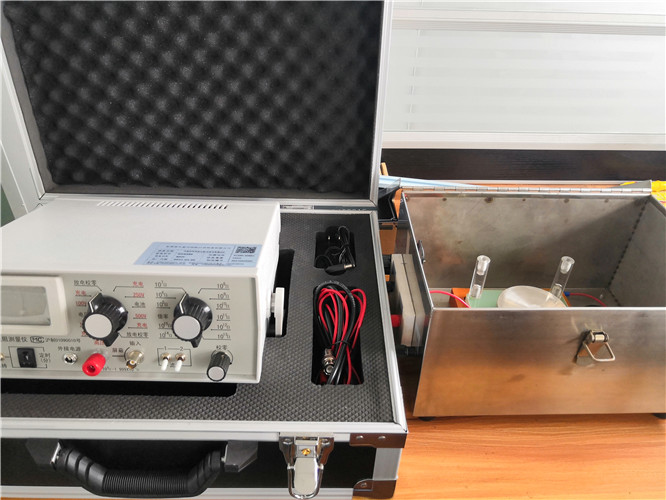

It is suitable for measuring the insulation resistance of rubber and plastics used in high resistance insulating materials, electrical products, various components and wires and cables. The optional electrode box can measure the surface resistance and volume resistance of insulating materials.


Main technical indicators:
Testing voltage
100V,250V,500V,1000V adjustable
Range of resistance measurement
1×10e6~2×10e12Ω
Time setting
0~99S adjustable
Power supply
AC220V 50 HZ
Outer size
500×350×250(mm)
The alarm value
1~9999(MΩ)
Measuring range
1~9999(MΩ),±5%

Calibration of instrument :
Turn the high voltage (zero) selector switch (10) to the "discharge zero" (.000) gear. The "discharge zero" (.000) gear adjacent to the selected measuring voltage should be selected to enter the measuring position in one step.
