TEMI880 Temperature And Humidity Controlled Chambers KINSGEO Products

Categories Environmental Test Chambers
Brand Name: KINSGEO
Model Number: KJ-2091
Certification: ISO,CE
Place of Origin: CHINA
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Sets per months
Delivery Time: 7 working days
Packaging Details: Export wooden case
Product name: Temperature And Humidity Testing Chamber
Humidity range: 20%~98%
Temperature range: -40℃/-70℃~+150℃
Power supply: AC 3 Phase 380V 60/50Hz
Controller: TEMI880
Warranty: 12 Months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

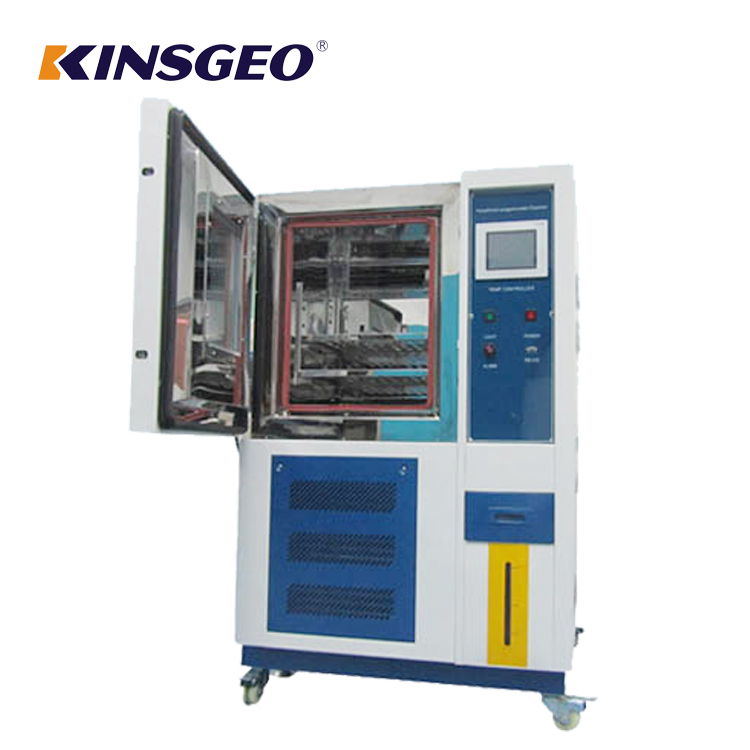

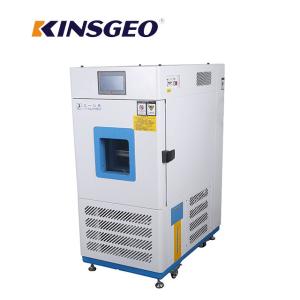

TEMI880 Temperature And Humidity Controlled Chambers KINSGEO Products

Temperature And Humidity Testing Chamber Environmental Chamber Controlled Environment Chamber


Uses:

This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, LED,resist dry,resist humidity and resist cold. That can define performance of material.


Design Standard:

GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566


ModelKJ-2091
Inner size W×H×D(cm)40×50×40 50×50×60 70×70×85 100×80×100
Inner chamber volume(V)80L 150L 225L 408L
Temperature and humidity Controll range-40°C~150°C RH20%-98%
FunctionTemperature and humidty fluctuation±0.5°C;±2.5%RH
Temperature and humidity deviation±0.5°C-±2°C;±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller resolution±0.3°C;±2.5%RH
Controller brandKorea TEMI880

Heating Time

(RT-HT)°C/min

100150
4050

Cooling Time

(RT-LT)°C/min

-20-40-60-70
40505580
Power supply KW4.06.06.06.0
MaterialInner materialSUS 304# steel plate
Outside materialSUS 304# steel plate(surface disposing)
Thermal insulation materialThermostability high density chlorine formic acid foam insulator material
System wind pathround-robin modecentrifugal fan-broadband enforce circulation
Refrigeration waySingle stage compression refrigeration
Refrigeratorwhole sealing piston France Taikang brand Compressor
Freezing fluidR4O4A or USA Dupont environmental protection refrigerant(R23+R404)
Condensation wayforced air cooling or water-cooling
HeaterNichrome heating wire heating
HumidifierSemi-enclosed steam humidification
Water-provide wayfull-automatic periodical feeding
Standard configuration1 Observe window(double-deck cavity toughened glass),1 50mm test hole in the left,1 PL inner chamber lamp,2clapboards, 1 bag of wet and dry bulb,3 fuses, 1 power line.
Safety deviceNon- fuse-switch(compressor overload, refrigerant high low voltage,over-humidity and temperature protection,Protection switch,fuse stoppage warning system
Power1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz

Safety Devices:

Leakage current, overload, compressor overload, over temperature, ultra-wet, dry, humidification temperature protection.

Temperature And Humidity Chamber


Character:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. control temperature&humidity well-distributed, precisely and steady.

3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.


Specifications:


Safety Devices:

Leakage current, overload, compressor overload, over temperature, ultra-wet, dry, humidification temperature protection.

Temperature And Humidity Chamber

1. Why Choose Us?

(1) Focusing on this testing field for over 15 years makes us professional.

(2) Located in Dongguan city--the world class manufacturing city.

(3) After-sales service for 12 months, promptly deal with all the problems.


2. Are you a factory?

Yes, we are.


3. What's the product delivery time?

Within 10 work days after deposit received.

If we have stock, the delivery time will be greatly shortened.


4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
