PPGL Hydraulic Uncoiler Machine Chrome Coil Straightening Machine

Categories	Hydraulic Uncoiler Machine
Brand Name:	RILANT
Model Number:	SZWG-1500
Certification:	CE
Place of Origin:	China
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	500 sets per month
Delivery Time:	15 work days
Packaging Details:	Standard export package
Voltage:	380V 50Hz 3phases
Condition:	New
Weight:	2.5T
Tile type:	Steel
Dimension(lwh):	about3000500500
Use:	decoiler,uncoil
After-sales service provided:	Engineers available to service machinery overseas
Warranty:	1 Year
Color:	Client's Request
Name:	decoiler for steel sheet
Power(w):	5.5kw
Product name:	Automatic 3 tons hydraulic sheet decoiler and uncoiler machine
Raw material:	PPGI PPGL GI GL
Control system:	PLC computer control
Plc:	DELTA(TAIWAN)
Usage:	decoiler
Roller material:	45#steel Chrome Plated
Frame:	H beam

Contact Now

Add to Cart

Company Info.

Kunshan Brave Tech Co.,Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

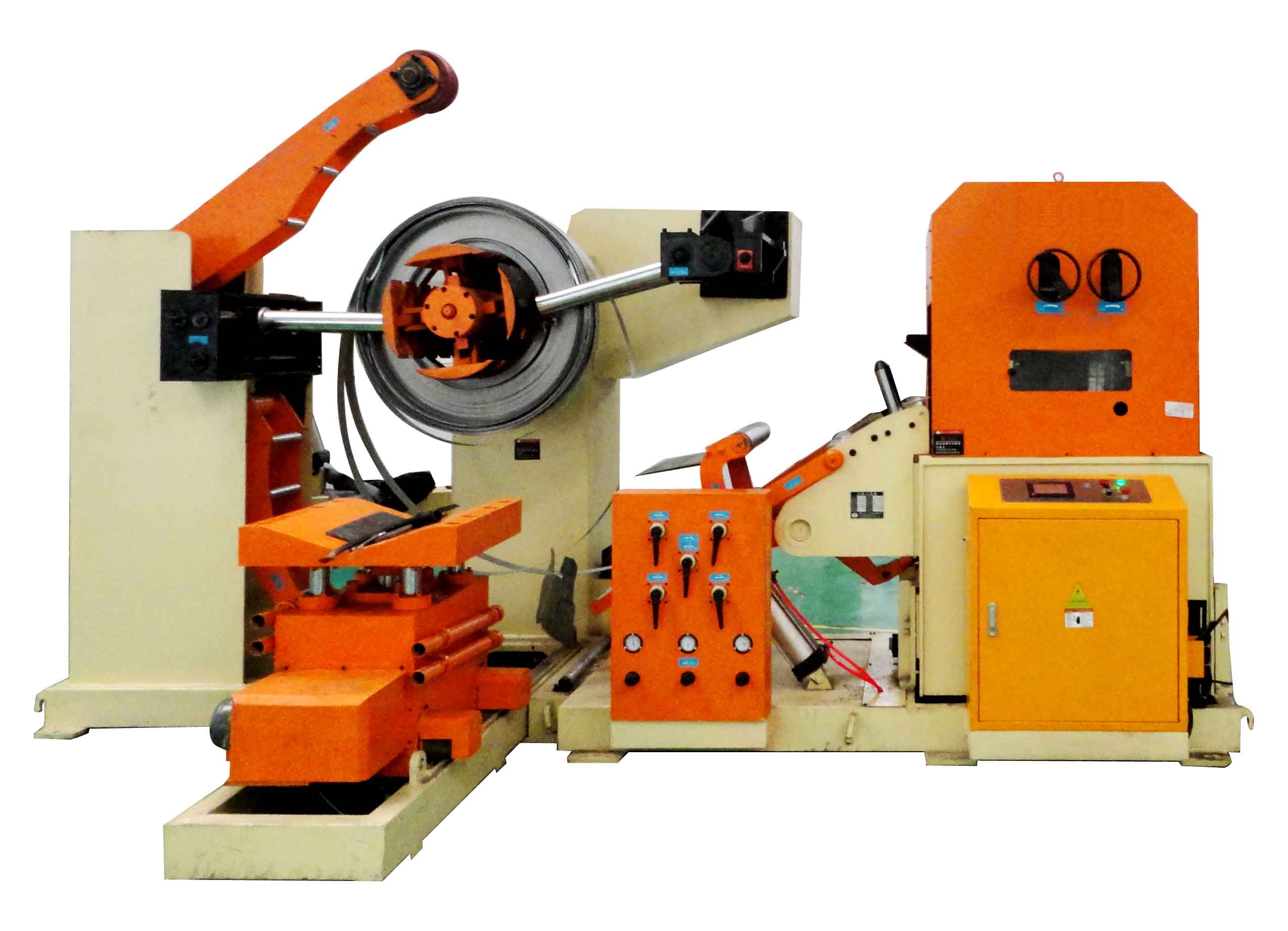

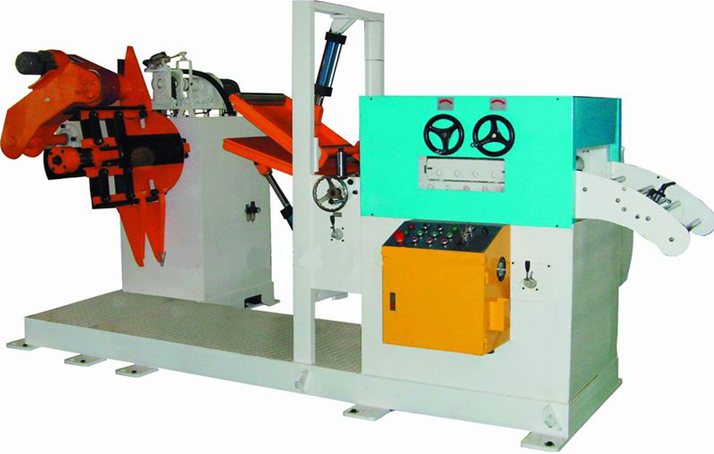

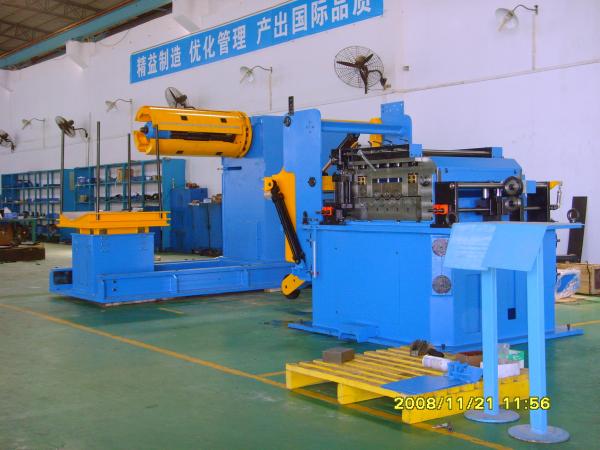

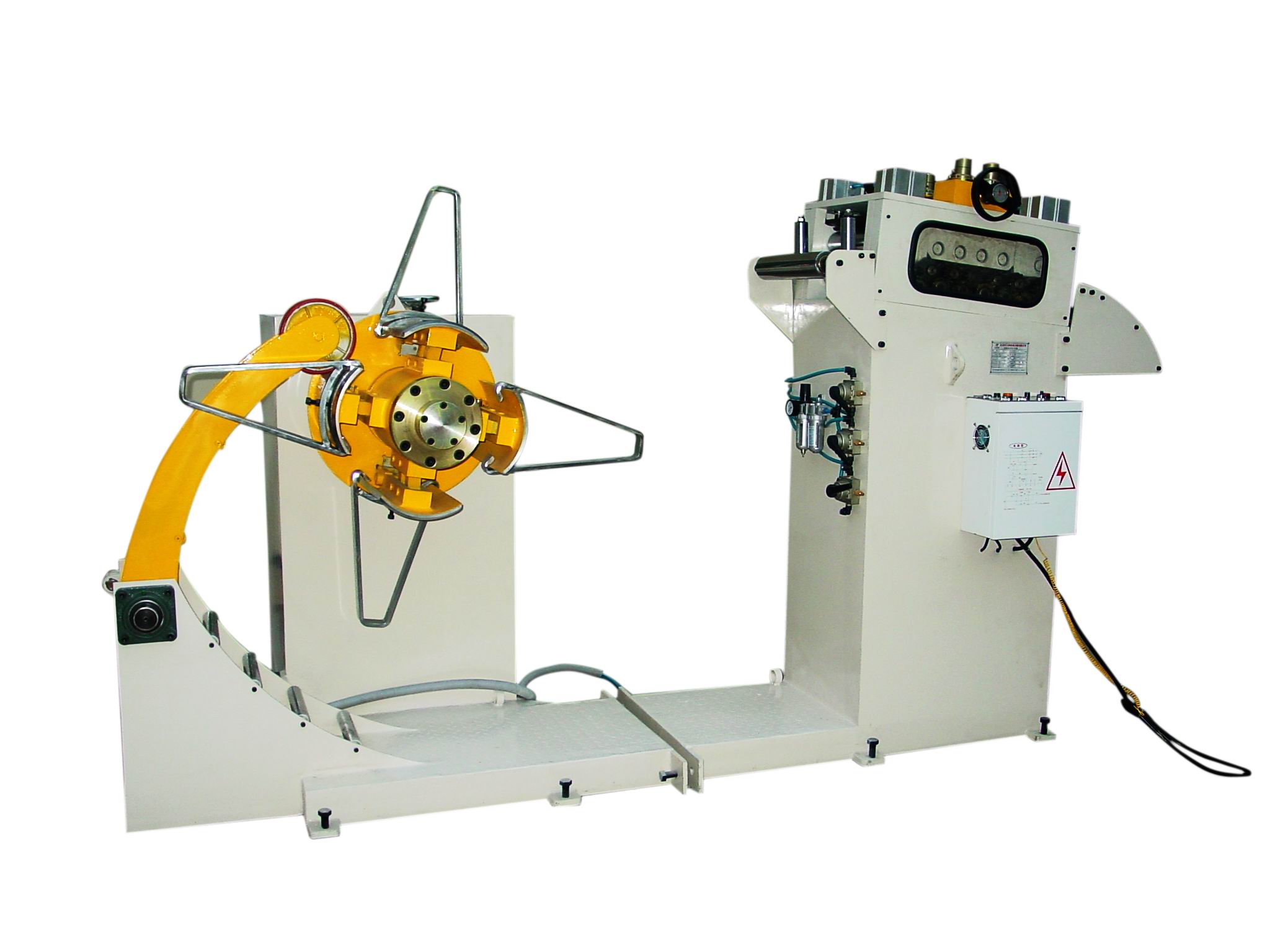

PPGL Hydraulic Uncoiler Machine Chrome Coil Straightening Machine

Factory Price Uncoiling Machine Coil Straightening Machine 3 In 1

Description

Decoiler

Function instruction: uncoiling is to fix coil on the spindle of
uncoiler, a supporting table to support coil Inner diameter,
while working automatically, through material loop controlling
instruction to make spindle uncoiling and loosing coil
intermittently, equipped with coil diameter detection, to control
uncoiling speed, ensure uncoiling line speed is uniform
velocity, improved material loosing problem.

Components included: expansion and contraction part, press arm
part, limit wheel part, material loop controlling part.
Expansion method: hydraulic expansion.
Spindle expansion range: Φ450-Φ530mm.
Spindle driven motor: AC motor, with inverter.
Spindle driven method: variable frequency gear motor.
Spindle brake: disc brake.
Spindle uncoiling direction: down uncoiling.
Press material wheel specification: PU rubber tires
Press material wheel driven method: AC motor, with inverter

Function of press arm: from cut off bundling belt which is used for
fixing coil until the coil head is pressed tightly by
straightener roller, to prevent coil rebounding; while whole
feeding line working, let the coil uncoiling smoothly, to prevent
coil dispersing and the press arm is motorized, with tracking and
follow up function ie. Rotating speed of press arm roller is
absolutely the same with uncoiling line speed, then tensioning
metal strip, to prevent coil loosing.

MODEL	MT-200	MT-300	MT-400	MT-500
Material width	200	300	400	500
Loading weight	800	800	1200	1200
Coil inner diameter	450~530mm	450~530mm	450~530mm	450~530mm
Coil outer diameter	1200mm	1200mm	1200mm	1200mm
