400Hz Electrical Wiring 10KV Split Core Current Sensor

High Accuracy Split Core Current Transformer , Current sensor

The current ratio of the current transformer is based on the primary conductor passing once through the transformer opening. The ratio is reduced in multiples by looping the conductor through the opening. A transformer having a ratio 200:5 changes to a ratio of 100:5 if two loops are made through the transformer with the primary conductor. The ratio of the transformer will be 50:5 if four loops are made with the primary conductor, etc.

Features:

• Operating Frequency: 50 to 400 Hz.
• Insulation Class: 0.6 KV BIL 10 KV full wave.
• Terminals: Brass studs No. 8-32 UNC with flat washer and hex nuts.Torque: 15 in-lb (1.69 N-m) max

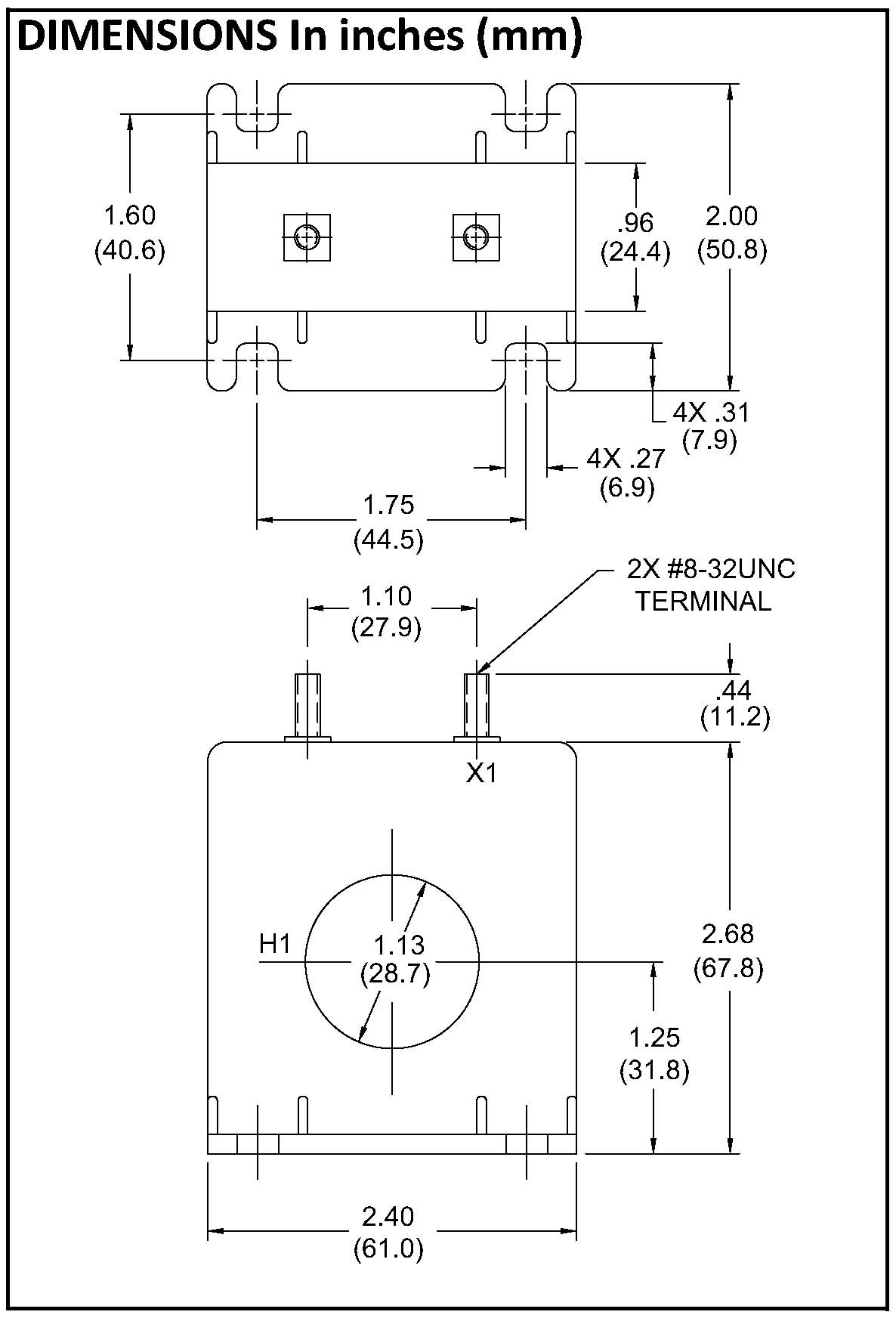

• Window Diameter: 1.13" (28.7 mm).
• Weight: 8.0 oz (226.0 g).

Applications:

• Current measurement, monitoring and protection for electrical wiring and equipment.
• Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation – control system.
• Current, power and energy monitoring device.
• Relay protection device.

Notes: Product specifications can be customized
