| Categories | DC Planetary Gear Motor |
|---|---|
| Brand Name: | SECORE |
| Model Number: | DC3151 |
| Certification: | CE ROHS |
| Place of Origin: | Guangdong |
| MOQ: | 100 |
| Price: | Negotiated The Price |
| Payment Terms: | T/T, D/A |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 15-18 working days |
| Packaging Details: | 100pcs per carton or as request |
| Speed: | 4000rpm |
| Rated voltage: | 24V |
| reduction ration: | 1:3.7~1:354 |
| Motor Diemeter: | 31mm |
| keyword: | brushed planetary gear mtor, brush commutated gear motor, PMDC planet motor |
| Typical application: | automation deivce, instrument, window curtain, garden tool |
OD 31mm 24V Brush Planetary Gear Motor With Advanced Anti-Interference Configuration
This model DC3151 DC motor is an advanced configuration, with ball bearing and long life brushes, equipped with inductance-capacitance Anti-Interference components, it is suitable for instrumentation and automation devices.
Main features:
| Motor type | Brush commutated DC motor |
| Gearbox type | Planetary |
| Diameter | Gearbox: 32mm; DC motor:31mm |
| Nominal voltage | 12V/24V DC or customized |
| Gear ratio | 1:3.7 ~1:354 |
| No load current | 70mA; 75mA |
| Nominal current | 430mA; 570mA |
| No load speed | 4000rpm; 5000rpm |
| Nominal speed | 3130rpm; 3830rpm |
| Permissible load range | 0.3N.m ~ 3.0N.m for S1 duty cycle |
| Nominal power | 7.1W; 9.8W |
| IP rating | up to IP68 |

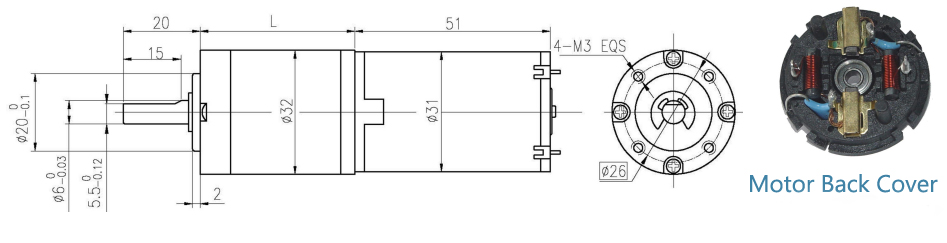

Gear motor size:
Motor Technical parameters:
| Model | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall current A |
| DC3151-2440 | 24 | 4000 | 70 | 3130 | 22 | 7.1 | 430 | 101.1 | 1.6 |
| DC3151-2450 | 24 | 5000 | 75 | 3830 | 25 | 9.8 | 570 | 106.8 | 2.3 |
Gear motor technical parameters for DC3151-2440:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 306 | 354 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Length mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 | 46.6 |
| No-load speed rpm | 1081 | 769 | 286 | 211 | 148 | 78 | 56 | 40 | 29 | 22 | 18 | 13 | 11 |
| Rated speed rpm | 846 | 602 | 224 | 165 | 116 | 61 | 44 | 31 | 23 | 17 | 17 | 10 | 9 |
| Rated torque N.m | 0.073 | 0.1 | 0.25 | 0.34 | 0.48 | 0.82 | 1.14 | 1.6 | 2.2 | 2.6 | 3 | 3 | 3 |
| Max permissible load in a short time N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
Gear motor technical parameters for DC3151-2450:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Length mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 |
| No-load speed rpm | 1351 | 962 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 28 | 23 | 20 |
| Rated speed rpm | 1035 | 737 | 274 | 202 | 142 | 75 | 54 | 38 | 28 | 21 | 17 | 15 |
| Rated torque N.m | 0.083 | 0.12 | 0.28 | 0.39 | 0.55 | 0.93 | 1.3 | 1.8 | 2.5 | 3 | 3 | 3 |
| Max permissible load in a short time N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 |
Dimension:
Motor diameter: 31mm ( customizable )
shaft length: 20 mm ( customizable )
shaft diameter: 6mm ( customizable )
Provide motor size, lead requirement, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
Typical Application:
| Embossing machine motor | slow juicer motor | roll door motor |
| printing machine motor | robot cleaner motor | slide door motor |
| oven gear motor | door motor | PTZ camera motor |
| telescopic rod motor | fan motor | lawn mower motor |
| massage chair motor | curtain motor | medical robot motor |
|
