| Categories | Digital Pressure Gauge |
|---|---|
| Brand Name: | Yunyi |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD$45--85/UNIT |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Uint per week |
| Delivery Time: | 5-10working days |
| Packaging Details: | Standard export carton packing. |
| Range: | -100KPa---260MPa |
| Accuracy: | 0.2 |
| Power supply: | 24VDC or 12VDC |
| Size: | 100mm |
| Material: | 304 stainless steel |
| Display: | 4 Digit LCD (optional) |
| Connection: | M20*1.5, G1/2, 1/2npt |
| Sampling rate:: | 4 times / sec |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

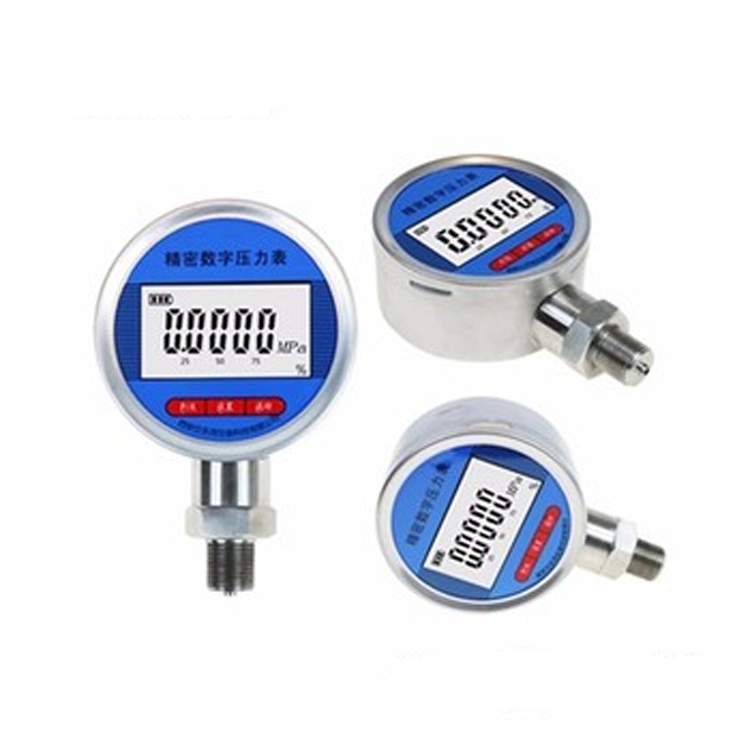

Product Description of -100KPa---260MPa Digital Pressure Gauge
Large-Screen LCD Display precision digital pressure gauge
Intelligent Pressure Gauges have full electronic structure and use
battery-powered, so they are very easy for on-site installation.
Specifically, front-end high-precision piezoresistive pressure
sensor is used and the output signal is processed by the
high-precision, low temperature drift amplifier, then sent into the
high-precision A/D converter to be converted into digital signal,
after computing and processing the actual pressure value is showed
on the LCD display

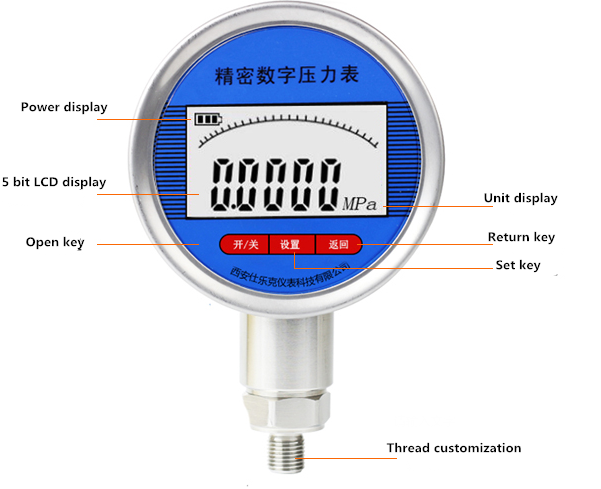

Features of smart LCD display small precision pressure gauge :
| 1. | large-screen LCD display, high resolution, ignoring the error. |
| 2. | Peak Hold function, record the maximum pressure values during the measurement |
| 3. | Pressure on the percentage of dynamic display, (the progress bar display) |
| 4. | Choice of five engineering units: psi, bar, kpa, kg / square centimetre Mpa |
| 5. | Choose 0 ~ 15min auto-off feature. |
| 6. | Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work. |
| 7. | Parameter correction, correct zero and error in field application. |
| 8. | Limit the upper and lower range |
| 9. | Sampling rate: 4 times / sec |
| 10. | Applicable to a variety of gases and liquids compatible with
stainless steel pressure measurement. |
Packing & Delivery of Large-Screen LCD Display precision digital pressure gauge
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be
decided according to
production season and order quantity.
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
|
