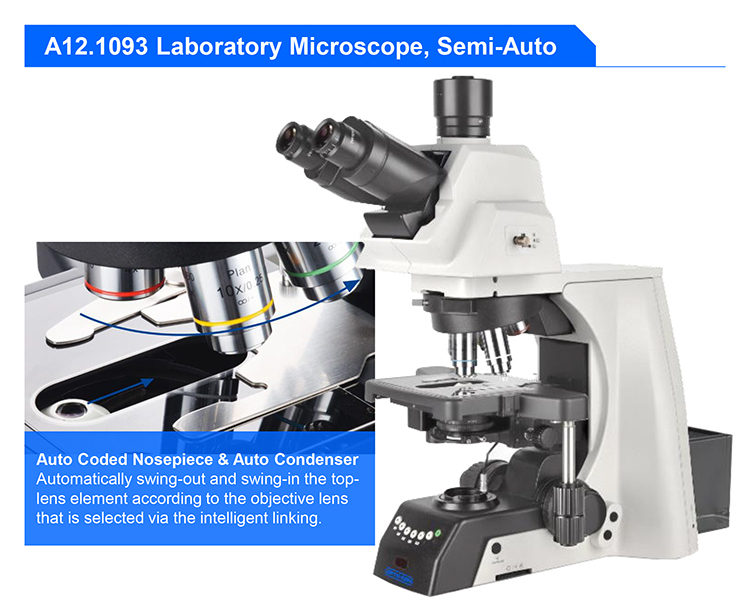

Led Semi Auto Trinocular Stereo Microscope For Research Scientific Laboratory A12.1093-L

Tilting Trinocular 0-35°, EW10x/25mm, Auto Sextuple Nosepiece, Infinity Plan NIS60 4x10x20x40x100x, Rackless Stage 190x152/ 78x54mm, Auto Swing-Out Condenser NA0.9/0.25, Coaxial, Kohler Illumination Auto Adjust Brightness, 3W LED, ECO Function

	A12.1095 is newly designed Full Auto Morotrized Research Level Scientific Laboratory Microscope, equipped with electric platform, auto focus, electric objective conversion, touch screen controller and powerful imaging software; Through the precise connection between the parts, the functions of microscope observation, image acquisition and image processing are realized, and the repetitive operation is reduced. In addition, it can restore the microscope settings and parameter settings of the last operation, and improve the stability and accuracy of microscope imaging. Microscope operation can be so fast and efficient.
Full Auto Motorized Research Level Scientific Laboratory Microscope		A12.1091	A12.1093	A12.1095	Cata.No.
Optical System	NIS60 Infinity Optical System	●	●	●
Observation Method	Bright Field	●	●	●
	Dark Field	○	○	○
	Polarizing	○	○	○
	Phase Contrast	○	○	○
	Flourescent	○	○	○
	DIC	○	○	○
Main Body	A12.1091-H Manual Body + Halogen Illumination.	●			A54.1090-BH
	A12.1091-L Manual Body + LED Illumination.	●			A54.1090-BL
	A12.1093-H Semi-Auto Body + Halogen Illumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust		●		A54.1090-ATH
	A12.1093-L Semi-Auto Body + LED Illumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust		●		A54.1090-ATL
	A12.1095 Full Auto Body + LED Illumination. Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen			●
Head	Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm	○	○	○	A53.1090-B
	Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Light Split Switch E100:P0/E20:P80/E0:P100	●	○	●	A53.1090-T
	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Light Split Switch E100:P0/E20:P80/E0:P100	○	●	○	A53.1090-TT
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●●	●●	●●	A51.1090-1025
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-1022
	EW12.5x/16mm, High Eyepoint	○	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	A51.1090-2012
Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable	○	○	○	A54.1091-5M
	Manual Nosepiece, Sextuple, Backward	●			A54.1091-6M
	Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust	○			A54.1091-6C

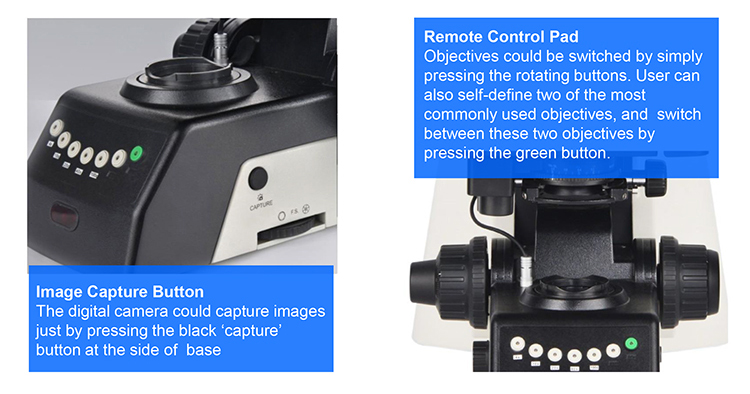

	Auto Coded Nosepiece, Sextuple, Backward, Motorized Switch Objectives, Controled By: 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them	○	●	●	A54.1091-6A
	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●	●
	Protect Cover For Nosepiece Holes	●	●	●	A54.1091-C
NIS60 N-PLN Infinity Plan Objective	2x/0.06, W.D.7.5mm, Cover Glass 0.17mm	○	○	○	A52.1090-2
	4x/0.10, W.D.30mm, Cover Glass 0.17mm	●	●	●	A52.1090-4
	10x/0.25, W.D.10.2mm, Cover Glass 0.17mm	●	●	●	A52.1090-10
	20x/0.40, W.D.12mm, Cover Glass 0.17mm	●	●	●	A52.1090-20
	40x/0.65, W.D.0.7mm, Cover Glass 0.17mm	●	●	●	A52.1090-40
	50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm	○	○	○	A52.1090-50
	60x/0.8, W.D.0.3mm, Cover Glass 0.17mm	○	○	○	A52.1090-60
	100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm	●	●	●	A52.1090-100
NIS60 APO Infinity Plan	20x/0.75, W.D.1.1mm, Cover Glass 0.17mm	○	○	○	A52.1091-20
NIS60 APO Infinity Plan	100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm	○	○	○	A52.1091-100
Working Stage	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Left Handle	○		○	A54.1092-GL
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, Right Handle	●		○	A54.1092-GR
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Left Handle		○	○	A54.1092-SL
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert, Right Handle		●	○	A54.1092-SR

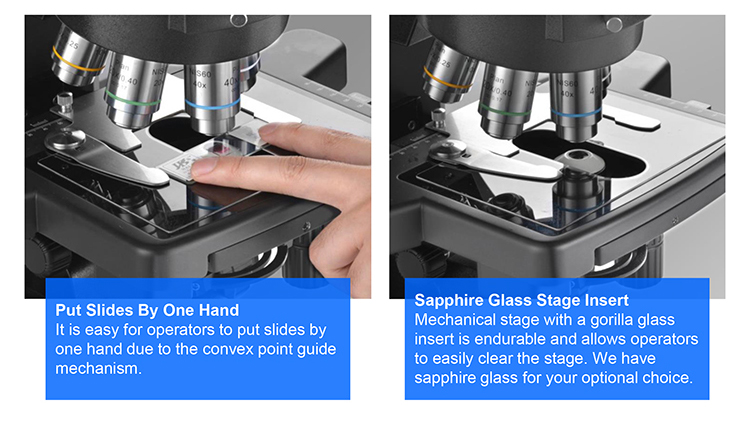

	Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw	●	●	-
	Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, --Travel Range X:125mm, Y:75mmm, --Minimum Step 0.1um --Re-Position Accurate +/-1.5um --Max Speed 25mm/s --Size: 275x239x44.5mm --Soft Stop, Mechanical Stop, Opto-Electro Switch Stop --Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um --Z Axis Max Speed 10r/s --3D Control Stick, 4 Speeds --Connection By USB2.0 & RS232 --Communication Speed 9600 bits	○	○	●	A54.1095-A
	Z Axis Upgrade With Optical Grating Ruler	○	○	○	A54.1095-B
Condenser	Swing-Out Condenser NA0.9/0.25	●			A56.1091-S
Condenser	Auto Swing-Out Condenser NA0.9/0.25		●	-	A56.1091-A

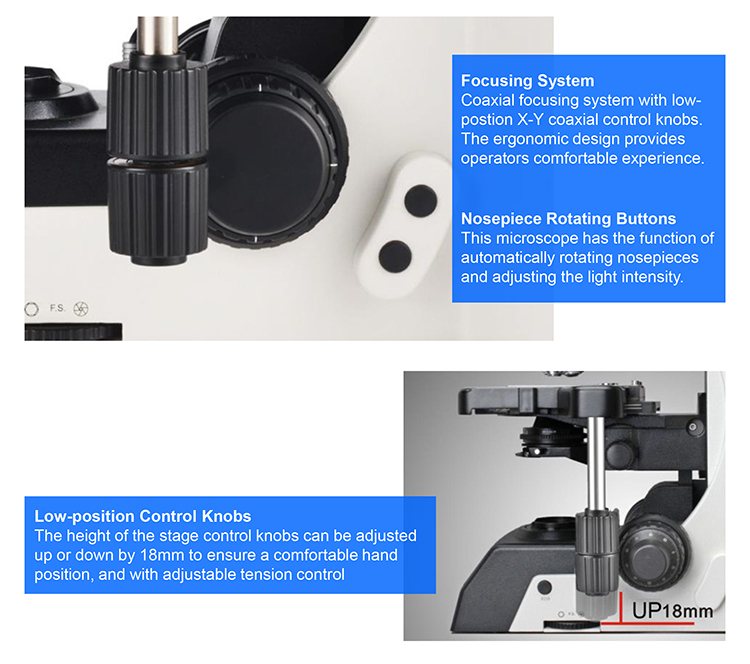

Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	●	●	●
Light Source	Transmit Kohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House For A12.1091-H, A12.1093-H	●	●		A56.1090-12V100W
	Transmit Kohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body For A12.1091-L, A12.1093-L			●	A56.1090-3WLED
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	●	●	●	A56.1090-ECO

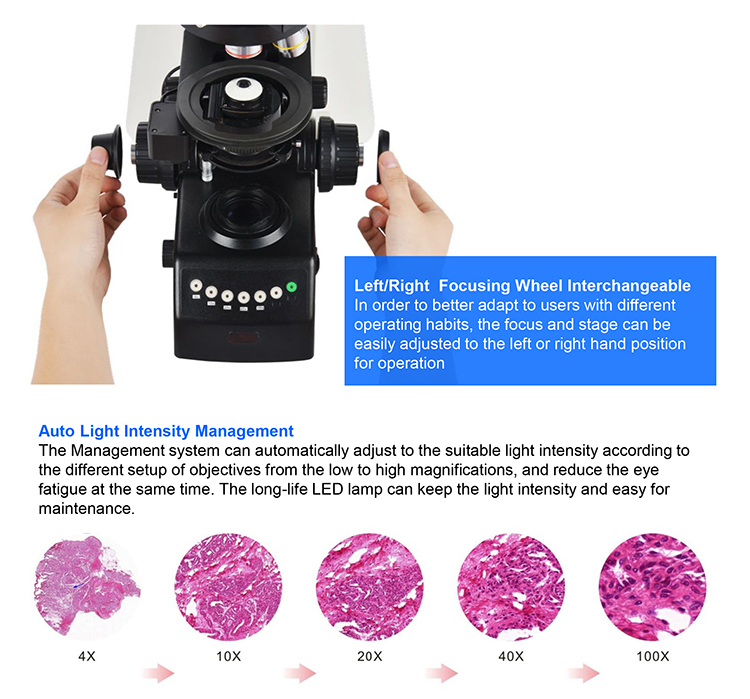

	Auto Brightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected (To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time)	○	●	●	A56.1090-AB
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	●	●	●	A56.1092-H
	Filter LBD	●	●	●	A56.1092-LBD
	Filter Green	●	●	●	A56.1092-G
	Filter Yellow	●	●	●	A56.1092-Y
	Filter ND6	●	●	●	A56.1092-ND6
	Filter ND25	●	●	●	A56.1092-ND25
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	○	A55.1090-E
	C-Mount 1.0x	○	○	○	A55.1090-1.0x
	C-Mount 0.5x	○	○	○	A55.1090-0.5x

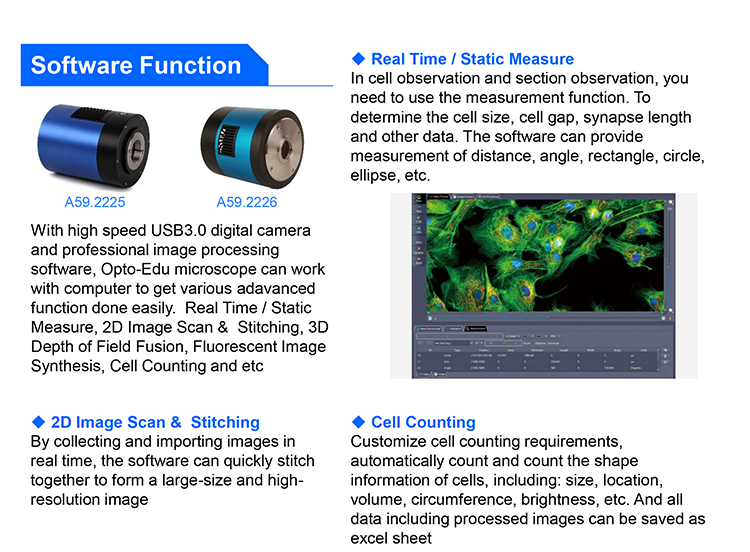

Software	NOMIS Basic Image Processiing Software	○	○	○	A30.1090
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	○	○	○	A5D.1090-D
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	○	○	○	A5D.1090-I
	Dark Field Objective, Infinity Plan 100X, For Immersion Dark Field Observation	○	○	○	A5D.1030-3
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, For Immersion Dark Field Observation	○	○	○	A5D.1030-4
Polarizing	Polarizer For Transmit Light Source, Swing-Out, On Collector	○	○	○	A5P.1091-BP
	Analyzer For Transmit Light, Slide With Quartz Wedge Compensator	○	○	○	A5P.1091-BA
	Upgrade To A15.1091 Professional Polarizing Microscope	○		○	A15.1091
Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	○	○	○	A5C.1090
	Centering Telescope 10x	○	○	○	A5C.1092
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	○	○	○	A5C.1091-10
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	○	○	○	A5C.1091-20
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	○	○	○	A5C.1091-40
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	○	○	○	A5C.1091-100
DIC	Polarizer For Transmit Light Source	○	○	○	A5P.1090-TP
	Turret DIC Condenser	○	○	○	A5C.1095
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	○	○	○	A5C.1095-10
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	○	○	○	A5C.1095-2040
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	○	○	○	A5C.1095-100
	DIC Slide With Analyzer 10x-20x	○	○	○	A5C.1095-1020P
	DIC Slide With Analyzer 40x-100x	○	○	○	A5C.1095-40100P
NIS60 N-PLFN Semi-APO Fluorescent Objective For DIC	4x/0.13, W.D.16.5, Cover Glass 0.17mm	○	○	○	A5F.1091-4
	10x/0.3, W.D.8.1, Cover Glass 0.17mm	○	○	○	A5F.1091-10
	20x/0.5, W.D.2.1, Cover Glass 0.17mm	○	○	○	A5F.1091-20
	40x/0.75, W.D.0.7, Cover Glass 0.17mm	○	○	○	A5F.1091-40
	100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil	○	○	○	A5F.1091-100
Fluorescent	Upgrade To A16.1093, A16.1095 Fluorescent Microscope	-	○	○	A16.1093, A16.1095
Other Accessories	Working Stage Holder Bracket	●	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	○	A54.1096-A2
	Immersion Oil	●	●	●	A50.1090-01
	Allen Wrench	●	●	●	A50.1090-02
	Power Cord	●	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	○	A50.1090-07
	USB Cable	○	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○" Is Optional Accessories "-" Is Unavailable

Product Tags:

led trinocular stereo microscope

semi auto trinocular stereo microscope

research scientific laboratory trinocular stereo microscope

Led Semi Auto Trinocular Stereo Microscope For Research Scientific Laboratory A12.1093-L

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Opto-Edu (Beijing) Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Compound Optical Microscope
Brand Name:	CNOEC, OPTO-EDU
Model Number:	A12.1093-L
Certification:	CE, Rohs
Place of Origin:	China
MOQ:	1 pc
Price:	FOB $1~1000, Depend on Order Quantity
Payment Terms:	T/T, West Union, Paypal
Supply Ability:	5000 pcs/ Month
Delivery Time:	5~20 Days
Packaging Details:	Carton Packing, For Export Transportation
Observation Method:	Bright Field
Main Body:	ATL Semi-Auto Body + LED Illumination
Head:	Ergo Tilting Trinocular Head, Inclination 0°~35°
Eyepiece:	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm
Nosepiece:	Auto Coded Nosepiece, Sextuple, Backward
Objective:	N-PLN Infinity Plan Objective
