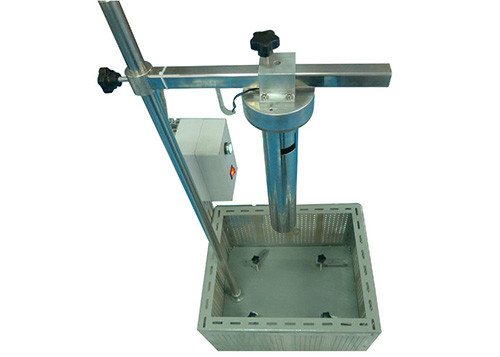

Vertical Hammer Drop Weight 10J Impact Testing Apparatus

Vertical Hammer Drop Weight Impact Apparatus IEC60068 Test Ehc

Parameters:

Product details:

The vertical hammer impact apparatus conforms to the standard requirement of the IEC60068-2-75 Test Ehc, UL498 clause SD7.2.

This device is intended to test the mechanical strength test of the shell of the electric appliance for house hold and similar purpose, as well as test drop impact resistance of the lamp.

Drop height adjustable;

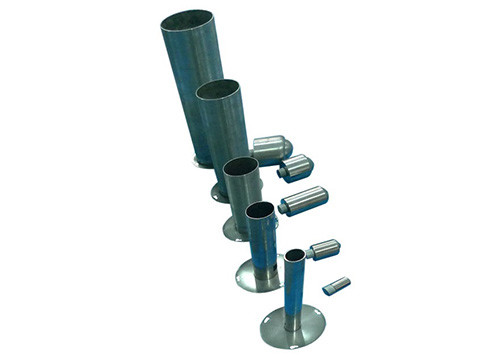

Impact hammer different according to the corresponding standard requirements.

Drop floor different according to the corresponding standard requirements.

The hammer consists basically of a striking element which falls freely from rest through a vertical height, selected from following table, on to the specimen surface held in a horizontal plane. The fall of the striking element shall be along a guideway, for example a tube, with negligible braking. This guideway shall not rest on the specimen and the striking element shall be free of the guideway on striking the specimen.

Table-Height of fall

The height of fall shall be as giver in above table, the equivalent mass stated therein being equal to the actual mass of the striking element.

Operation steps:

A proper hammer is chose according to the related standard requirement.

Place the sample on the bottom of the conduit and adjust the height of the conduit the height is measured by the ruler) Next, put the hammer on the top of the conduit and press the release button. Thus the impact hammer falls down and hit the sample.

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.

Our main products are:

waterproof and dustproof (IP) environmental test equipment;

switch, plug, socket and coupler test equipment; mechanical strength impact test equipment;

material fire hazard test equipment, enclosure protection test probes;

household appliances safety test equipment;

wire and cable test equipment;

luminaires test equipment;

electric tools test equipment.

Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
