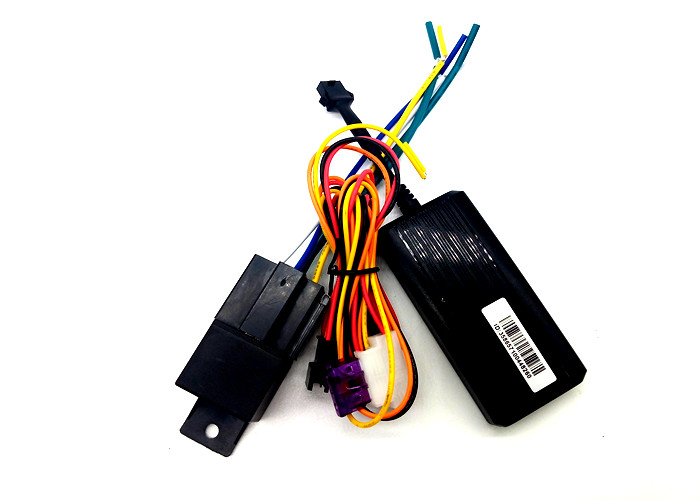

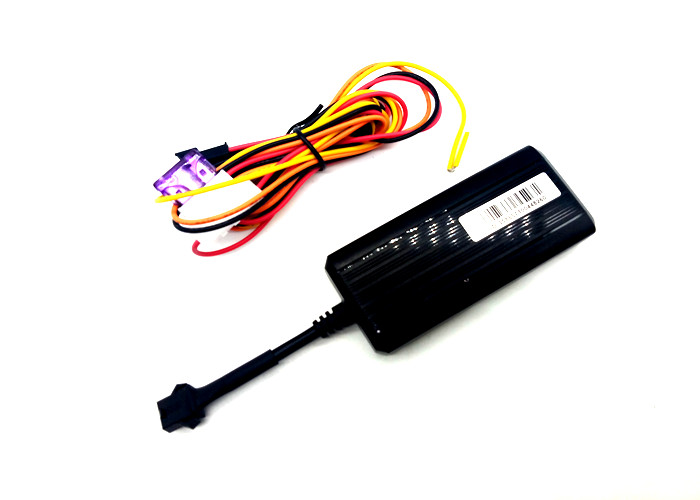

C003-01 Model 4G Tracker Overspeed Alarm real time monitoring Mini 4G GPS Tracker

C003-01 Model 4G Tracker Overspeed Alarm real time monitoring Mini 4G GPS Tracker

C003-01-4G model is an anti-theft GPS tracking device specially designed for motorcycles and electric vehicles.

Know exactly where your motorcycles is at all times with our real time vehicle tracking devices.

Never worry about having your motorcycles stolen .

C003-01 Model 4G Tracker Overspeed Alarm real time monitoring Mini 4G GPS Tracker

Product Paramenters

GSM Frequency	GSM 850/900/1800/1900MHz
Dimension	90 *40*15mm
Weight	50g
Built-in Battery	200mAh
Colors	Black
LED Indicator	GPS(yellow), GSM(blue), Power(red)
Operating Voltage	9-100VDC
Working mode	Normal mode
Antenna	Built-in GPS antenna
Location Accuracy	10meters
Location time	Hot start:≤2sec(open sky)
	Cold start:≤35sec(open sky)
Operating Temperature	-20℃~70℃
Operating Humidity	20%~80%
Standard accessories	GPS tracker,Manual,Cable harness
Data Transmit	TCP, SMS

C003-01 Model 4G Tracker Overspeed Alarm real time monitoring Mini 4G GPS Tracker

Product Features

* Remote Tele-cut off (petrol/power) Compel the vehicle to stop by breaking off the fuel connection

*Vehicle battery protection Prevent motorcycle battery power-lack

*Built-in vibration sensor Inhibiting GPS static drift

*ACC detection for ignition status Be aware of the ignition status whenever you need

*9-100V voltage range Wide operating voltage applicable to all types of vehicles

*Intelligent alarm Instant alert for vibration,overspeed,power off, geo-fence

*Light and compact Small size allowing covert & easy mounting

*Tracked by: SMS, APP, Web

C003-01 Model 4G Tracker Overspeed Alarm real time monitoring Mini 4G GPS Tracker

Device status indicators

1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.

2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.

3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.

Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;

Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;

Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.

Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;

Q5: How about your platform cost?
Re: Free for lifetime;
