| Categories | Hardness Testing Machine |
|---|---|
| Brand Name: | HUATEC |
| Model Number: | HBRV-187.5 |
| Certification: | ISO, CE, GOST |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500Pcs |
| Delivery Time: | 1-4working days |
| Packaging Details: | Standard export package |
| Test force: | 5～187.5kgf |
| Model: | HBRV—187.5DX |
| Objective: | 2.5X，5X（10X，20X optional） |
| Magnification of microscope: | Brinell：37.5X、 Vickers：75X |
| Data output: | LCD display，U disk |
| Dimension: | 560*260*800mm |
| Weight: | About 70Kg |
| Power: | AC220V+5%，50-60Hz |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |

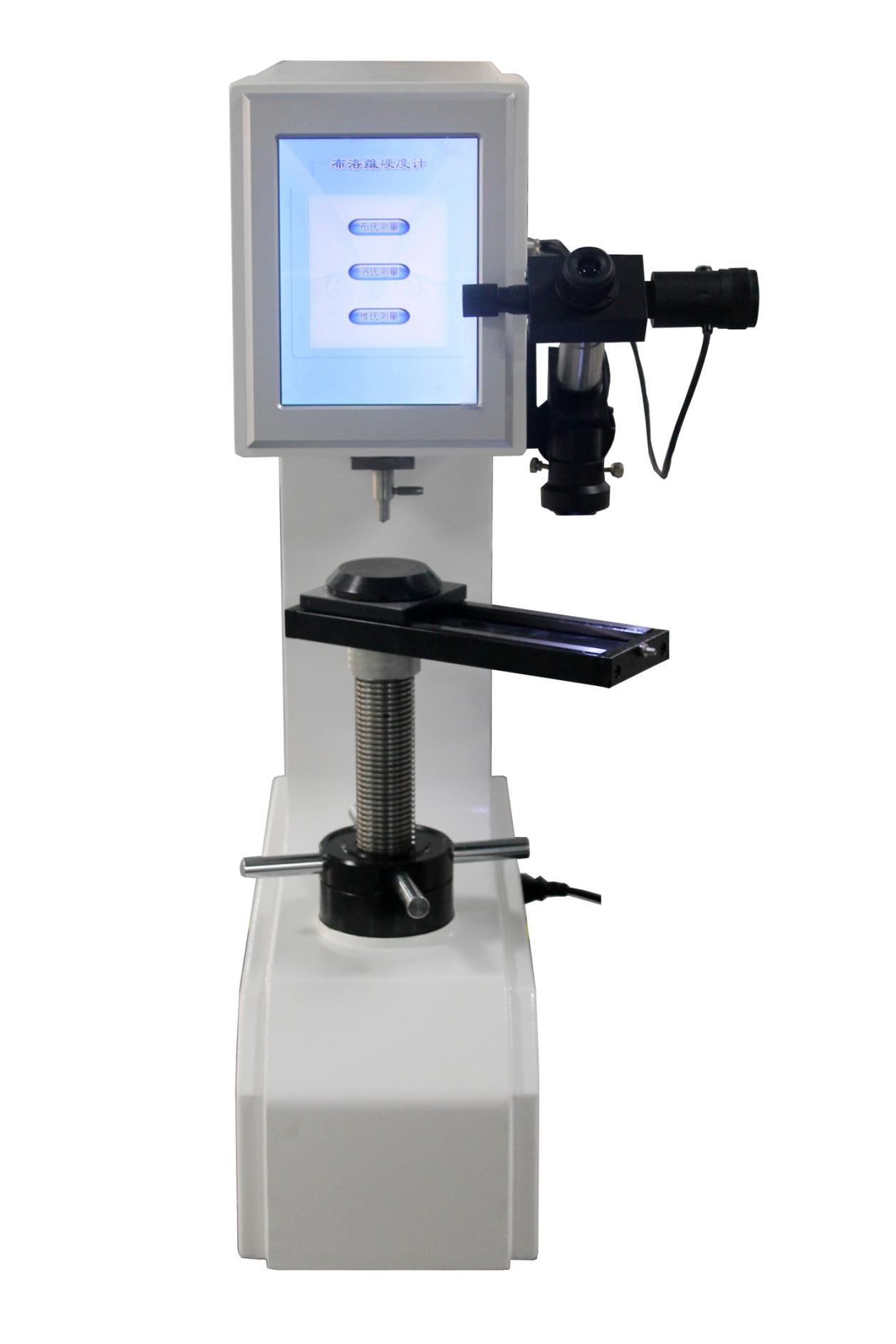

Senior Digital Brinell, Rockwell, Vickers Universal hardness testers series ( with Touch Screen) HBRV-187.5DX
Main features:
Technical specification:
| Model | HBRV—187.5DX |
| Test force | 5～187.5kgf |
| Brinell scale | HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25,HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales) |
| Hardness resolution | 0.1HBW |
| Rockwell scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV |
| Hardness resolution | 0.1HR |
| Vickers scale | HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales) |
| Hardness resolution | 0.1HV |
| Objective | 2.5X,5X(10X,20X optional) |
| Magnification of microscope | Brinell:37.5X, Vickers:75X |
| Hardness measurement | Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV |
| Data output | LCD display,U disk |
| Max height of specimen | Rockwell:220mm, Brinell Vickers:150mm |
| Head - wall distance | 200mm |
| Dimension | 560*260*800mm |
| Weight | About 70Kg |
| Power | AC220V+5%,50-60Hz |

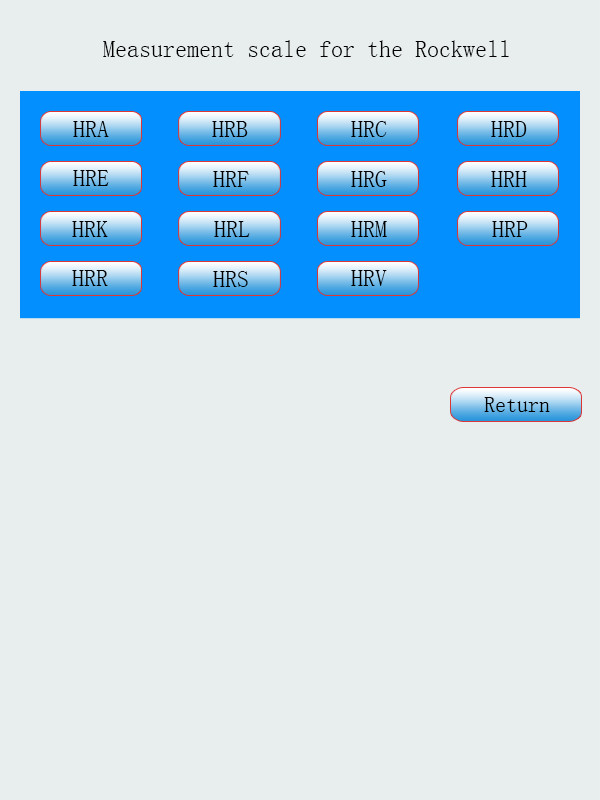

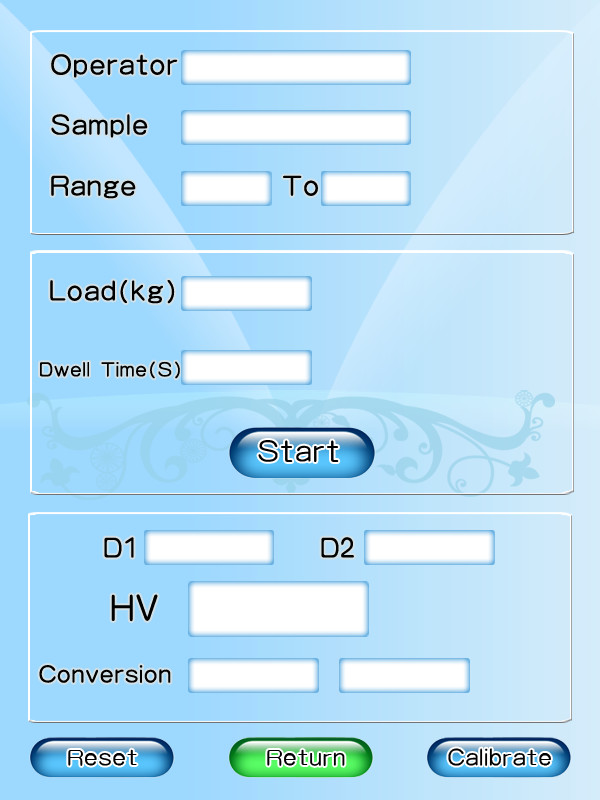

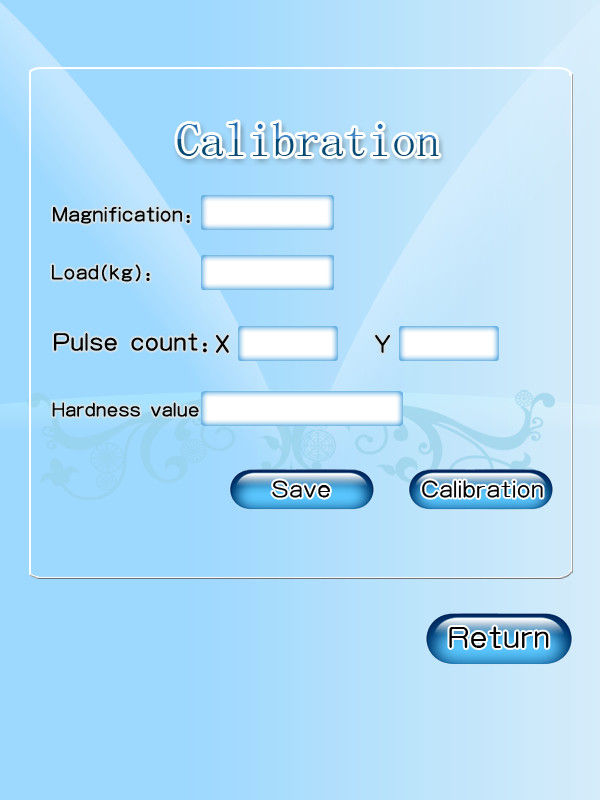

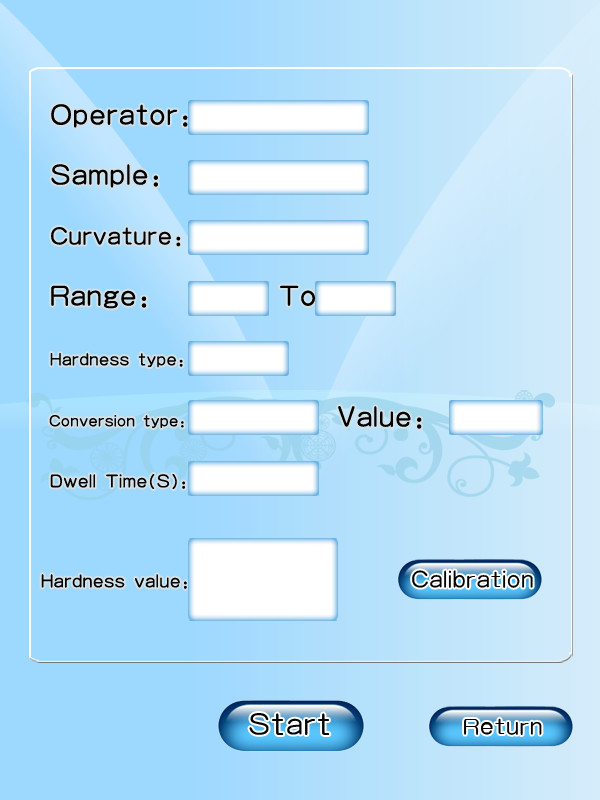

Operation interface

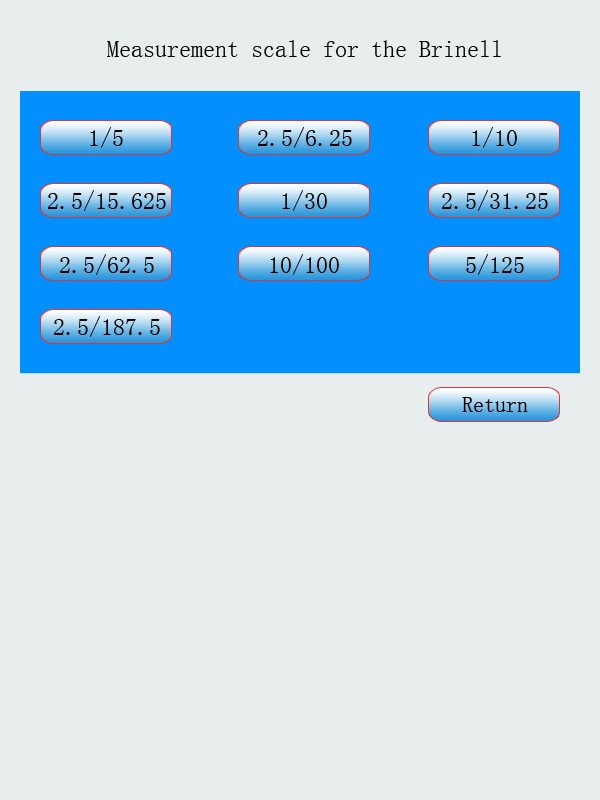

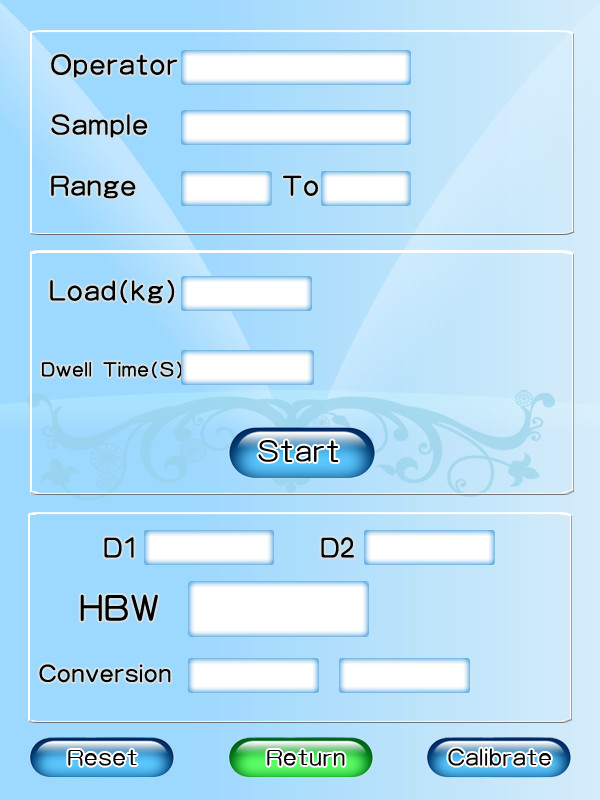

Brinell main interface
Standard Accessories (The Packing List):
| Item | Quantity | Item | Qunatity |
| Lighting (internal lighting, external lighting) | 1 | Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30) | 5 |
| Rockwell,Vickers diamond indenter | Each 1 | Ball indenter(φ1.5875,2.5,5mm) | 3 |
| Eyepiece(DHV-15X) | 1 | Objective(2.5X,5X) | 2 |
| Sliding test table | 1 | Large, medium, V-test sets | Each 1 |
| U memory disk, touch pen | Each 1 | Fuse 2A | 2 |
| Level | 1 | Regulating screw | 4 |
| Power cable | 1 | Dust bag | 1 |
| Certificate, warranty card | 1 | Manual | 1 |
HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.WeChat:19520504939
|
