Categories | Bus Surveillance Camera |
---|---|
Brand Name: | Vanwin Tracking |
Model Number: | VW-399A |
Certification: | CE/FCC/RoHS |
Place of Origin: | Shenzhen, China |
MOQ: | 5pcs |
Price: | negotiated |
Payment Terms: | Western Union, T/T, Paypal |
Supply Ability: | 5,000pcs per month; Private Mould HD CCD 700TV line / 960P AHD Front side View Bus / Truck cameras, Waterproof |
Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
Packaging Details: | Neutral carton box package by default |
Type: | Bus / Truck front cameras |
Sensor: | 1/3 Sharp Sony car camera |
Voltage: | DC12 / DC 24V |
Waterproof: | IP67 |
TV system: | PAL or NTSC |
Technology: | Infrared,AHD |
Connector: | 4 pin aviation, RCA, BNC connector |
Lens: | 3.6mm,2.8mm,2.1mm Fixed Lens |
Resolution: | 600TVL/700TVL; AHD 720P / 960P / 1080P |
Application: | For Trailer / Bus / Truck / Heavy Duty |
Company Info. |
Shenzhen Vanwin Tracking Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |
1080P Resolution Truck front View Camera Private Mold with Mounting
Bracket, 10IR Lights
The stand front view camera for heavy duty. It's viewing angle can be
easily adjusted allowing this camera to mount in a variety of
different ways. Normal and mirror image is switching. Camera comes
included with 4P connector, BNC or 6P connector for IP camera.
Main Features:
Technical parameters:
Image Sensor | 1/3" Sony Color CCD | |||
Horizontal Resolution | 700TV lines | |||
TV System | PAL/NTSC | |||
Effective Pixels | PAL:976(H) x 582(V) NTSC: 976(H) x 494(V) | |||
Minimum Illumination | Color 0.001Lux;IR ON 0 Lux | |||
S/N Ratio | ≥60dB(AGC OFF) | |||
DAY&NIGHT MODE | COLOR MODE/AUTO MODE/B&W MODE | |||
Auto Gain Control | AUTO/MANUAL,8 Value settings | |||
Back Light Comp | Back light compensation, high light suppression | |||
White Balance | Multi- mode selection | |||
Noise Reduction | 3D | |||
WDR | High/Middle/Low | |||
Lens | 2.8MM | |||
Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) | |||
Video Out | 1.0V p-p 75, BNC connector | |||
Control mode | OSD manual,support 8 languages | |||
Synchronization System | Internal | |||
Scanning System | 2:1 Interlaced | |||
PRIVACY | 8 areas,freely set up position,size and 8 colors | |||
Motion Detection | Grid tracking,4 areas,freely set up positions and size | |||
IR LEDs | 10PCS | |||
IR distance | 5~10M | |||
Waterproof level | IP66 | |||
Working temperature | -20°C~+70°C | |||
Power supply | DC12V±10% | |||
Power consumption | ≤3W | |||
Dimension | 72*50*58mm |

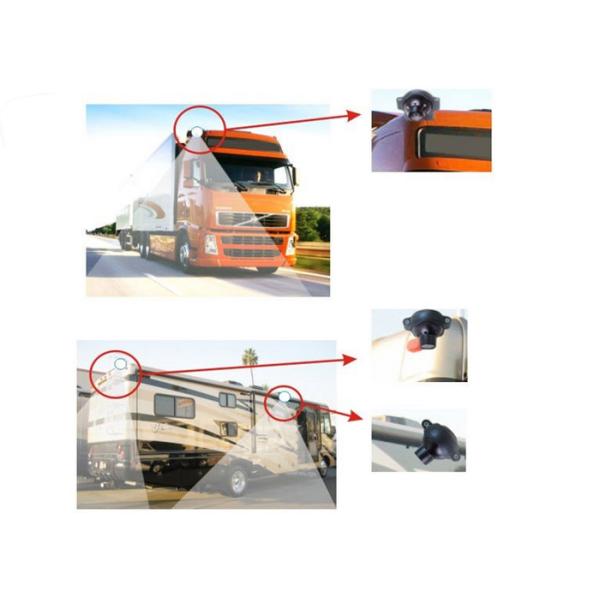

Application:
How to install?
![]() |
