5.5 Inch High Torque BLDC Servo Hub Motor For AGV

Categories Brushless DC Motor
Brand Name: Bextreme Shell
Model Number: ZM2156A01
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T, Paypal
Rated voltage: 24/36/48VDC
Rated power: 100-230W
Max efficiency: ≥80%
Max torque: ≥10Nm
MAX rotating speed: customizable
Waterproof Class: IP54
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

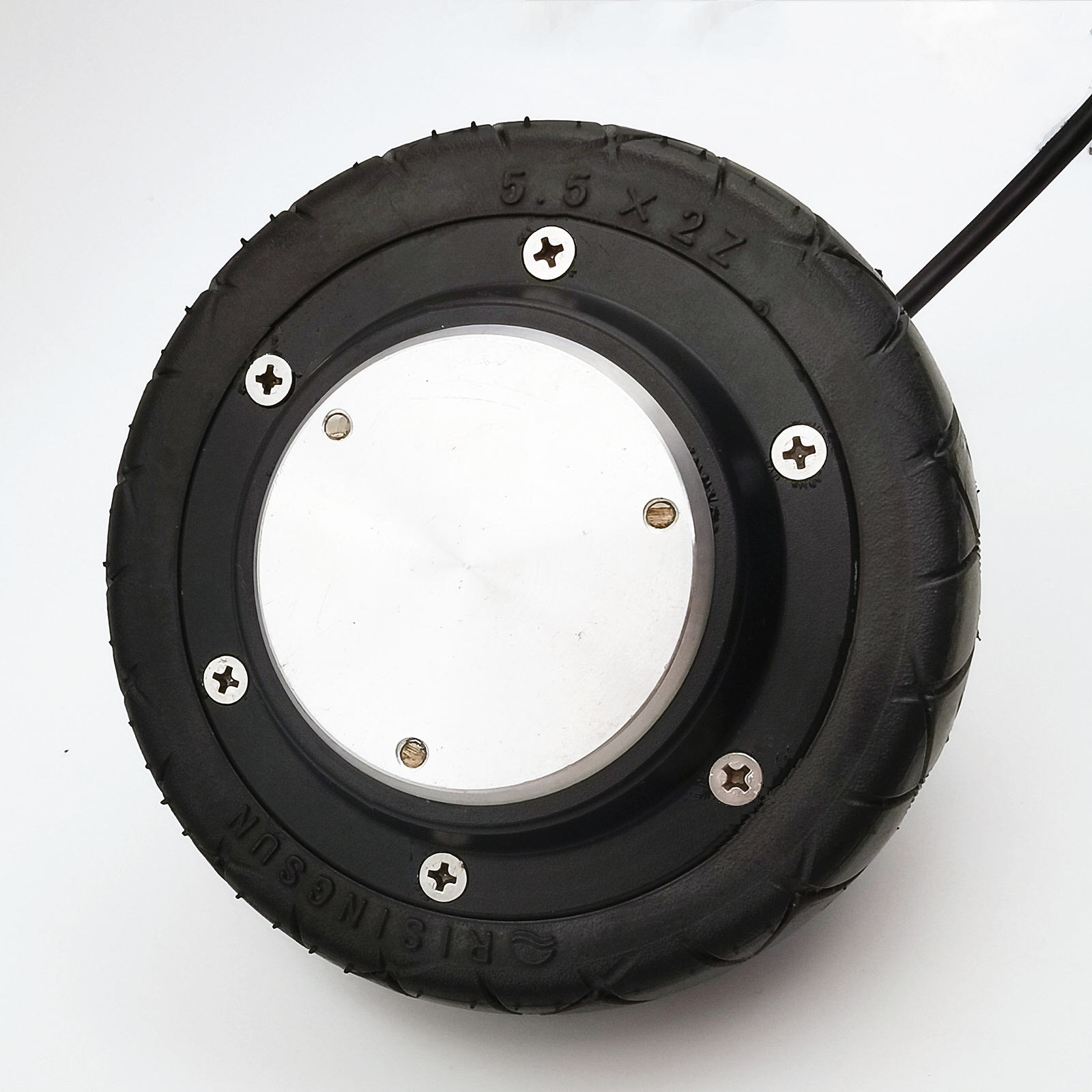

5.5 Inch High Torque BLDC Servo Hub Motor For AGV

5.5 inch high torque BLDC servo motor,servo hub motor for AGV with encoder

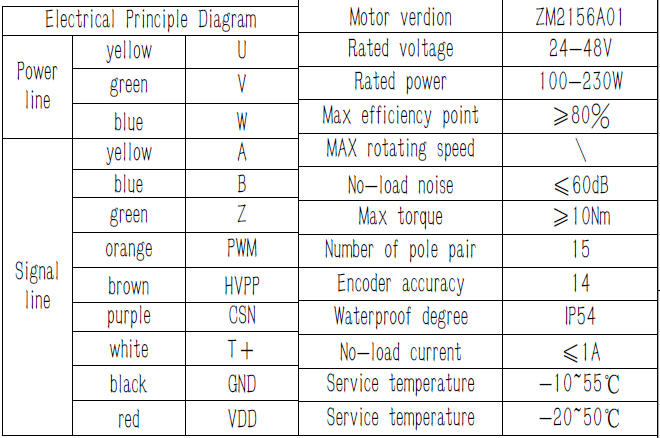

Motor performance parameter

ItemMotor ModelZM2156A01
1Rated voltage24/36/48VDC
2Rated power100-230W
3Max efficiency≥80%
4MAX rotating speedcustomizable
5No-load noise≤60dB
6Max torque≥10Nm
7Number of pole pair15
8Encoder accuracy14
9Waterproof ClassIP54
10No-load current≤1A
11Service temperature-10~55℃
12Wheel tireanti-static tire

Applications:

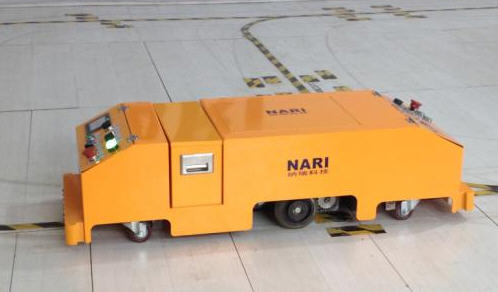

1: AGV hub motor

2: Robot hub motor

3: Automatic Walking robot



Our hub servo motor advantage:

  • Self R & D, have own patent and great market competitiveness

  • Built-in high precision encoder 12-21 bits optional, also can be customized, electromagnetic brake, high load carrying etc
  • Simple structure, easy installation and high cost performance
  • High precision, high power density, low noise
  • The motor and the outer tyre are integrated, beautiful design
  • 4-15 inch optional, power: 50-2KW optional, accept OEM/OEM for all models

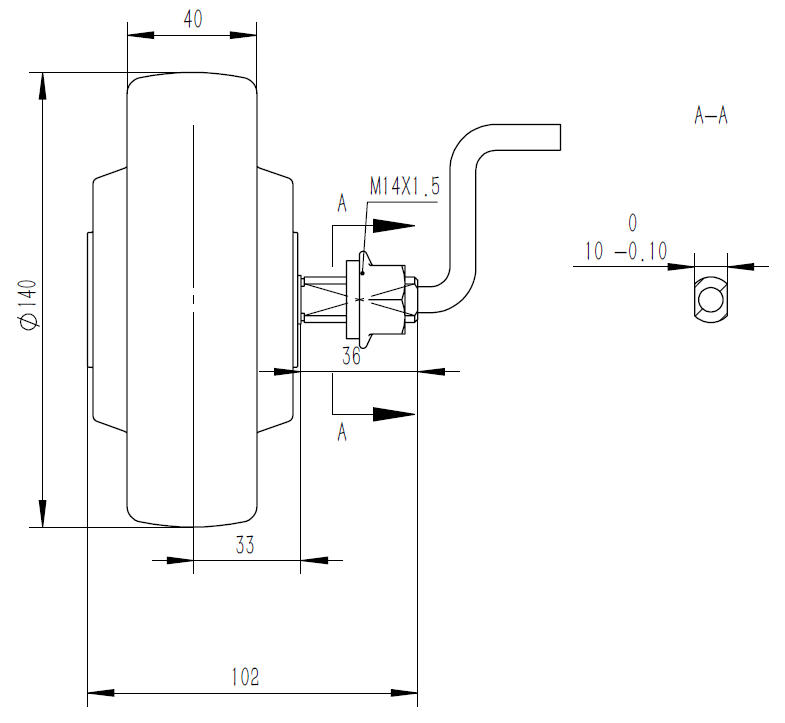

Outline dimension
